Fliegl Mischmeister FA - Mixing concrete, screed & mortar, self-loading, clean discharge

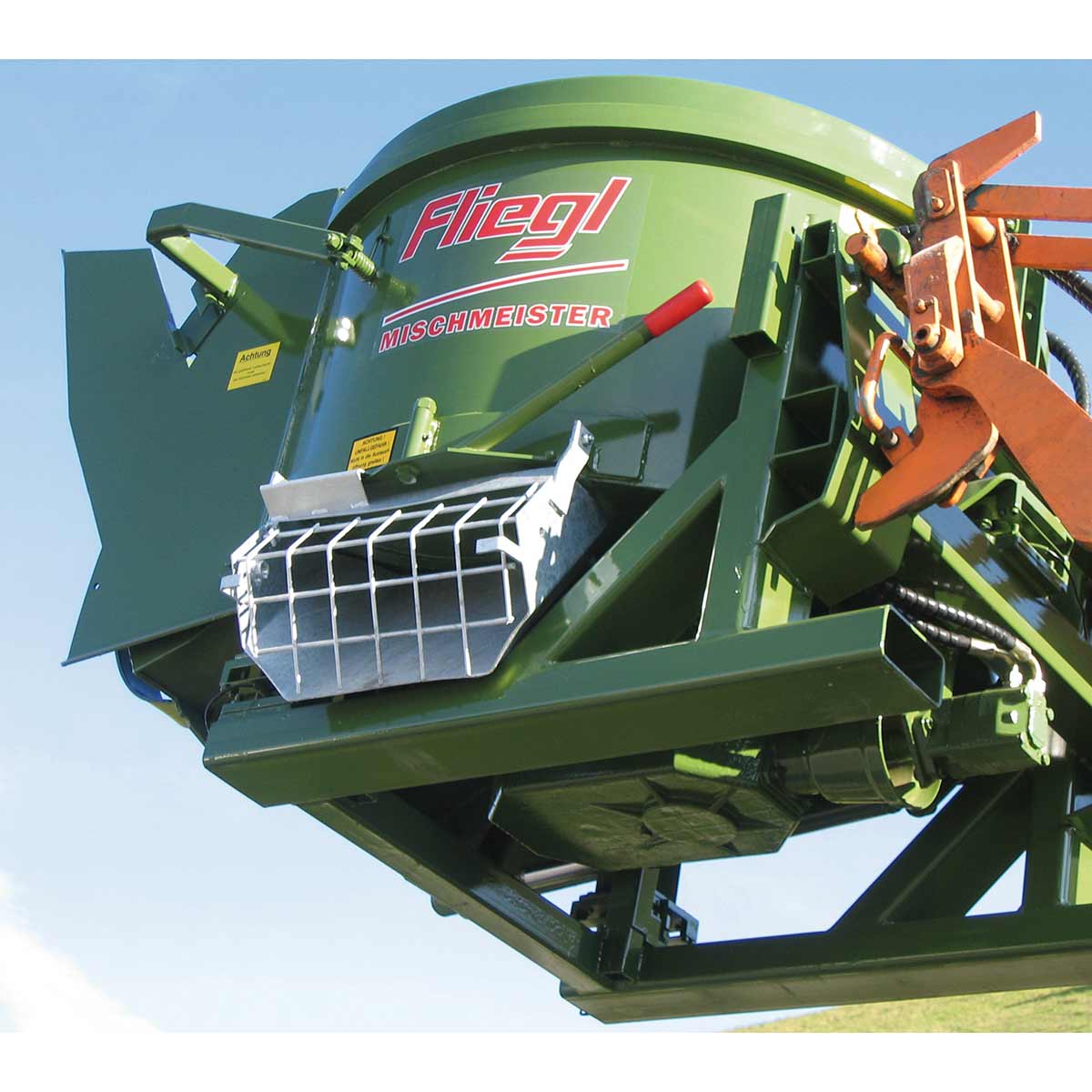

TheFliegl mixing master FA is the provenPan/disc concrete mixer for construction sites, building yards and agriculture. Thanks toAutomatic filling system andSelf-loading device you fill, mix and empty in a single operation - efficiently with just one person. Spring-loaded mixing arms and the adjustable mixing arm ensureHomogeneous mixture; theRemovable discharge slide enables controlled, clean loading. Attachment optionally onThree-point cat. II or optionally toEuronorm/wheel/telescopic loader attachment. :contentReference[oaicite:0]{index=0}

Your advantages at a glance

• Load & mix yourself: Automatic filling system, self-loading device andMixing while travelling save time and equipment. :contentReference[oaicite:1]{index=1}
• Consistently good quality: Spring-loaded mixing arms, adjustable mixing arm, side wall scraper. contentReference[oaicite:2]{index=2}
• Robust & low maintenance: Mixing element bearing protected against dirt, 2-component paint, protective grille made of spring steel. contentReference[oaicite:3]{index=3}
• Practical drive: PTO viaCardan shaft with overload protectiongear ratio1:11. :contentReference[oaicite:4]{index=4}

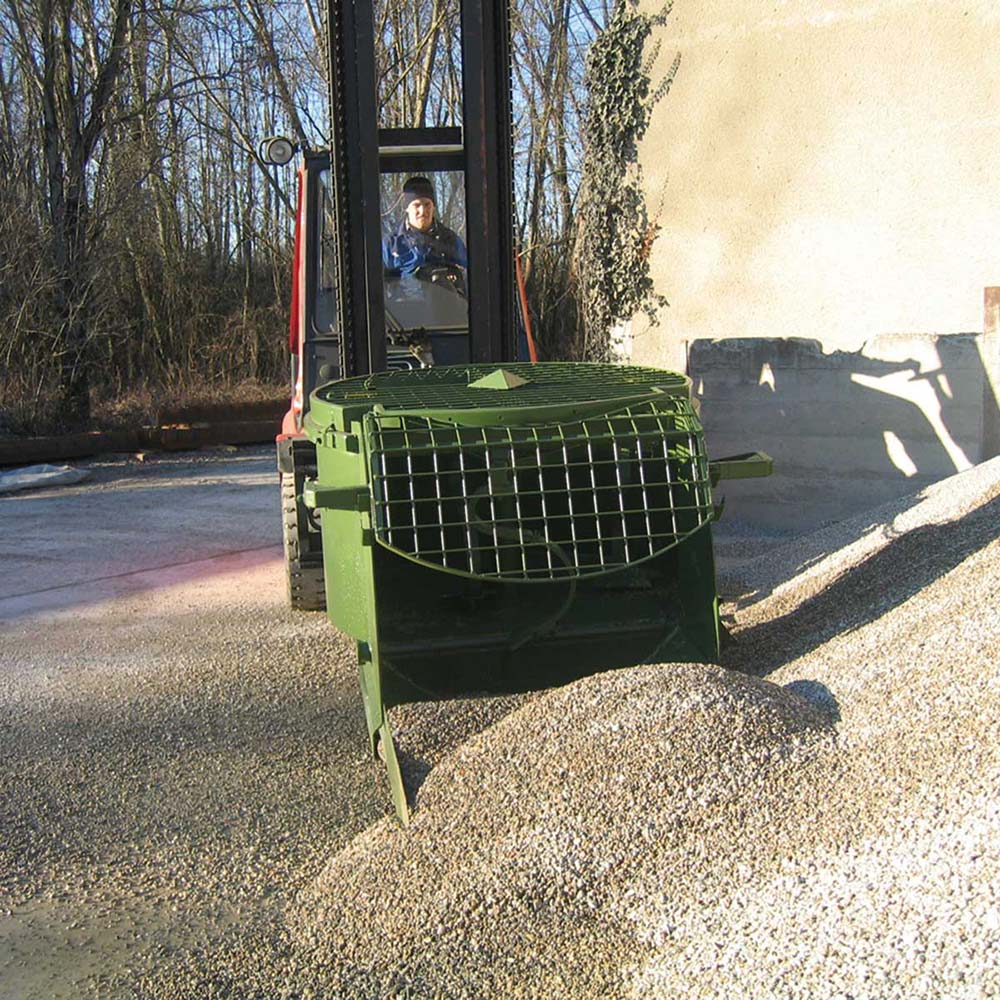

• Flexible in cultivation: Three-point Cat. II (3 adjustment options) or optional loader mount; additionallyForklift mount 152×72 mm. :contentReference[oaicite:5]{index=5}

Typical areas of application

• Mixing ofConcrete, screed, mortar andCereals/fertilisers (depot & agriculture)
• Yard and path construction, foundation work, paving & gardening

Variants & performance data

*Guide values depending on material, consistency and application conditions. Data according to manufacturer's data sheet. contentReference[oaicite:6]{index=6}

Technical features

• Lower link support Cat. II (3 positions); optional loader mount (Euronorm/wheel loader/telescopic loader) at extra charge. contentReference[oaicite:7]{index=7}
• Cardan shaft with overload protection; Drive shaft with 70 mm fine gearing. contentReference[oaicite:8]{index=8}
• Removable discharge slide; optionally swivelling and with additionalOutlet slide left. :contentReference[oaicite:9]{index=9}
• Forklift pick-up (tab size 152×72 mm) integrated. contentReference[oaicite:10]{index=10}

Accessories (optional)

• Loader mount (Euro standard/wheel loader/telescopic loader)
• Run-out slideswivelling - additionalOutlet slide left
• Lower link extension (FA 400/600)
• Hydraulic drive incl. hoses
• Bagging device for clean filling

Accessories according to Fliegl parts list; equipment items additionally described on the FA 400 product page. contentReference[oaicite:11]{index=11}

Scope of delivery

• FlieglMixing master FA in the selected size (400/600/800/1000 litres)
• Protective grid, agitator, discharge chute
• Operating & maintenance instructions

Safety & Notes

• Only with suitablePTO drive shaft (overload protection); observe the stability and load capacity of the tractor/loader.
• Wear PPE; keep protective grille closed; no persons in the danger zone.
• Performance values and weights depending on version/accessories; subject to technical changes.

Why the FA mixing master? A device forFilling-mixing-emptyingstable mixing process and flexible attachment solutions - the economical all-rounder for concrete, screed & mortar.
