Filling device for ZSA 10kg container Ø210-240mm - 17036
Regular price:
€222.85
Prices exclude VAT.
Free shipping
Product number:
BL10631
Skip product gallery
Zubehör / Ersatzteile

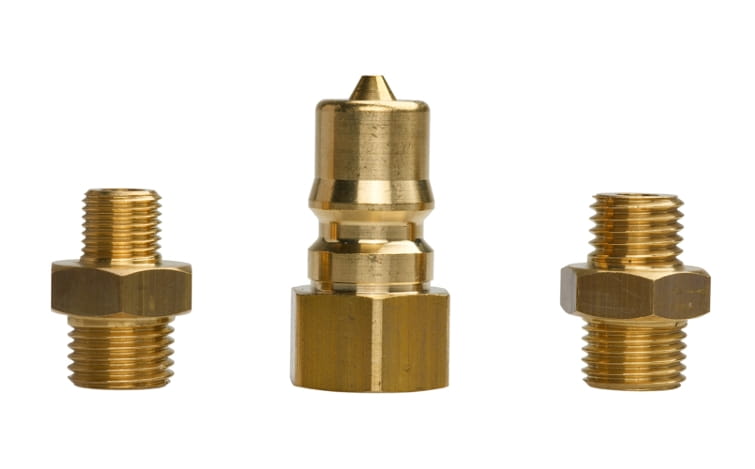

Plug nipple for coupling Rectus type 72-G 1/4" i-with 2 adapters 17044950
Regular price:
€50.82
BL10646
Hersteller:
Pressol quick-connect nipple for Rectus coupling type 72-G 1/4"
Regular price:
€31.91
S001728
Hersteller:
Available, delivery time: 1-3 days
Description
Filling device for ZSA 10kg container Ø210-240mm - 17036
| Pumped media | Lubricating greases up to NLGI 2 |
| Suction pipe length(mm) | 510 |
| Grease connection on discharge side | Rectus coupling, type 72, for plug nipple(17 044) |
| Hose length(mm) | 1500 |
| Grease delivery | by means of hand lever |
| Delivery volume/stroke (cm³) | 30 |
| Delivery pressure up to (bar) | 8 |
| Grease follower piston | for 10 kg containers |
| Ø grease follower piston(mm) | 210 - 240 |
| Surface treatment | All steel parts are galvanised |
| Pump head | Impact-resistant die-cast zinc |
| Pump body | steel |

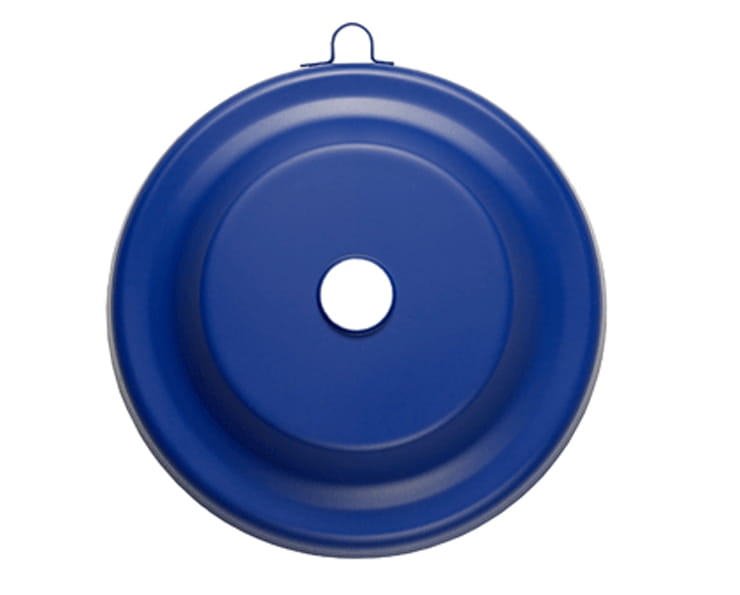

| Paint finish dust cover | blue, RAL 5010 |
| Weight(kg) | 3,58 |
