EP Electric Pallet Truck - Load capacity 1500kg / Fork length 1150mm Copy

Description

EP Electric Pallet Truck - Load capacity 1500kg / Fork length 1150mm Copy

EP electric pallet truck - 1,500 kg load capacity | fork 1,150 mm

TheEP Electric pallet truck is the efficientLow lift truck for storage, dispatch and production. With1,500 kg load capacity and1,150 mm Forks it moves Euro and industrial pallets with minimum effort - ideal for narrow aisles, loading ramps and daily material flow. The electric travel drive ensures swift handling, theElectrical stroke (depending on version) for relaxed lifting.

Your advantages at a glance

  • Strong & compact: 1,500 kg nominal load - also suitable for heavy pallets.
  • Productive flow of goods: Electric drive for fast, fatigue-free manoeuvring.
  • Delicate lifting: Gentle lifting/lowering - gentle on goods and pallet.

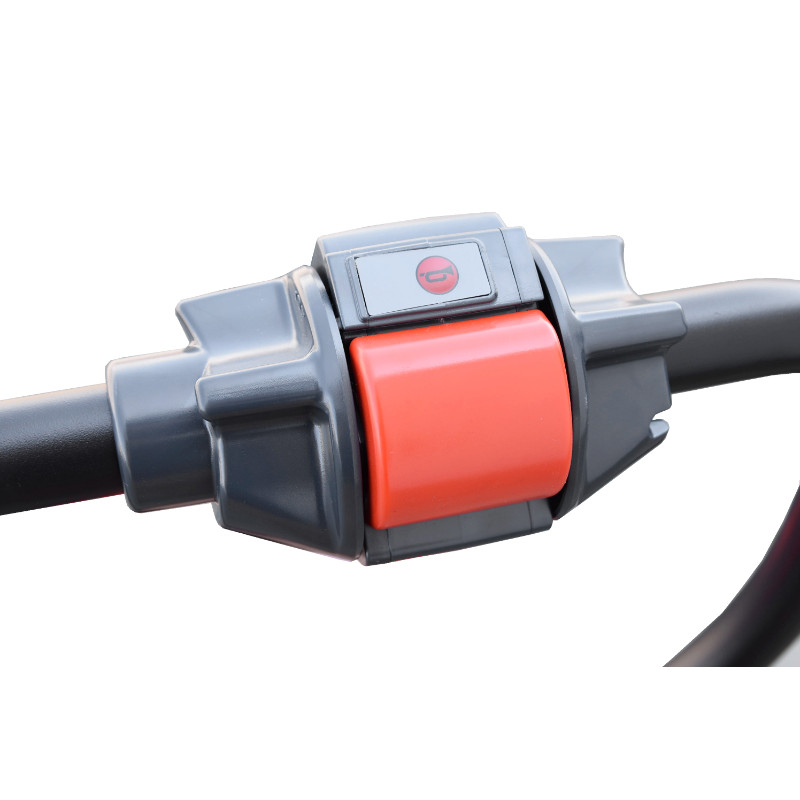

  • Ergonomic & safe: Drawbar withTurtle/crawling gearEmergency stop and reverse button (belly button) - user-friendly, safe in confined spaces*.
  • Low maintenance: Robust drive unit;optional with integrated charging unit and low-maintenance battery (e.g. Li-Ion).*

*Equipment features dependent on model/version.

Typical areas of application

  • Incoming/outgoing goods, order picking, dispatch
  • Storage & retrieval in rack aisles, ramp work
  • Production & internal logistics

Technical data (brief overview)

Load capacity1,500 kg
Fork length1,150 mm (ideal for EUR pallets)
Fork outer dimensionapprox. 540 mm or 685 mm (depending on model)
Stroke rangeapprox. 85-200 mm (typical low lift range)
Driveelectric (driving),Stroke electrical depending on version
Power supplyIntegrated battery, external/integrated charger(depending on model)
OperationDrawbar control with creep speed/emergency stop(depending on model)
TyresLoad/steering castors, optional tandem castors(selectable depending on material)

Scope of delivery

  • EPElectric pallet truck, 1,500 kg, fork 1,150 mm
  • Operating instructions
  • Depending on the version: Battery & charger

Options & accessories

  • Fork outer dimension 540 mm (EUR) or 685 mm (industrial pallets)
  • Tandem load rollers (e.g. for uneven floors, ramps)
  • Different roller materials (PU, nylon, rubber) for each application
  • Spare battery / quick charger (depending on model)

Safety & practical information

  • Only operate on stable, level floors; observe the load-bearing capacity of the pallet.
  • Centre the load's centre of gravity; constantly check visibility and surroundings.
  • Regular maintenance (castors, brakes, battery, plugs) according to instructions.

Why this EP electric pallet truck? 1.5 tonne capacity, 1,150 mm forks and electric support for fast, safe handling - the economical solution for modern intralogistics.
