Elmag WFM 310 Servodrive tool milling machine – 50 mm drilling capacity, servo drive, digital 3-axis display
€44,290.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Elmag WFM 310 Servodrive tool milling machine – 50 mm drilling capacity, servo drive, digital 3-axis display
WFM 310 Servodrive tool milling machine - precision, power and intelligent control
TheWFM 310 Servodrive tool milling machine stands for highest precision, maximum performance and perfect operability. With aDrilling capacity in steel of 50 mm and oneMilling capacity up to 125 mm it is the ideal choice for workshops, training centres and professional toolmaking. Thanks to the most modernServo drive technology anddigital 3-axis position indicator it fulfils all requirements for accuracy, ergonomics and efficiency.
Elmag Start Up Service - immediately ready for operation
TheWFM 310 Servodrive will be organised within theElmag Start Up Service completemounted, de-preserved (degreased), with oil filling and aTest run delivered under. This means that the machine isFully operational - No additional installation or commissioning work!
Precision and ergonomics in perfection
The Servodrive series combines first-class technology with user-friendly design. Infinitely variable speed control, precision ball-bearing spindles on all axes and a swivelling control panel enable ergonomic working with maximum precision. The integrated central lubrication system and the coolant tank housed in the cast iron base ensure low-maintenance continuous operation.
Advantages of the WFM 310 Servodrive tool milling machine
- ✔Drilling performance in steel: 50 mm
- ✔Milling performance face milling cutter: 125 mm /End mill: 40 mm
- ✔Elmag Start Up Service: delivered ready for operation incl. oil filling & test run
- ✔Servo drive on all axles - X/Y/Z with automatic feed and rapid traverse
- ✔Ball screws on all axes for maximum precision

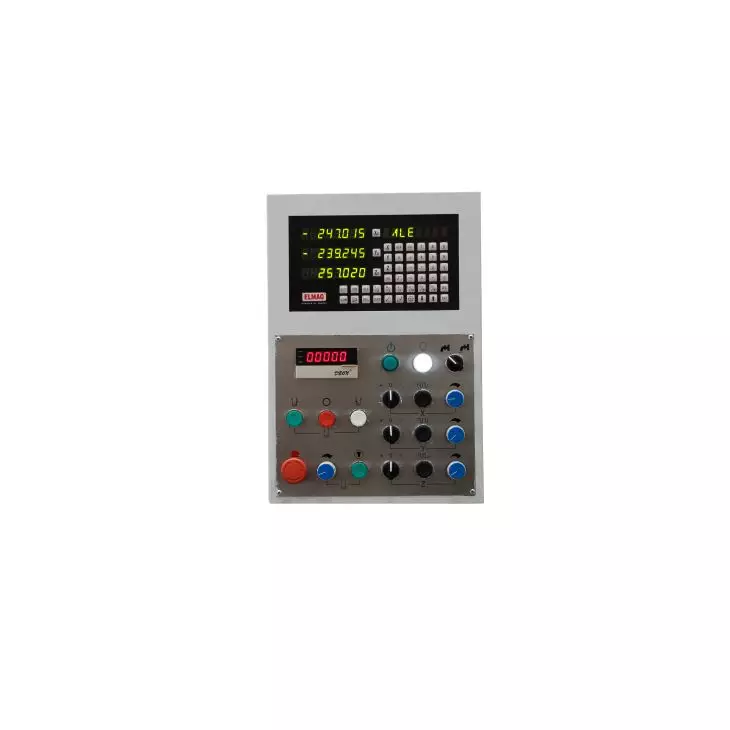

- ✔Digital 3-axis position indicator for precise customised work
- ✔LED milling table lighting for optimum visibility
- ✔Stepless speed control (40 - 2000 rpm)
- ✔Swivelling milling head ± 45° with adjustable drill sleeve
- ✔Horizontal and vertical milling possible
- ✔Digital speed display and potentiometer control
- ✔Emergency stop button / zero-voltage release for maximum safety
Technical data - WFM 310 Servodrive tool milling machine
| Technical feature | Value / Description |
|---|---|
| Drilling performance in steel | 50 mm |
| Milling performance face milling cutter | 125 mm |
| Milling capacity end mill | 40 mm |
| Spindle holder (turning spindle) | ISO 40 |
| Speed range | 40 - 2000 rpm (infinitely variable) |
| Quill stroke | 65 mm |
| Milling table grooves / width x distance | 6 / 14 x 63 mm |
| Vertical table grooves / width x distance | 3 / 14 x 63 mm |
| Spindle projection | 180 - 580 mm |
| Table load capacity | 200 kg |
| Milling head swivelling range | ± 45° |
| Quill distance table | 50 - 450 mm |
| Horizontal spindle distance table | 145 - 545 mm |
| Milling table surface | 800 x 400 mm |
| Table path X x Z | 500 x 400 mm |
| Vertical table surface | 1020 x 225 mm |
| X/Y/Z feeds | 10 - 1200 mm/min (infinitely variable) |
| Engine power | 3700 W |
| Torque X/Y/Z | 7.7 / 7.7 / 1.7 Nm |
| Mains connection | 400 V / 50 Hz |
| Cubature | 800 x 400 x 450 mm |

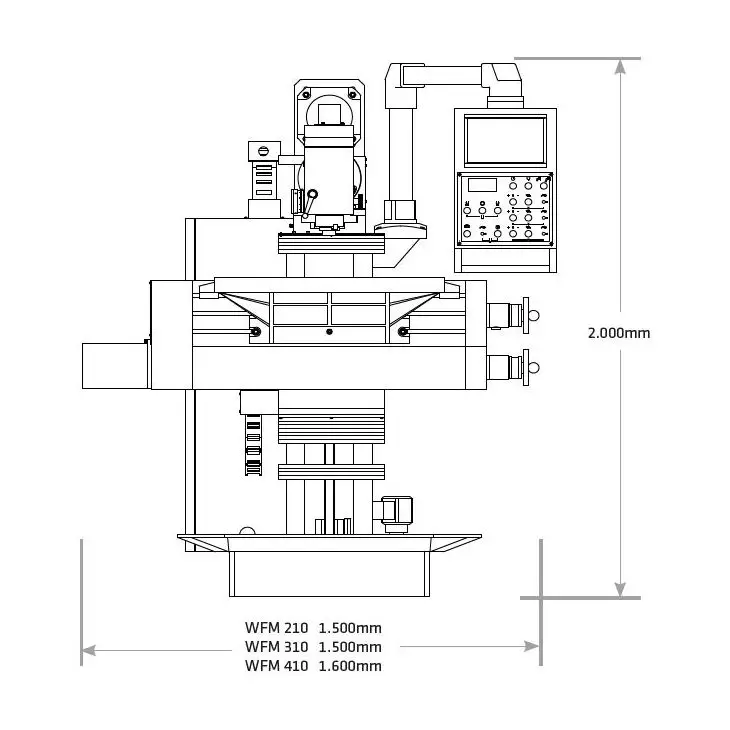

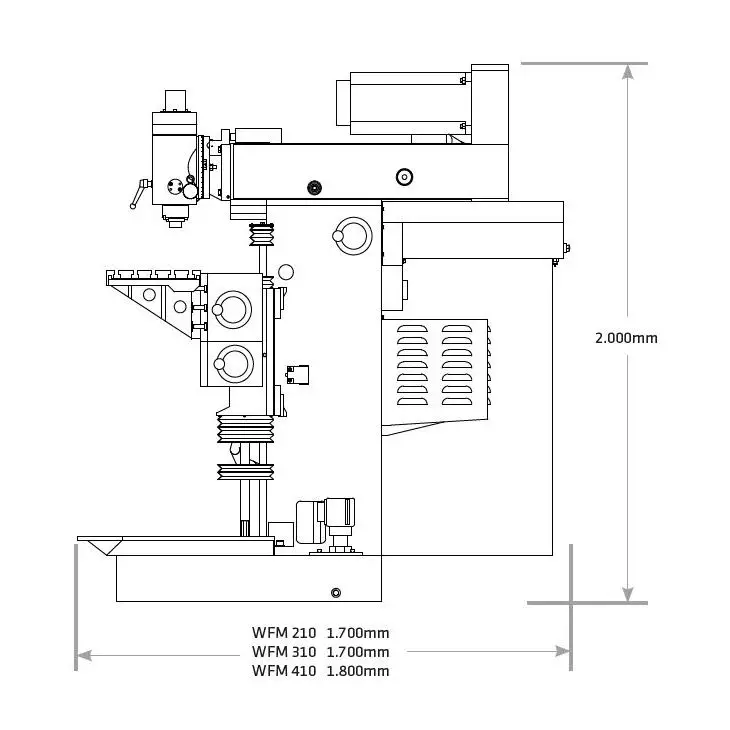

| Dimensions (L x W x H) | 1500 x 1700 x 2000 mm |
| Weight | 1550 kg |
Special features
- Elmag Start Up Service - ready for operation on delivery
- Servo drive with automatic feed and rapid traverse on all axles
- Centralised lubrication for low-maintenance operation
- Digital speed display and position control
- Solid cast construction for maximum rigidity and smooth running
- Perfect for toolmaking, mechanical engineering and technical training
Conclusion
TheWFM 310 Servodrive tool milling machine combines maximum precision, modern servo technology and maximum operating convenience. With theElmag Start Up Service it is fully operational on delivery - an investment in reliability and performance for every professional metalworker.
ELMAG - your partner for precise, powerful and reliable machine tools.
