Elmag WFM 210 Servodrive tool milling machine – 50 mm drilling capacity, servo drive, Elmag Start Up Service, digital 3-axis display
WFM 210 Servodrive tool milling machine - precision meets performance
ThePREMIUM tool milling machine WFM 210 Servodrive combines maximum precision, state-of-the-art servo technology and user-friendliness at an industrial level. With aDrilling capacity in steel of 50 mm and oneMilling capacity up to 125 mm it is the ideal choice for professional workshops, training centres and toolmaking. Thanks to thedigital 3-axis position indicator and thestepless servo drive the WFM 210 Servodrive impresses with its accuracy, efficiency and convenience - perfect for demanding metalworking.
Elmag Start Up Service - Ready for operation on delivery
The machine isfully assembled, de-preserved (degreased), with oil filling andTest run carried out delivered. Due to theElmag Start Up Service is theWFM 210 Servodrive Ready for immediate use - no time-consuming initial commissioning required!
Precision and ergonomics in perfection
TheServodrive series stands for durable machines with exceptionally smooth running and precise positioning accuracy. Recirculating ball screws on all axes (X/Y/Z), infinitely variable feeds and an ergonomically designed control panel make working particularly convenient. The integrated central lubrication system ensures a long service life and minimises maintenance requirements. Thanks to the infinitely variable speed control and the digital speed display of the milling spindle, the machine can be precisely adapted to the workpiece material.
Advantages of the WFM 210 Servodrive tool milling machine
- ✔Drilling performance in steel: 50 mm
- ✔Milling performance face milling cutter: 125 mm /End mill: 40 mm
- ✔Elmag Start Up Service - Fully assembled and ready for operation
- ✔Digital 3-axis position indicator for maximum precision
- ✔Automatic feed and rapid traverse on all axes (X/Y/Z)
- ✔Ball screw andContinuously variable servo drives for smooth running
- ✔Digital speed display with potentiometer control
- ✔LED milling table lighting for perfect vision
- ✔Integrated cooling system in a solid cast iron base
- ✔Vertical and horizontal operation possible
- ✔Swivelling milling head ±45° andstepless ±90° degree scale
- ✔Emergency stop button and zero-voltage release for maximum safety
Technical data - WFM 210 Servodrive tool milling machine
| Technical feature | Value / Description |
|---|---|
| Drilling performance in steel | 50 mm |
| Milling performance face milling cutter | 125 mm |
| Milling capacity end mill | 40 mm |
| Spindle holder (turning spindle) | ISO 40 |
| Speed range | 40 - 2,000 rpm (infinitely variable) |
| Quill stroke | 65 mm |
| Milling table grooves (width x distance) | 5 / 14 x 63 mm |
| Vertical table grooves (width x distance) | 3 / 14 x 63 mm |
| Spindle projection | 180 - 485 mm |
| Table load capacity | 160 kg |
| Milling head swivelling range | ± 45° |
| Quill distance table | 50 - 450 mm |
| Horizontal spindle distance table | 145 - 545 mm |
| Milling table surface | 750 x 320 mm |
| Table path X x Z | 405 x 305 mm |
| Vertical table surface | 890 x 225 mm |
| X/Y/Z feeds | 10 - 1,000 mm/min (infinitely variable) |
| Engine power | 3.700 W |
| Torque X/Y/Z | 7.7 / 7.7 / 1.7 Nm |
| Mains connection | 400 V / 50 Hz |
| Cubature | 750 x 320 x 450 mm |

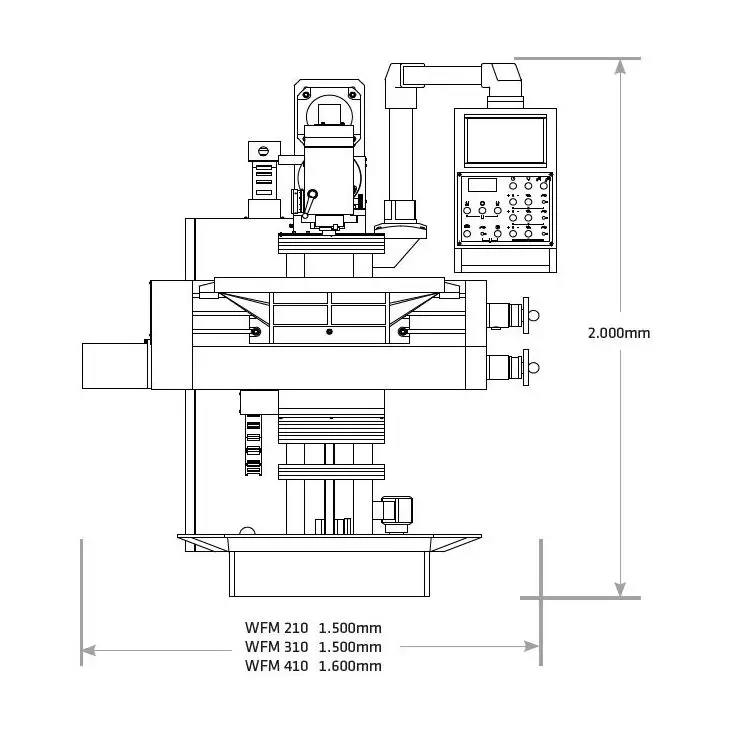

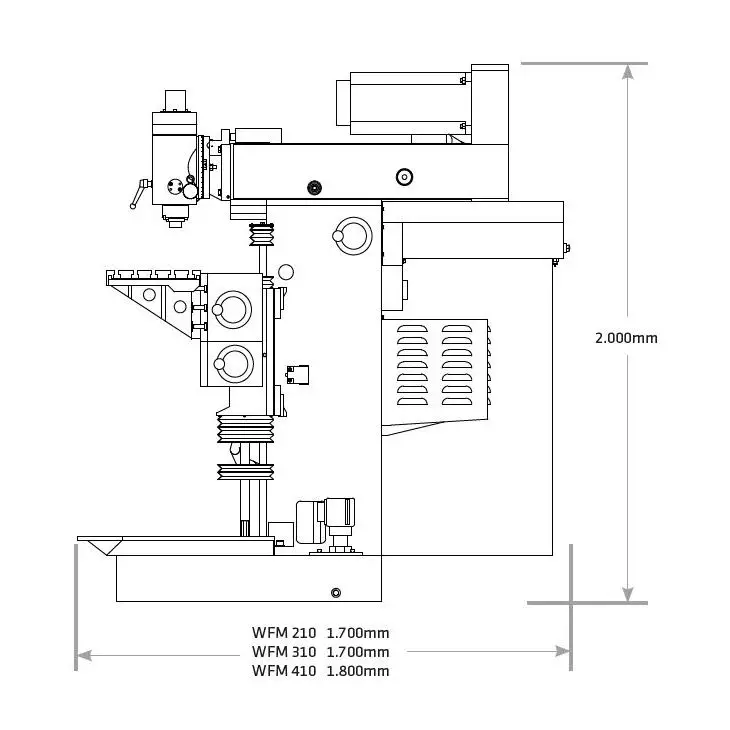

| Dimensions (L x W x H) | 1,500 x 1,700 x 2,000 mm |
| Weight | 1,450 kg |
Special features
- Elmag Start Up Service: delivered ready for operation with oil filling and test run
- Servo drive on all axes - precise, stepless and low-maintenance

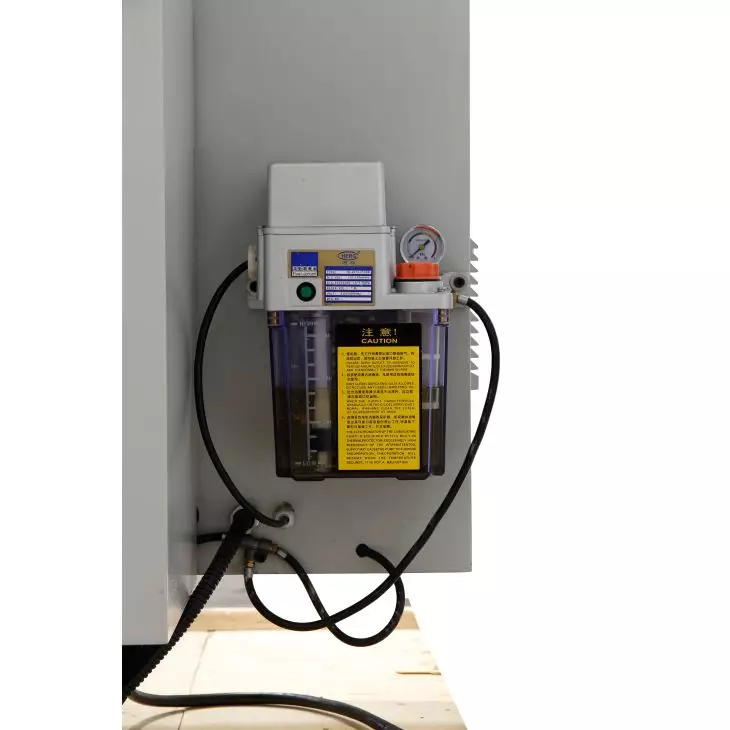

- Automatic centralised lubrication for long-lasting performance

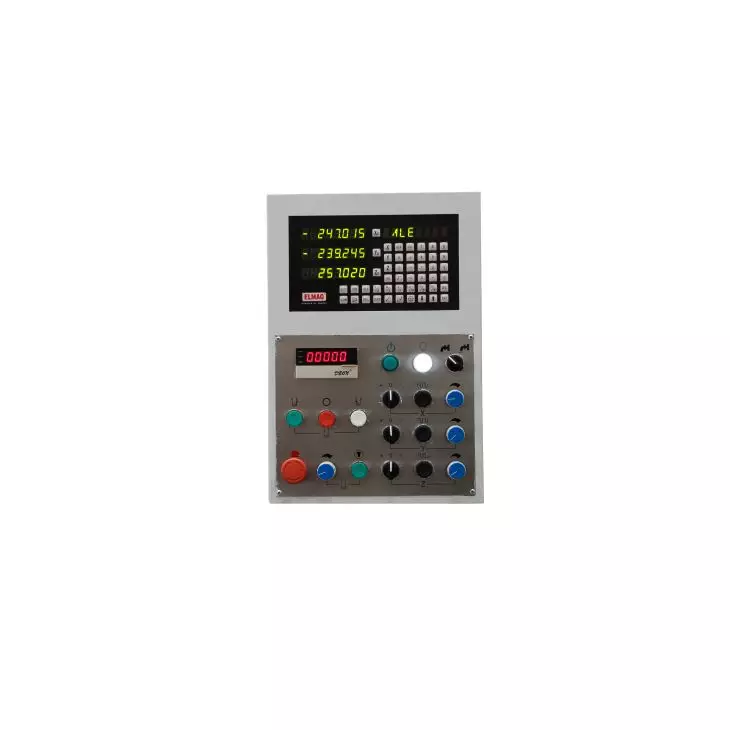

- Ergonomic control panel with speed and feed adjustment
- Integrated LED work lighting and cooling system
- Ideal for mechanical engineering, toolmaking, maintenance and training
Conclusion
TheWFM 210 Servodrive tool milling machine is the perfect combination of precision, ease of use and performance. Thanks toServo drives, digital position indicator and theElmag Start Up Service it is immediately ready for use - a real highlight for professional users in trade and industry.
ELMAG - quality, precision and innovation for demanding metalworking.
