Elmag Universal Milling Machine UFM 125 GT Servodrive – 125 mm milling capacity, servo drive
€31,240.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Elmag Universal Milling Machine UFM 125 GT Servodrive – 125 mm milling capacity, servo drive
Universal milling machine UFM 125 GT Servodrive - top-class precision and performance
TheUniversal milling machine UFM 125 GT Servodrive is a professional machine tool for the highest demands in metalworking, toolmaking and mechanical engineering. It impresses with its robust construction, its exact precision and the modernServo drive on all axles for infinitely variable feed rates.
Elmag Start Up Service - delivered ready for immediate use
With theElmag Start Up Service the machine is completelyMounted, de-preserved (degreased), filled with oil and aTest run subjected. As a result, theUFM 125 GT Servodrive on deliveryFully operational and ready for immediate use - without any additional assembly work.
Maximum precision - high-quality components for lasting accuracy
The combination ofstepless servo drive,digital 3-axis position indicator and onestable grey cast iron construction ensures precise results even with high workpiece weights. Thanks to hardened and ground guides, automatic central lubrication and a swivelling milling head, the machine is suitable forVertical as well as horizontal milling work ideally suited.
Advantages of the universal milling machine UFM 125 GT Servodrive
- ✔Milling performance face milling cutter: 125 mm /End mill: 40 mm
- ✔Elmag Start Up Service: Fully assembled, filled and tested
- ✔Stepless drive of the X/Y/Z axis via powerful servo motors
- ✔Rapid traverse on all axes for fast tool positioning

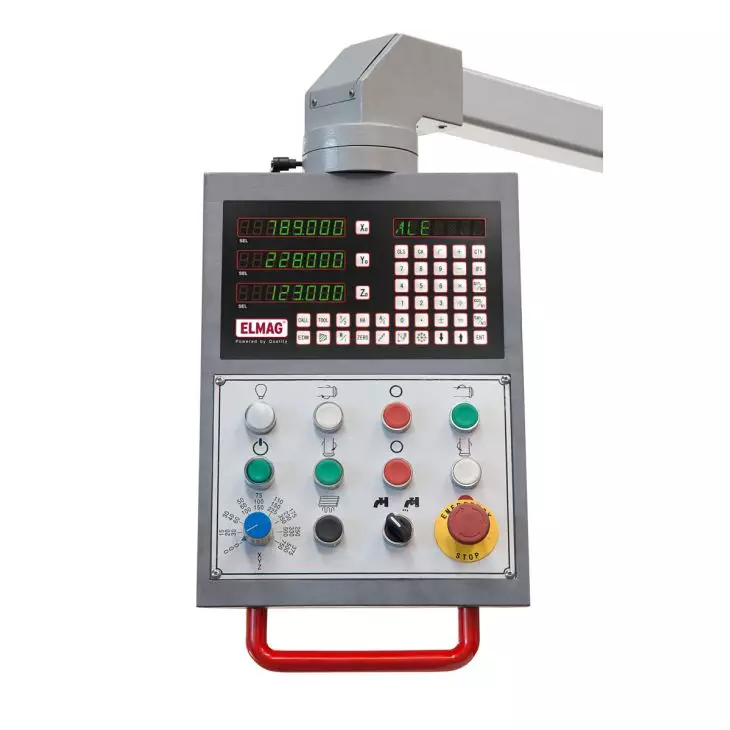

- ✔Digital 3-axis position indicator for precise customised work
- ✔Swivelling milling head ±180° for flexible processing
- ✔Automatic centralised lubrication for long-lasting guideways
- ✔Hardened gear wheels andGround bed guides
- ✔Sturdy, torsion-resistant cast construction with support column
- ✔LED milling table lighting for optimum illumination
Technical data - Universal milling machine UFM 125 GT Servodrive
| Technical feature | Value / Description |
|---|---|
| Milling performance face milling cutter | 125 mm |
| Milling capacity end mill | 40 mm |
| Spindle holder (turning spindle) | ISO 40 |
| Vertical speed range | 45 - 1660 rpm |
| Vertical speed steps | 11 |
| Horizontal speed range | 40 - 1300 rpm |
| Horizontal speed steps | 12 |
| T-slots (width x distance) | 3 / 14 x 80 mm |
| Spindle projection | 300 - 800 mm |
| Milling head swivelling range | ± 180° |
| Quill distance table | 660 mm |
| Table load capacity | 300 kg |
| Horizontal spindle distance table | 470 mm |
| Milling table surface | 1370 x 320 mm |
| Table path (X x Y) | 1000 x 380 mm |
| Milling table stroke | 400 mm |
| X/Y feeds | 30 - 750 / 20 - 500 mm/min |
| Feed stages X/Y | stepless |
| Feed Z | 15 - 370 mm/min |
| Engine power | 3000 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 1320 x 320 x 650 mm |
| Dimensions (L x W x H) | 2020 x 1700 x 1990 mm |
| Weight | 1980 kg |
Special features
- Elmag Start Up Service - ready for operation immediately after delivery
- Servo drive with rapid traverse for X, Y and Z axes
- Automatic centralised lubrication for low-maintenance operation
- Precisely ground bed guides for durability
- Robust cast construction for vibration-free machining
- Perfect for mechanical engineering, toolmaking and training
Conclusion
TheUniversal milling machine UFM 125 GT Servodrive is the perfect combination of stability, precision and comfort. With itsstepless servo drivethedigital 3-axis display and theElmag Start Up Service it is immediately ready for use - ideal for demanding metalworking with maximum precision.
ELMAG - Precision, performance and reliability for professional metalworking.
