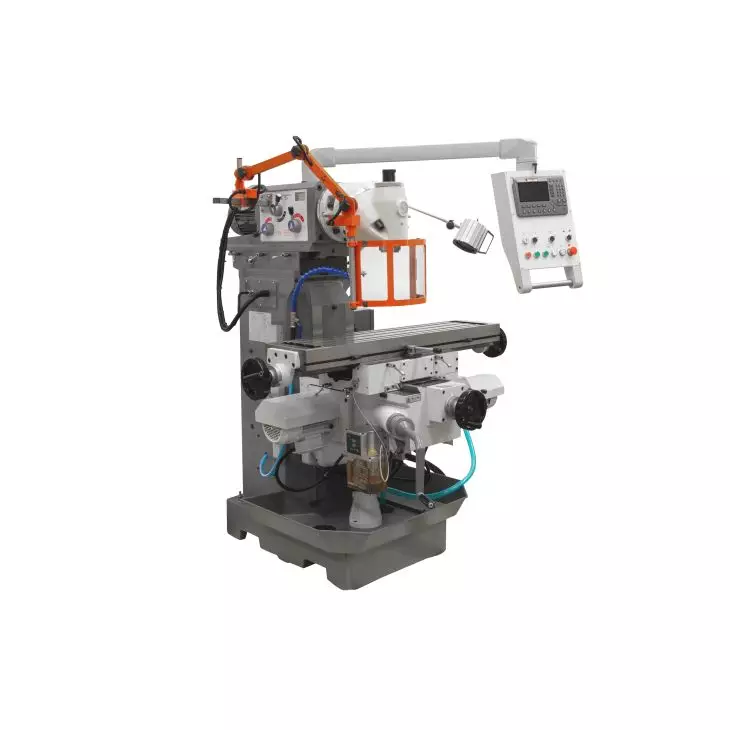

ELMAG UFM 125 Universal Milling Machine – 125 mm Milling Capacity | 3-Axis Digital Readout | Start-Up Service
€16,935.00
Free shipping
Available, delivery time: 1-2 weeks
Description
ELMAG UFM 125 Universal Milling Machine – 125 mm Milling Capacity | 3-Axis Digital Readout | Start-Up Service
ELMAG Universal Milling Machine UFM 125 - Precision, performance & flexibility
TheELMAG UFM 125 Universal milling machine is a true all-rounder in professional metalworking. It combines maximum precision, enormous flexibility and an innovative"2-in-1" concept: The machine can be converted from a vertical to a horizontal milling machine in just a few simple steps - ideal for complex and versatile machining tasks inWorkshops, mechanical engineering andIndustry.
Elmag Start Up Service - immediately ready for operation ex works
TheELMAG UFM 125 is made possible by the exclusiveElmag Start Up Service fully prepared and tested. This means
- ✔Oil filling included
- ✔Depreserved (degreased)
- ✔Fully assembled and aligned
- ✔Test run and functional test performed
How the machine is deliveredReady for immediate use - without additional assembly or installation.
Unique "2-in-1" milling concept

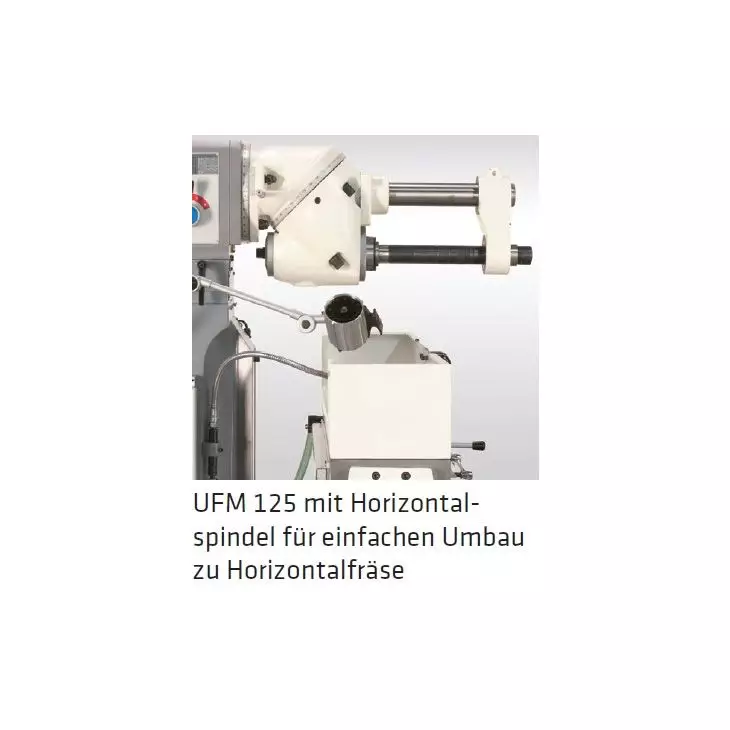

TheInfinitely variable swivelling milling head The UFM 125 can be set at almost any angle and enables precise face and end milling, even with complicated spatial workpiece positions. Thanks to theHorizontal spindle system it can be transformed into aHorizontal milling machine - Perfect for large-area face milling. With aMotor power of 2,200 W it is designed for face milling cutters up to 125 mm in diameter.
Advantages of the ELMAG UFM 125 universal milling machine
- ✔Drilling & milling performance: Face milling cutter Ø 125 mm / end mill Ø 40 mm

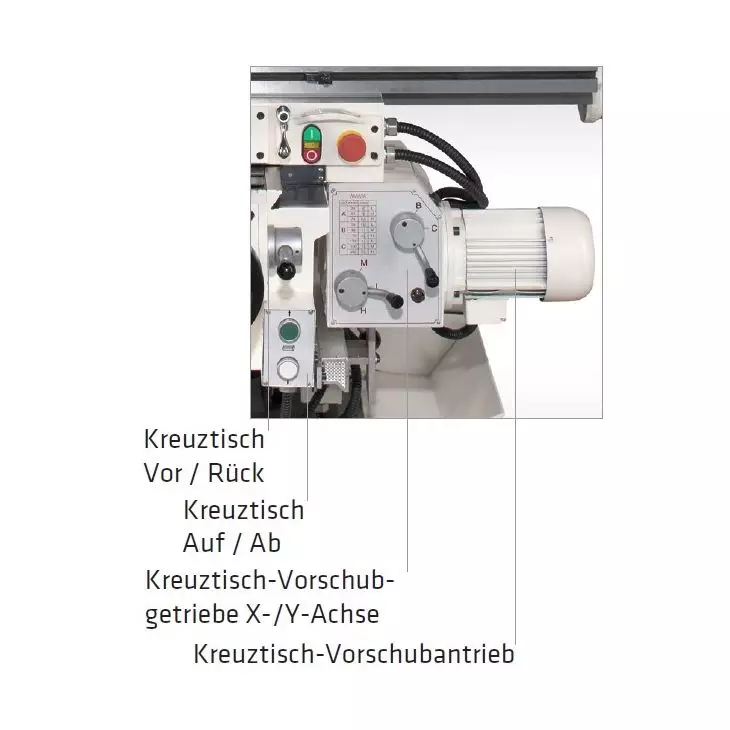

- ✔Automatic feed on X-, Y- and Z-axis for precise series processing
- ✔Digital 3-axis position indicator for maximum accuracy
- ✔Swivelling milling head ±180° for versatile machining
- ✔Centralised lubrication of the guideways for minimal maintenance
- ✔Integrated coolant system with tank in the machine base
- ✔Sturdy, torsion-resistant cast construction
- ✔LED work lighting for optimum visibility
- ✔Precision bearing andTightening spindles for maximum safety
Standard equipment
- Digital 3-axis position indicator
- Collet set 4 / 5 / 6 / 8 / 10 / 12 / 14 / 16 mm with collet chuck
- Tool set
- Operating instructions / CE certificate
Technical data - ELMAG UFM 125 Universal milling machine
| Technical feature | Value / Description |
|---|---|
| Milling performance (face milling cutter) | 125 mm |
| Milling performance (end mill) | 40 mm |
| Spindle holder | ISO 40 |
| Vertical speed range | 45 - 1,660 rpm |
| Vertical speed steps | 11 |
| Horizontal speed range | 45 - 1,660 rpm |
| Horizontal speed steps | 11 |
| Spindle projection | 60 - 500 mm |
| Milling head swivelling range | ± 180° |
| Quill distance table | 80 - 500 mm |
| Horizontal spindle distance table | 40 - 470 mm |
| Milling table surface | 1,120 × 260 mm |
| Table travel (X × Y) | 600 × 300 mm |
| Milling table stroke (Z) | 420 mm |
| X/Y feeds | 24 - 402 mm/min (9 steps) |
| Feed Z | 1,200 mm/min |
| T-slots / width × spacing | 5 / 14 × 50 mm |
| Engine power | 2.200 W |
| Feed drive X/Y | 550 W |
| Feed drive Z | 750 W |
| Coolant pump | 90 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 1,120 × 260 × 500 mm |
| Machine dimensions (L × W × H) | 1,655 × 1,325 × 1,730 mm |
| Weight | 1,480 kg |
Areas of application
- Machine and tool construction
- Metalworking & prototype construction
- Training workshops & industrial production
- Small series production & single part production
Conclusion
TheELMAG UFM 125 is aPowerful and flexible universal milling machinethat combines precision and versatility at the highest level. Withdigital 3-axis display,Automatic feed and theElmag Start Up Service it is the ideal solution for professional users who want to work productively straight away.
Manufacturer: ELMAG - Precision machines and workshop equipment for industry, trade and training.
