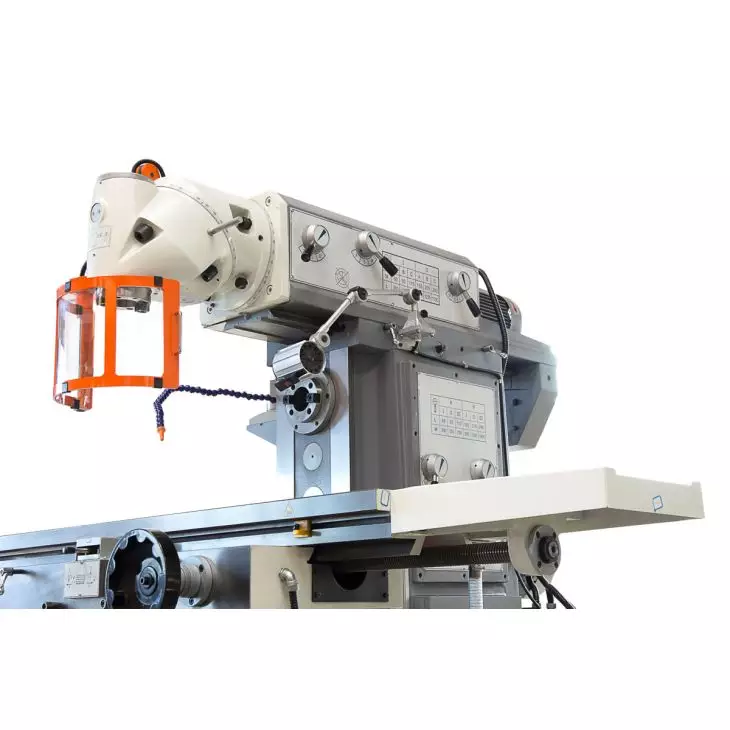

ELMAG UFM 125 GTL Servodrive – Universal Milling Machine | 3-Axis Digital Readout | Start-Up Service
ELMAG Universal Milling Machine UFM 125 GTL Servodrive - Precision milling machine with 3-axis position indicator
TheELMAG UFM 125 GTL Servodrive is a high-precisionUniversal milling machine for professional applications in tool, mould and machine construction. Thanks tostepless servo drive on all axles,digital 3-axis position indicator andSolid cast construction It guarantees absolute precision, smooth running and maximum efficiency - even with demanding workpieces. With aMilling capacity of 125 mm (face milling cutter) andISO 50 spindle mount it fulfils the highest demands on accuracy and stability.
Elmag Start Up Service - Ready for operation ex works
TheELMAG UFM 125 GTL Servodrive is made possible by the exclusiveElmag Start Up Service fully prepared and tested. This service includes:
- ✔Oil filling included
- ✔De-preservation and degreasing
- ✔Fully assembled and aligned
- ✔Test run with function test
This makes the machineImmediately ready for operation and can be used productively immediately after delivery - without additional assembly or adjustment work.
Precision meets performance - the advantages of the UFM 125 GTL Servodrive
- ✔Stepless drive of the X/Y/Z axes via powerful servomotors
- ✔Rapid traverse for all axles for fast workpiece positioning
- ✔Digital 3-axis position indicator for exact dimensional accuracy
- ✔Swivelling milling head ±180° for flexible machining
- ✔Automatic centralised lubrication for low-maintenance continuous operation
- ✔High-precision hardened bed guides - Low-vibration and durable
- ✔Trapezoidal threaded spindle for sensitive feed control
- ✔Sturdy, torsion-resistant cast construction with support column
- ✔LED work light For perfect illumination of the work area
- ✔High table load capacity up to 500 kg - Ideal for large workpieces
Standard equipment
- Digital 3-axis position indicator
- Tool set
- Operating instructions / CE certificate
Technical data - ELMAG UFM 125 GTL Servodrive universal milling machine
| Technical feature | Value / Description |
|---|---|
| Milling performance (face milling cutter) | 125 mm |
| Milling performance (end mill) | 50 mm |
| Spindle holder | ISO 50 |
| Vertical speed range | 60 - 1,750 rpm |
| Vertical speed steps | 12 |
| Horizontal speed range | 60 - 1,800 rpm |
| Horizontal speed steps | 12 |
| Spindle projection | 290 - 840 mm |
| Milling head swivelling range | ± 180° |
| Quill distance table | 646 mm |
| Horizontal spindle distance table | 20 - 470 mm |
| Milling table surface | 1,325 × 360 mm |
| Table travel (X × Y) | 1,100 × 320 mm |
| Milling table stroke (Z) | 470 mm |
| Table load capacity | 500 kg |
| T-slots (width × spacing) | 3 / 18 × 80 mm |
| X/Y feeds | 30 - 750 / 20 - 500 mm/min (infinitely variable) |
| Feed Z | 15 - 375 mm/min |
| Engine power | 5.500 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 1,325 × 360 × 646 mm |
| Machine dimensions (L × W × H) | 2,100 × 1,800 × 2,000 mm |
| Weight | 2,750 kg |
Areas of application
- Machine and tool construction
- Prototype and mould construction
- Teaching and training workshops
- Industrial production and maintenance
- Precision mechanics and metalworking
Conclusion
TheELMAG UFM 125 GTL Servodrive stands for maximum precision, performance and ease of use. With servo drive on all axes, digital 3-axis display andElmag Start Up Service she isImmediately ready for operation and delivers professional results - the perfect choice for demanding production environments.
Manufacturer: ELMAG - Precision machines and workshop equipment for industry, trade and production.
