ELMAG® TIGER assembly compressor - 260 l/min, 10 bar, 230 V, 2×11 l tank
€994.00
Free shipping
Available, delivery time: 2-5 days
Description
ELMAG® TIGER assembly compressor - 260 l/min, 10 bar, 230 V, 2×11 l tank
ELMAG® TIGER assembly compressor - Powerful professional compressor for construction sites and trade
TheELMAG® TIGER assembly compressor stands forHigh performance, robust quality and aCompact design - Perfect for professional use on construction sites, workshops and mobile applications. Thanks to its sophisticated design, high-quality workmanship and powerful drive, this compressor deliversReliable compressed air wherever it is needed.
Ideal for mobile use - compact, powerful, reliable
With itsstable chassis and the260 mm rubber wheels the TIGER compressor is easy to transport. It is specially designed forAssembly, carpentry, roofing, painting, locksmith and joinery companies designed, whichReliable source of compressed air directly on site need. The robust design guarantees a long service life - even with intensive use on the construction site.
Standard equipment

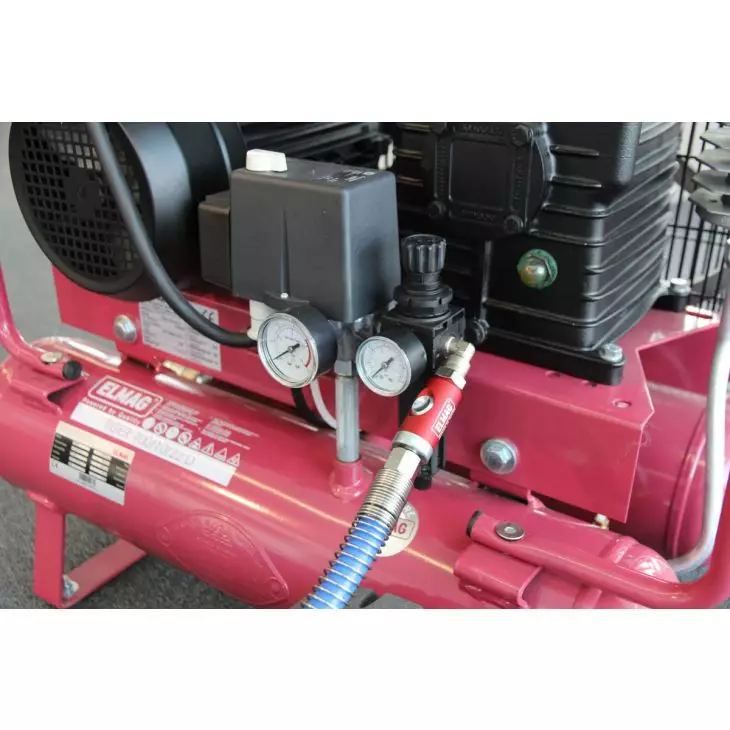

- ✔CONDOR pressure switch for reliable control
- ✔2 safety venting couplings for boiler pressure and reduced pressure
- ✔ELMAG filter pressure regulator for clean and regulated compressed air
Advantages of the ELMAG® TIGER assembly compressor
- ✔High efficiency and operational safety thanks to V-belt drive
- ✔Two-cylinder compressor with precision high-performance piston
- ✔Large fan wheel for optimum cooling
- ✔Aluminium aftercooler with large cooling fins
- ✔Low overall height thanks to two compact 11-litre pressure tanks (22 litres in total)
- ✔230 volt quality motor - Ideal for construction sites
- ✔Oil-lubricated compression for a long service life
- ✔Quiet operation with only 74 dB(A)
- ✔Easy transport due to compact dimensions and wheels
Perfect for intensive construction site use
Whether on roofs, in workshops or during assembly - theTIGER compressor always delivers the required compressed air output when it is needed. It is particularly suitable for operating pneumatic nailers, spray guns or other pneumatic tools.
Technical data - ELMAG® TIGER assembly compressor
| Feature | Value |
|---|---|
| Effective delivery quantity | 260 l/min |
| Suction capacity | 380 l/min |
| Max. Operating pressure | 10 bar |
| Oil lubricated | Yes |
| Container volume | 2 × 11 litres (22 litres total) |
| Rated motor power | 2.2 kW / 3 hp |
| Electrical connection Voltage / frequency | 230 V / 50 Hz |
| Sound pressure level (4 m) | 74 dB(A) |
| Compressor speed | 1,300 rpm |
| Length | 780 mm |
| Width | 650 mm |
| Height | 740 mm |
| Weight | 59 kg |
Note on construction site operation
When using the230 volt version is recommendedExtension cable with a cable cross-section of at least 2.5 mm²to avoid voltage losses. This ensures that the motor starts up safely and smoothly - even under construction site conditions.
Conclusion
TheELMAG® TIGER assembly compressor is the ideal partner for mobile craft businesses that rely onPowerful, compact and durable compressed air technology set. With its robust design, efficient V-belt drive and high operational safety, it guarantees reliability on any construction site.
ELMAG® TIGER - Compact. Powerful. Reliable. Your professional compressor for daily use.
