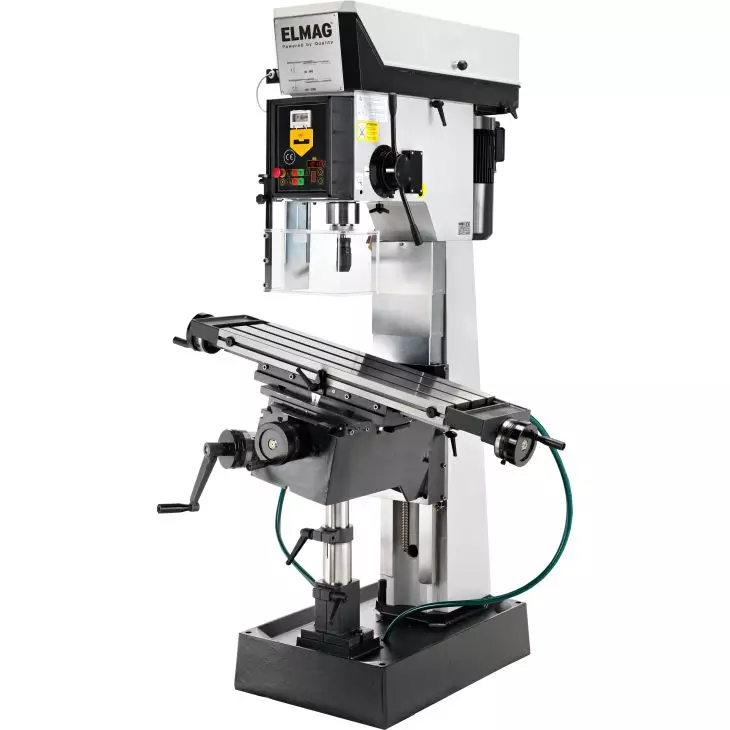

Elmag TCS 50 E drilling and milling machine - 50 mm drilling capacity in steel, electronic speed controller, swiveling coordinate table
€23,385.00
Free shipping
Available, delivery time: 2-5 days
Description
Elmag TCS 50 E drilling and milling machine - 50 mm drilling capacity in steel, electronic speed controller, swiveling coordinate table
PREMIUM TCS 50 E drilling and milling machine - precision and performance in perfection
ThePREMIUM drilling and milling machine TCS 50 E is the ideal combination of power, precision and versatility. With aDrilling capacity in steel of 50 mm and oneTapping capacity up to M26 it fulfils the highest requirements in workshops, mechanical engineering and metalworking. Its electronic speed control, automatic quill feed and robust design make it an indispensable tool for precise drilling and milling work.
Professional performance for precise machining
ThePREMIUM TCS 50 E convinces with its powerful3,000 W motor and a continuously adjustable speed of45 to 2,150 rpm. TheElectromagnetic spindle brake ensures maximum safety, while theSwivelling coordinate cross table enables precise travelling movements. The largeDovetail guide ensures stability and smooth running when milling.
Advantages of the PREMIUM TCS 50 E drilling and milling machine
- ✔Drilling performance in steel: 50 mm - powerful and precise
- ✔Electronic cruise control for constant speeds
- ✔Swivelling coordinate cross table for precise positioning
- ✔Automatic quill feed (0.05 / 0.1 / 0.2 mm/rev)
- ✔Tapping performance: M26 - ideal for demanding threading work
- ✔Dovetail guide for precise milling
- ✔Quill MK4 With thread for secure tool locking
- ✔Electromagnetic spindle brake for safety and control
- ✔Clockwise and anti-clockwise rotation - Ideal for thread cutting
- ✔Long travel distances: X = 585 mm / Y = 240 mm

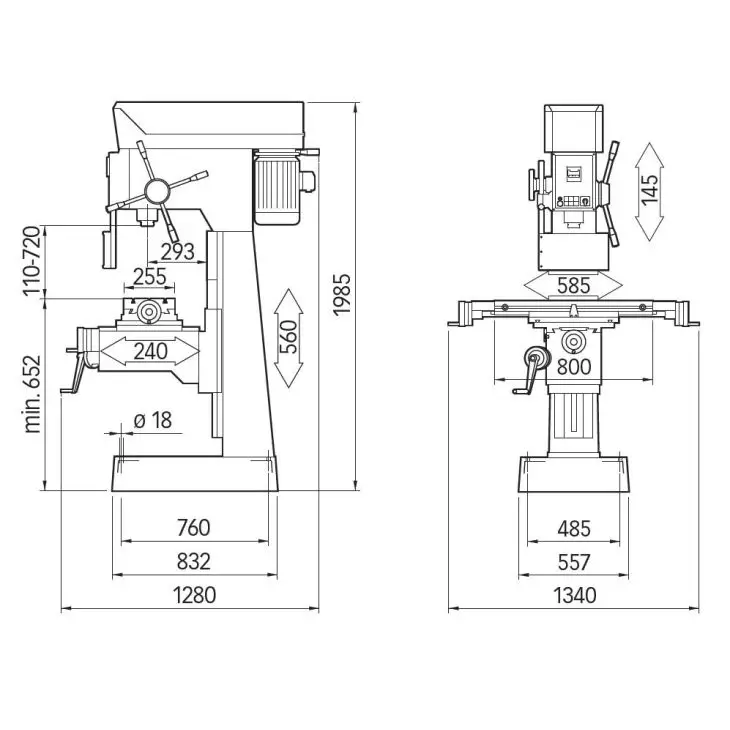

Technical data - PREMIUM drilling and routing machine TCS 50 E
| Technical feature | Value / Description |
|---|---|
| Drilling performance in steel | 50 mm |
| Tapping performance | M26 |
| Spindle holder (turning spindle) | MK 4 |
| Speed range | 45 - 2,150 rpm |
| Quill stroke | 145 mm |
| Spindle projection | 293 mm |
| Quill distance table | 110 - 720 mm |
| Table distance X x Y | 585 x 240 mm |
| Engine power | 3.000 W |
| Mains connection | 400 V / 50 Hz |
| Weight | 780 kg |
Special features
- Solid, low-vibration cast construction for precise work
- Infinitely variable speed adjustment for every application
- Integrated electromagnetic spindle brake
- Ergonomically arranged controls
- Outstanding price-performance ratio in the premium class
Areas of application
- Machine and tool construction
- Metal processing
- Manufacturing and training companies
- Workshops and prototype construction
Conclusion
ThePREMIUM drilling and milling machine TCS 50 E combines power, precision and flexibility in a compact design. Thanks toelectronic speed controller, automatic quill feed andswivelling cross table it is ideal for precise drilling and milling work. A real premium tool for professional applications in trade and industry.
PREMIUM - maximum precision and reliability for trade, mechanical engineering and industry.
