Elmag surface grinding machine model HSG 250/500 AL

Elmag surface grinding machine HSG 250/500 AL - precision, performance and efficiency for professional metalworking

TheElmag surface sanding machine HSG 250/500 AL is a semi-automatic precision machine specially designed for theFine grinding (finishing) of metal surfaces was developed. It enables high-precision machining of sealing, running and fitting surfaces and fulfils the highest requirements for dimensional accuracy, surface quality and repeat accuracy - ideal forIndividual production, small series and workshops.

Precise surface sanding with the highest sanding quality

TheHSG 250/500 AL convinces with aSolid cast constructionlow-vibration running culture and maximum precision. TheHigh-quality grinding spindle is guided in precision bearings and ensures exact concentricity. APuller allows the grinding disc to be resharpened directly on the machine, ensuring that the grinding quality remains constant.

High sanding accuracy thanks to SINO position indicator

All HSG models are equipped with aSINO two-axis position indicator equipped. This precise measuring system with a display accuracy of0.001 mm allows the sanding head and sanding table to be precisely adjusted. This achieves perfect repeat accuracy even in manual operation - ideal for use inTool, mould and fixture construction.

Semi-automatic control - precision with convenience

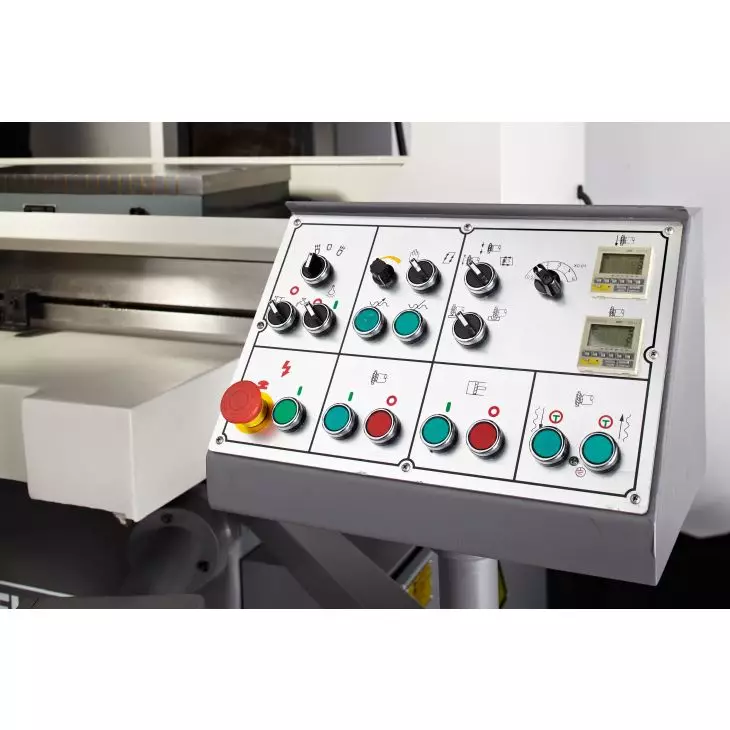

TheElmag HSG 250/500 AL is equipped with aInfinitely adjustable, automatic longitudinal drive and aRapid traverse for transverse and vertical movements equipped. TheAutomatic cross delivery ensures even sanding movements and reproducible surfaces - with maximum user-friendliness. The swivellingControl panel allows intuitive control of all axes and movement sequences.

Optimum handling and centralised lubrication

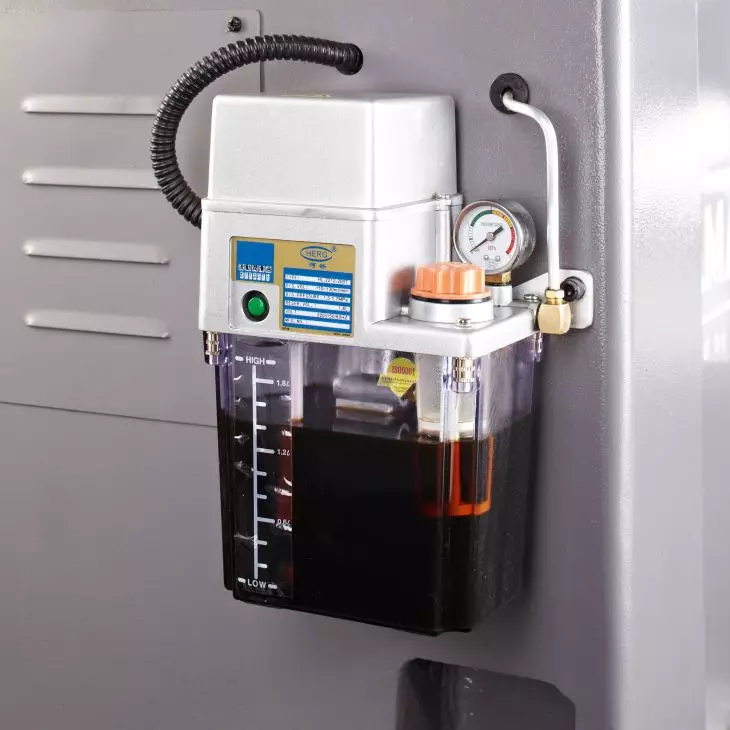

The integratedElectromagnetic clamping plate enables workpieces to be clamped, released and demagnetised quickly. AAutomatic centralised lubrication with pressurised lubrication pump ensures constant smooth running of all guides and spindles - for a long service life and consistent precision.

Elmag start-up service - With ELMAG® quality check

EachElmag surface sanding machine HSG 250/500 AL is used with theELMAG® Start-Up Service delivered - ready for operation, including oil filling, degreasing, assembly and test run. With theELMAG® quality check the machine is individually tested and adjusted to guarantee maximum precision and reliability ex works.

• Function test of all axles and drives
• Adjusting the SINO digital display
• Checking the grinding spindle for concentricity
• Test run with temperature and vibration measurement
• CE-compliant final acceptance with protocol

Note: Through theELMAG® Start-Up Service the delivery time is extended by approx.2-3 weeksas each machine is individually tested and calibrated.

Advantages of the Elmag HSG 250/500 AL

• Precise fine grinding of metal surfaces
• Solid cast construction for low-vibration operation
• Automatic centralised lubrication for a long service life
• Semi-automatic control with rapid traverse and cross feed
• Powerful grinding spindle drive - 2,200 W power
• High concentricity and sanding quality
• Digital dual-axis position indicator (0.001 mm)
• Coolant pump, suction and magnet cleaning included
• Assembled ready for operation with ELMAG® quality check

Typical areas of application

• Toolmaking and mould making
• Mechanical and plant engineering
• Metal and precision manufacturing
• Training and repair workshops
• Precision engineering companies

Technical data - Elmag surface sanding machine HSG 250/500 AL

Standard equipment

• Electromagnetic clamping plate with demagnetising function
• Automatic centralised lubrication
• Coolant pump and suction device
• Magnetic coolant cleaning system
• SINO two-axis position indicator
• Hydraulic longitudinal drive (infinitely variable)
• Automatic cross delivery
• Rapid traverse for transverse and vertical movement
• Halogen work lamp
• Puller with fine feed
• Grinding disc guard with limit switch
• Balancing stand, tool set, operating instructions, CE

Conclusion

TheElmag surface sanding machine HSG 250/500 AL impresses with its precision, stability and ease of use. Its semi-automatic control, robust design and high-quality components make it the ideal choice for workshops that rely onHighest surface quality and reliability set. With theELMAG® Start-Up Service and theQuality check you get a ready-to-use machine in tested top quality.

Elmag HSG 250/500 AL - precision, performance and proven ELMAG® quality with start-up service.
