Elmag Servohydraulic Press Brake CNC 4-Axis - 3200x160T

Elmag servo-hydraulic press brake CNC 4-axis - 3200x160T - Precision and performance in perfection

TheElmag servo-hydraulic press brake CNC 4-axis - 3200x160T sets new standards in terms of precision, efficiency and ease of use. With state-of-the-art CNC control, a powerful hydraulic unit and intelligent synchronisation, this machine is the ideal tool for precise bending work in industry, metal construction and workshops.

Maximum precision thanks to CNC technology

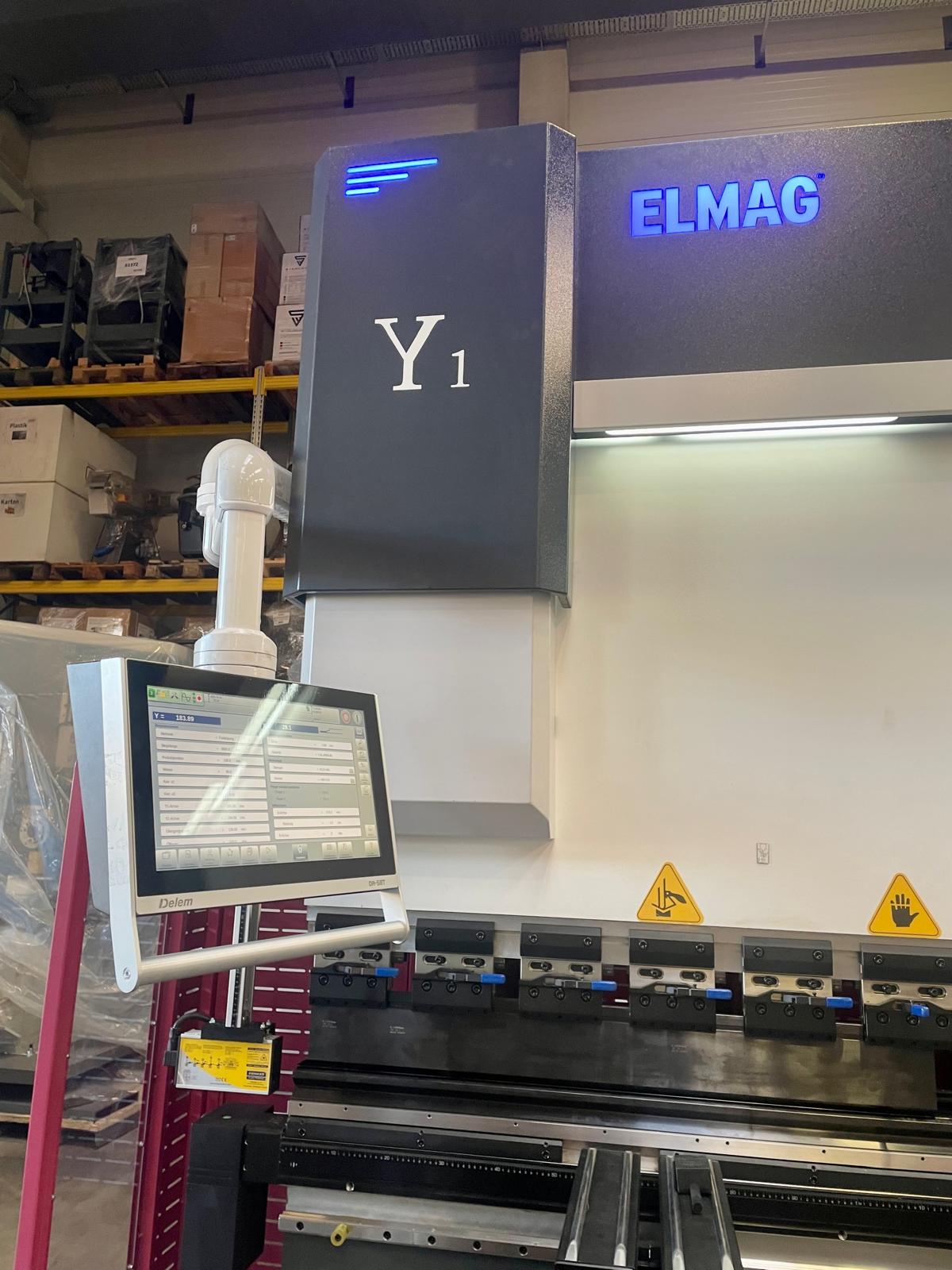

Equipped with the innovativeDELEM DA-58T Touch CNC control unit the press brake offers an intuitive, user-friendly interface with a colour touchscreen. Up to999 bending programmes with99 repetitions per work step enable flexible individual and series production with maximum precision.

Powerful servo hydraulics - synchronised and precise

TheServo-hydraulic technology ensures perfect synchronisation of the Y1 and Y2 axes and thus guarantees consistent bending results over the entire working length. Two precise ball screws control the backgauge (X-axis) at a speed of up to230 mm/s - Optionally expandable with aR-axis with250 mm stroke.

CNC crowning for consistent angular accuracy

The integratedCNC crowning device automatically compensates the bending pressure along the working length and ensures exact angles across the entire workpiece. An optionalMotorised adjustable crowning are available - ideal for high quantities and demanding bending tasks.

Modern safety system - AKAS-Laser Safety

Maximum safety combined with ease of use is provided by theAKAS-Laser Safety Light Barrier. This advanced protection system ensures maximum personal safety while enabling efficient working without compromising on productivity.

Elmag start-up service - With ELMAG® quality check

EachElmag servo-hydraulic press brake will be organised within theELMAG® Start-Up Service fully tested, adjusted and handed over ready for operation. TheQuality check guarantees maximum precision, reliability and immediate operational readiness from the first day of work.

• Mechanical and hydraulic fine adjustment of all axles
• Oil filling, bleeding and pressure testing of the hydraulic system
• Calibration of the CNC control
• Function test of all safety devices
• Test run under full load with quality protocol

Note: When buying withELMAG® Start-Up Service the delivery time is extended by approx.2-3 weeks due to individual machine tuning.

Advantages of the Elmag servo-hydraulic press brake CNC 4-axis - 3200x160T

• DELEM DA-58T CNC touch control with touchscreen
• CNC crowning for exact angles over the entire working length
• Synchronised servo hydraulics for maximum precision
• R-axis with 250 mm stroke (optionally motorised)
• X-axis with 230 mm/s traversing speed
• AKAS-Laser Safety Light Barrier for maximum safety
• Stable, stress-free steel frame construction
• Energy-efficient operation thanks to servo-hydraulic system
• Compatible with hydraulic oils according toDIN 51524 / ISO 6743 - All approvals available for oils

Technical data - Elmag servo hydraulic press brake CNC 4-axis - 3200x160T

Conclusion

TheElmag servo-hydraulic press brake CNC 4-axis - 3200x160T is the ideal choice for professional users who expect maximum precision, efficiency and safety. With modern CNC technology, automatic crowning and precise servo hydraulics, it offers a perfect combination of power, control and reliability.

Elmag servo-hydraulic press brake 3200x160T - CNC precision, hydraulic power and proven ELMAG® quality for the highest demands.
