ELMAG Profi-Line SILENT Compressor – 563 l/min, 10 bar, quiet 68 dB(A)
€3,245.00
Free shipping
Available, delivery time: 2-5 days
Description
ELMAG Profi-Line SILENT Compressor – 563 l/min, 10 bar, quiet 68 dB(A)

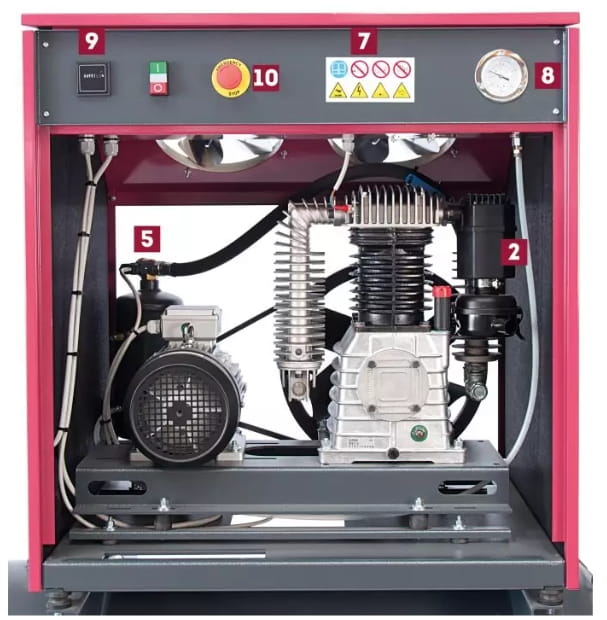

ELMAG® Profi-Line SILENT compressor - Quiet, powerful & for professional use
The ELMAG® Profi-Line SILENT compressor has been specially developed for noise-sensitive working environments. and counts with only68 dB(A) is one of the quietest appliances in its performance class. Thanks to the high-quality EUROCOOL design, two-stage compression and optimised air cooling this model offers maximum efficiency and compressed air quality - ideal for workshops, production and precision applications.
Performance features of the Profi-Line SILENT series
- Extremely quiet: only 65-69 dB(A) - corresponds to normal conversation volume
- Two-stage compressing, long-life unit
- Optimised cooling thanks to large fin surfaces and cast fan wheel
- Low air temperature and minimal condensation
- 3-litre pressure compensation tank - prepared for external DL tank
- Robust grey cast iron construction with high-performance piston
- Integrated motor protection relay, emergency stop switch and operating hours counter
- Very good compressed air quality thanks to EUROCOOL technology
Safety & ease of use
- Air intake filter with sound insulation
- Safety and non-return valve
- External condensate drainage via ball valve
- Thermally controlled cooling fans
- Solenoid valve for start-up relief
- Central control panel with pressure gauge
Technical data
| Effective delivery quantity | 563 l/min |
| Suction capacity | 750 l/min |
| Max. Operating pressure | 10 bar |
| Oil lubricated | Yes |
| Container volume | 3 l |
| Rated motor power | 4 kW / 5.5 hp |
| Electrical connection | 400 V / 50 Hz |
| Sound pressure level (4 m) | 68 dB(A) |
| Compressor speed | 1000 rpm |
| Air outlet | 3/4 inch |
| Length | 900 mm |
| Width | 680 mm |
| Height | 1000 mm |
| Weight | 168 kg |
The ELMAG® Profi-Line SILENT compressor combines maximum running smoothness, outstanding efficiency and high reliability. Ideal for workshops, laboratories and all places of use, where a powerful, quiet and clean compressed air supply is essential.
