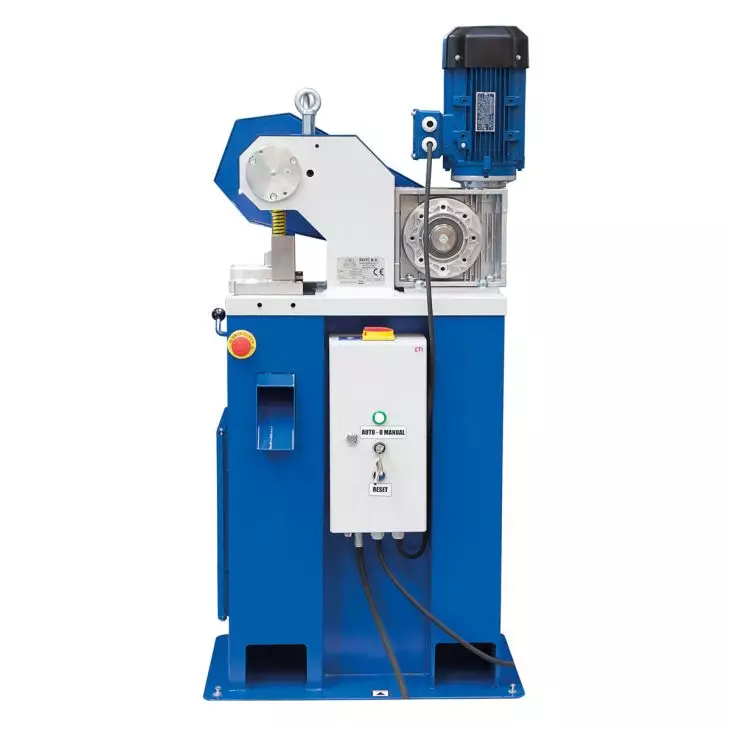

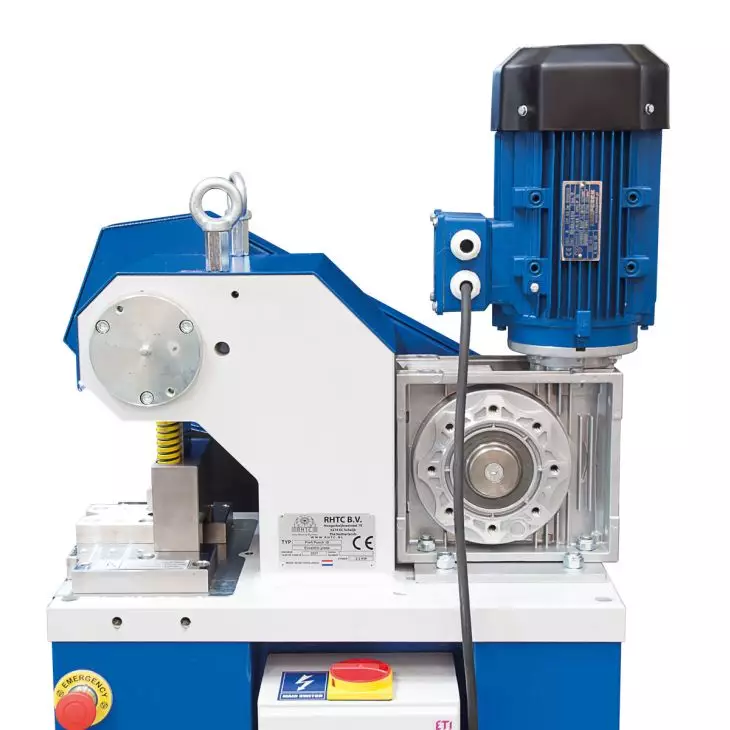

Elmag Professional Eccentric Punching Machine - 10T

Elmag Profi eccentric punching machine 10T - Precise punching and cutting for the highest demands

TheElmag professional eccentric punching machine 10T is a professional industrial machine specially designed forMoulding, punching and cutting of materials up to a thickness of4 mm was developed. It impresses with its robust design, powerful drive and simple, safe operation via aElectric foot pedal. Thanks to the high pressing force and precise guide systems, this machine is ideal for series production, workshop operation or industrial use.

Versatile and powerful

The eccentric punching machine offers aPressing force of 10 tonnes and achieves a maximum working power of up to1,600 punching cycles per hour. The powerful2,200 watt motor combined with excellent power transmission enables precise punching processes with minimum energy consumption. With a noise level of only60 dB(A) the machine is pleasantly quiet - ideal for daily workshop use.

Elmag start-up service - With ELMAG® quality check

TheElmag professional eccentric punching machine 10T will be realised within theELMAG® Start-Up Service tested, adjusted and delivered completely ready for operation. The comprehensiveQuality check guarantees immediate operational readiness and maximum operational reliability from the first day of operation.

• Depreservation, degreasing and deprotection
• Installation and commissioning test
• Oil filling of all gearboxes and lubrication points
• Mechanical, electrical and safety checks
• Test run and function test at all power levels
• 30-minute test run under full load
• Fine adjustment of all machine components

Note: When purchasing with start-up service, the delivery time is extended by approx.2-3 weeksas each machine is individually tested and adjusted.

Six interchangeable punching tools

The Elmag eccentric punching machine can be equipped with6 different punching tools to cover a wide variety of shapes and applications:

• Corner wedge-shaped punch
• Wedge-shaped punch
• Pipe cutter for vertical pipes
• Slot punch
• Corner rounding punch
• Corner cutter

Advantages of the Elmag Profi 10T eccentric punching machine

• Pressing force of 10 tonnes for high precision and performance
• Electric foot pedal for convenient operation
• Quiet operation with only 60 dB(A)
• Up to 1,600 work cycles per hour
• Solid steel construction for high stability and durability
• High efficiency (0.95) due to efficient chain transmission
• Suitable for a wide range of metalworking applications up to 4 mm thick
• Compatible with lubricating oils according toDIN 51517 - All approvals available for oils

Technical data - Elmag Profi eccentric punching machine 10T

Special accessories

• Six different punching tools (including wedge-shaped, round, pipe cutter)
• Replacement punching and cutting tool sets
• Lubricant set according to DIN 51517

Conclusion

TheElmag professional eccentric punching machine 10T combines power, precision and user-friendliness at the highest level. Thanks to theELMAG® Start-Up Service with a comprehensive quality check you will receive aImmediately ready for operation, tested machinethat meets the highest industry requirements.

Elmag Profi eccentric punching machine 10T - Precise punching, maximum performance and proven ELMAG® quality.
