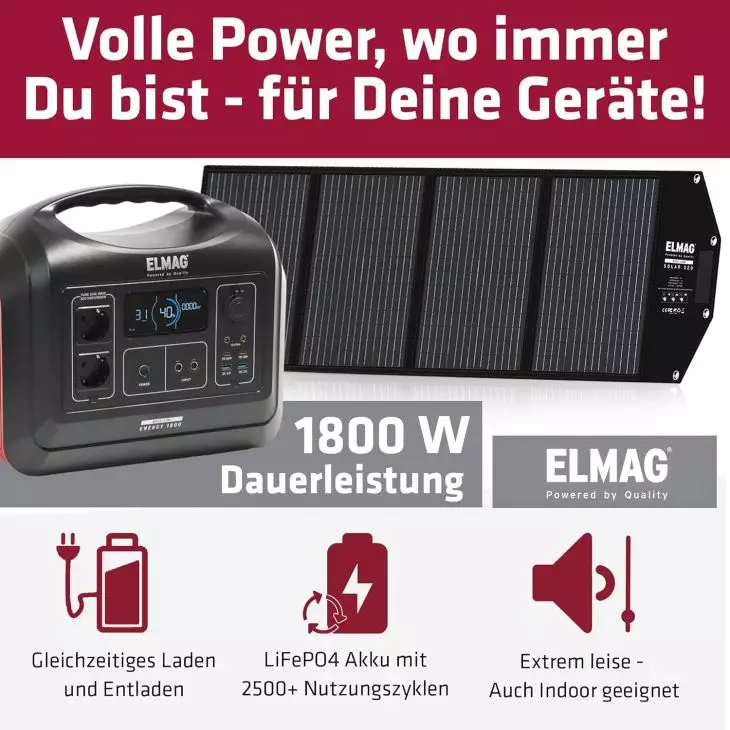

ELMAG Portable Power Station 1480Wh with 220Wp Solar Generator Set – LiFePO4 Battery, 230V Sine Wave, MPPT, Outdoor & Emergency Power

Portable Power Station ELMAG - Solar generator set with 1480 Wh LiFePO4 battery & 220 Wp solar panel

The portable ELMAG Power Station with powerful LiFePO4 battery and foldable 220 Wp solar panel is the ideal solution for a self-sufficient power supply. Perfectly suited for camping, outdoors, motorhomes, construction sites or as a reliable emergency power supply. Thanks to the pure sine wave inverter, integrated MPPT solar charge controller and high continuous output, it supplies even demanding consumers safely and efficiently.

High-quality LiFePO4 battery - safe, durable & temperature-stable

• Lithium iron phosphate technology (LiFePO4) for maximum safety
• Extremely high cycle stability of over 2500 charging cycles
• Optimum operation even at high ambient temperatures
• Intelligent battery management system (BMS)

Powerful sine wave inverter

• Pure sine wave - ideal for sensitive devices
• Continuous power: 1800 W (230 V)
• Maximum power: 4000 W (230 V)
• Simultaneous charging and discharging possible

Extensive connection options

• 2x 230 V Schuko
• 1x 12 V vehicle socket outlet 10 A
• 1x 12 V round socket outlet 10 A
• 1x USB-C 60 W
• 1x USB-C 18 W
• 2x USB-A QC 3.0

• 2x DC 7909 (12-30 V)
• 1x 12 V car 10 A

Intelligent digital display

• Battery capacity in per cent and segment display
• Remaining term
• Power output and power consumption
• Status display of the outputs
• Symbol display for active protective functions

Extensive protection functions

• Deep discharge protection
• Overvoltage protection
• Overcharge protection
• Short-circuit protection
• Overtemperature protection
• Undertemperature protection

Foldable 220 Wp solar panel - mobile & efficient

• Folds up compactly for easy transport
• Integrated support feet for optimum alignment
• Monocrystalline solar cells for high efficiency
• Combinable - two panels each for higher charging power
• Fastening eyelets and loops for horizontal and vertical mounting
• Ideal for motorhomes, railings or vehicles

Solar panel dimensions

• Folded: 655 x 520 x 35 mm
• Unfolded (footprint): 2290 x 655 x 615 mm
• Cable length: 5 m

Further highlights

• 3 charging options: Solar, 230 V mains connection, 12 V car
• Integrated MPPT solar charge controller
• LED light with SOS function
• Protection class IP21

Scope of delivery

• 1x ELMAG Power Station
• 1x mains adapter 200 W
• 1x car charging cable
• 1x foldable 220 Wp solar panel

Technical data

• Battery type: LiFePO4
• Battery capacity: 1.48 kWh
• Output voltage: 230 V pure sine wave
• Continuous power: 1800 W
• Maximum power: 4000 W
• Maximum charging power: 400 W
• Weight: 26.3 kg
