Elmag Pillar Drill V-Belt Set - 400V / 750W / Drilling Capacity Steel 32mm
€2,795.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE16038
Description
Elmag Pillar Drill V-Belt Set - 400V / 750W / Drilling Capacity Steel 32mm
-
Highest quality at a top price-performance ratio

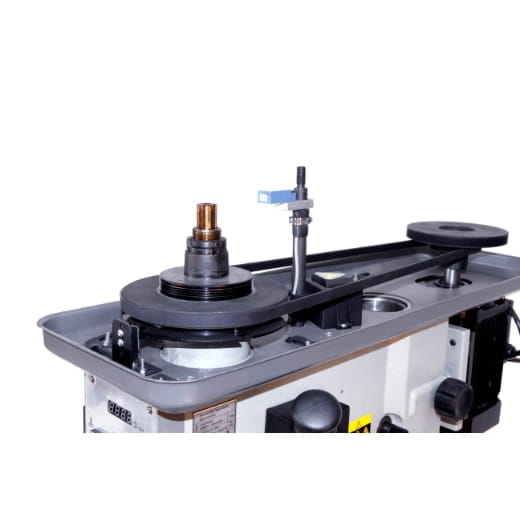

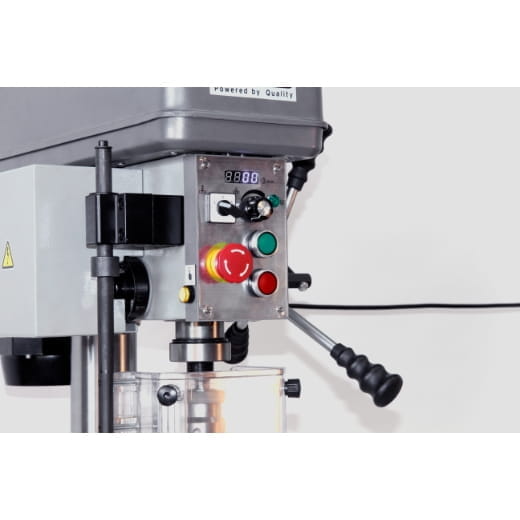

The machines in the KBM I-Vario series are equipped with a Schneider frequency converter as standard, which permanently monitors the drive motor and ensures that the quill runs very smoothly.
The integrated thread cutting device can be operated manually or by means of a depth scale, which triggers the spindle reversal after a preset thread depth. -
Standard equipment
- Quick-action drill chuck B 16, 1 - 16 mm
- Cone mandrel MK 2 / B 16

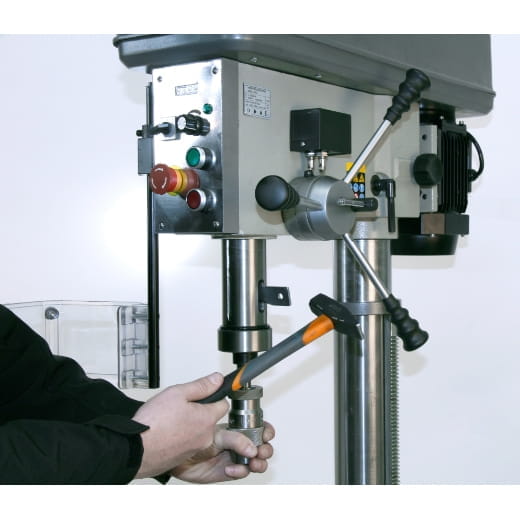

- Expulsion wedge
- Tool set
- Operating instructions / CE -
Set equipment
- Drilling machine

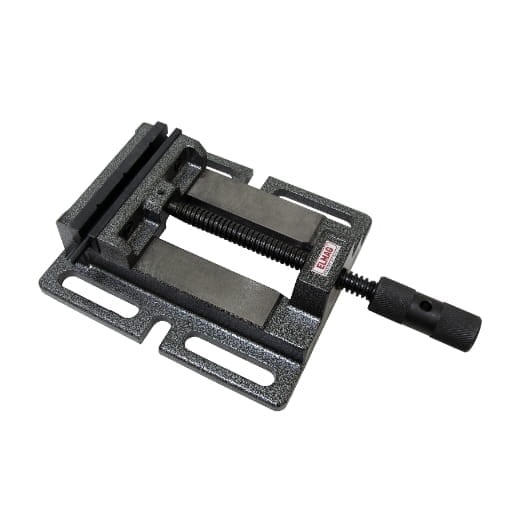

- Machine vice 4' / 100 mm

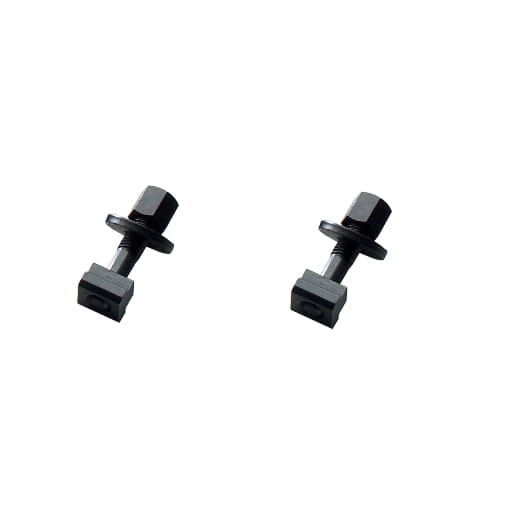

- 2 clamping screws 14 mm

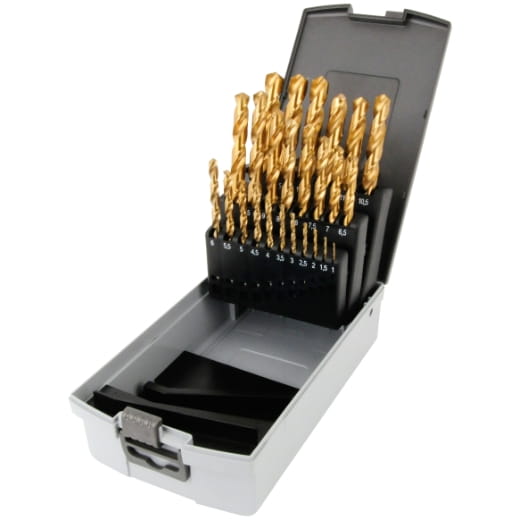

- HSS drill bit cassette 1 - 13 mm 25 pcs.
- Cutting oil spray -
Technical data
Drilling performance in steel 32 mm Spindle holder (turning spindle) MK 2 Speed range 10 - 2100 rpm Speed levels 2 Quill stroke 100 mm Column diameter 80 mm T-slots, width 14 mm Drill table stroke 750 mm Spindle projection 200 mm Rotatable drilling table ± 360 ° Quill distance table 850 mm Drilling table surface 320x320 mm Engine power 750 W Mains connection 400/50 V/Hz Cubature 195x195x360 mm Base plate area (lxw) 600x385 mm Height (total) 1680 mm Weight 125 kg
