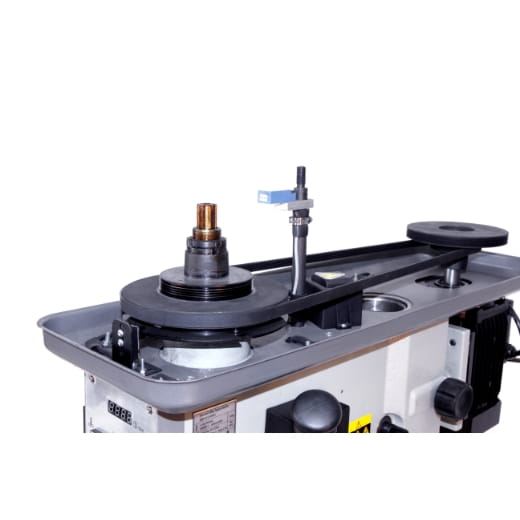

Elmag pillar drill V-belt set - 400V / 1100W / max. Steel 32mm
€3,815.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE16039
Description
Elmag pillar drill V-belt set - 400V / 1100W / max. Steel 32mm
-
Highest quality at a top price-performance ratio
The machines in the KBM I-Vario series are equipped with a Schneider frequency converter as standard, which permanently monitors the drive motor and ensures that the quill runs very smoothly.
The integrated thread cutting device can be operated manually
or by means of a depth scale, which triggers the spindle reversal after a preset thread depth. -
Standard equipment
- Quick-action drill chuck B 16, 1 - 16 mm
- Cone mandrel MK 3 / B 16

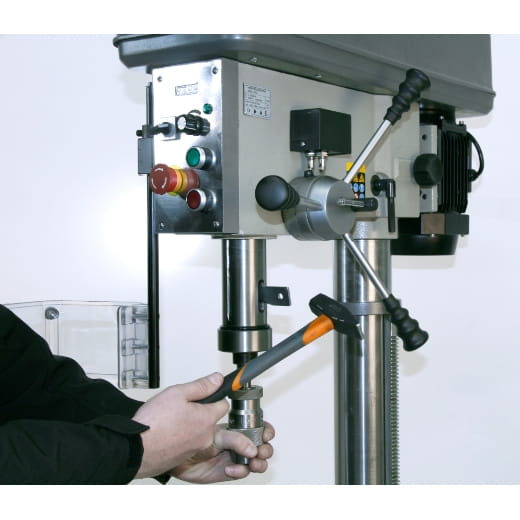

- Expulsion wedge
- Tool set
- Operating instructions / CE -

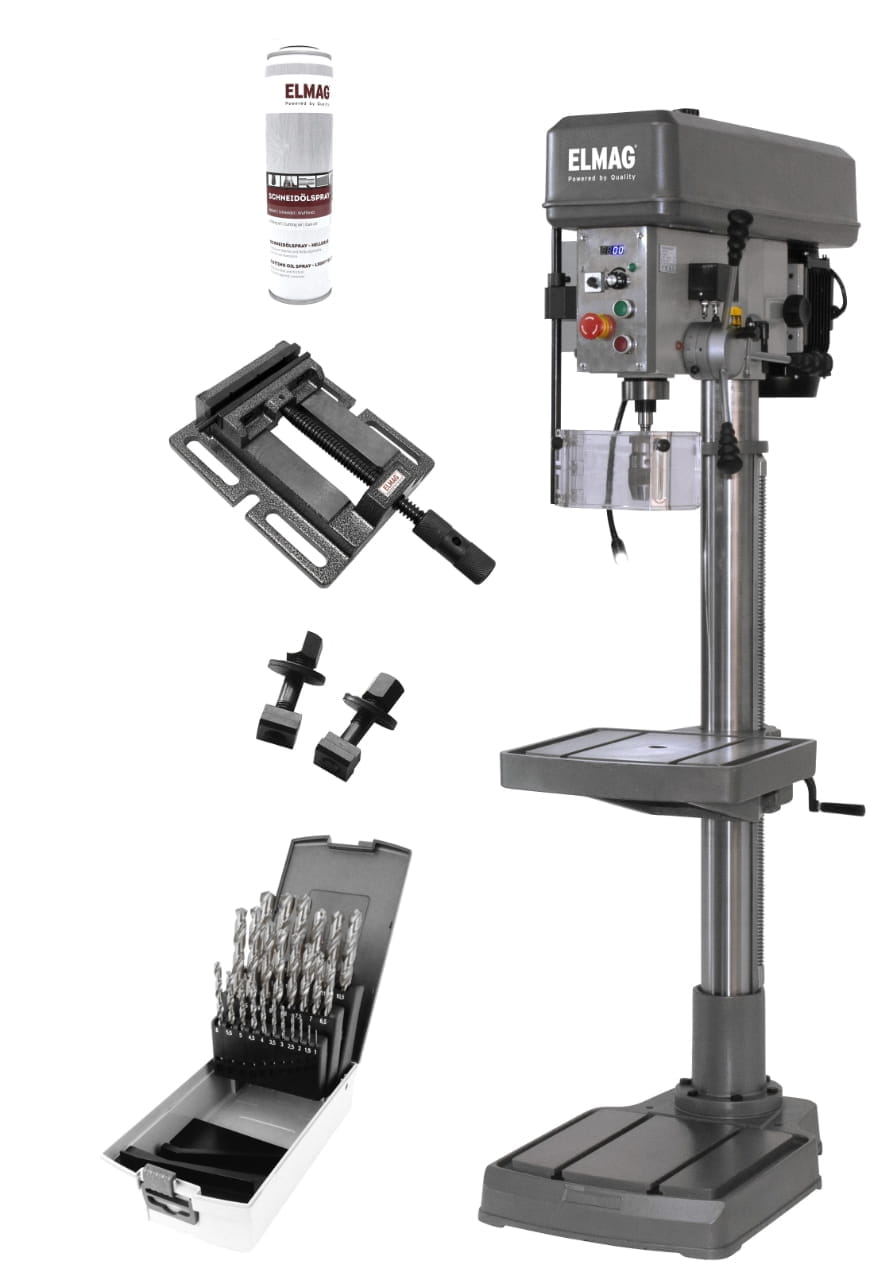

Set equipment
- KBM 32 I-Vario
- Machine vice 6" / 150 mm
- 2 clamping screws 14 mm
- HSS drill bit cassette 14.5 - 30 mm 9 pcs.
- Cutting oil spray -
Advantages
- - Integrated thread cutting device actuated by microswitch
- - Drilling depth adjustment by means of clampable scale
- - LED work light
- - Emergency stop button
Technical data
| Drilling performance in steel | 32 mm |
| Spindle holder (turning spindle) | MK 3 |
| Speed range | 10 - 2100 rpm |
| Speed levels | 2 |
| Quill stroke | 135 mm |
| Column diameter | 98 mm |
| T-slots, width | 14 mm |
| Drill table stroke | 770 mm |
| Spindle projection | 245 mm |
| Rotatable drilling table | ± 360 ° |
| Quill distance table | 850 mm |
| Drilling table surface | 410x380 mm |
| Engine power | 1100 W |
| Mains connection | 400/50 V/Hz |
| Cubature | 285x285x635 mm |
| Base plate area (lxw) | 650x440 mm |
| Height (total) | 1750 mm |
| Weight | 230 kg |
