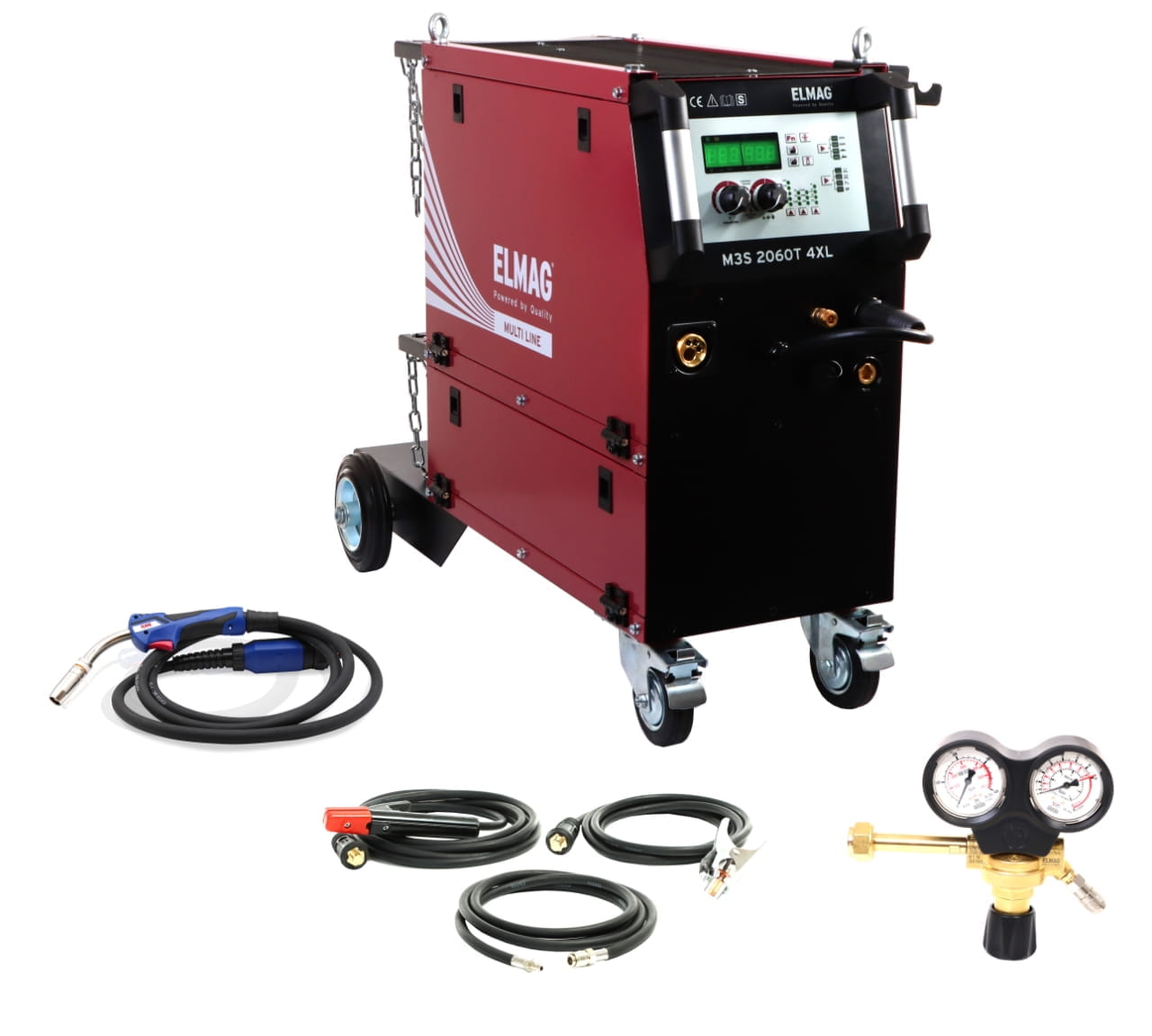

Elmag Multifunctional Mobile Welding Machine M3S 2060T 4XL / ECO-SET - MIG / MAG / MMA / TIG
€1,375.00
Free shipping
Available, delivery time: 1-3 days
Description
Elmag Multifunctional Mobile Welding Machine M3S 2060T 4XL / ECO-SET - MIG / MAG / MMA / TIG
ELMAG M3S 2060T 4XL / ECO-SET - Multifunctional welding machine for MIG / MAG / MMA / TIG
TheELMAG M3S 2060T 4XL ECO-SET is a mobile, professionalMultifunctional welding machinewhich combines three welding processes in one device -MIG/MAG, MMA/E-Hand and LIFT-TIG (DC). With state-of-the-art inverter technology, optimum energy efficiency and precise control, this appliance is the perfect solution for welding work in theMetal construction, trade, automotive sector, agriculture and repair companies.
Powerful and versatile - 3 welding processes in one device
The M3S 2060T 4XL enables both the classicMIG/MAG welding for steel, stainless steel and aluminium as well as theMMA/E-hand welding andLIFT TIG welding (DC). The Synergic function ensures that the optimum parameters are set fully automatically - ideal for beginners and professionals alike. Alternatively, the device can also be operated in manual mode for maximum control.
Synergic technology & energy efficiency
With amaximum welding power of 200 amps and oneEnergy efficiency over 80 in accordance with the eco-design directive, this model is particularly energy-efficient. TheSynergy control guarantees optimum welding parameters for steel, stainless steel, aluminium and CuSi materials - simply select the material and wire diameter, the rest is done automatically.
Robust, mobile and practically equipped
The robust steel construction withmobile chassis offers stability and mobility. TheXL housing allows wire reels up to 15 kg and Ø 300 mm to be accommodated. A high quality4-roller feed drive made of die-cast aluminium with gear rim connection ensures even wire feed, even during long welding phases.
Convenient operation & extensive functions
The welding inverter has modern convenience functions such as2-stroke, 4-stroke, special 4-stroke and spot welding modeSoft start, burn-back, gas pre-flow and gas post-flow, start and end crater flow control and JOB memory for up to 10 programmes. These functions ensure clean seams, low material distortion and reproducible results for every application.
Extensive standard equipment
- Hose packageMBC 24 / 4 m
- Earth cable 3 m with plug Ø 13 mm 35/50
- Electrode holder welding cable 4 m with plug Ø 13 mm 35/50
- Pressure regulator with 2 pressure gauges Ø 63 mm & Quick-Fit coupling DN5
- Feed rollers for steel, stainless steel, CuSi & aluminium (0.6 - 1.2 mm)
- Mobile base frame with sturdy wheels
Technical data
| Category | Technical details |
|---|---|
| Material thickness | 0.6 - 8 mm |
| Welding process | MIG/MAG, MMA/E-Hand, LIFT-WIG (DC) |
| Welding current setting range | MIG/MAG 25-200 A | MMA/WIG 10-200 A |
| Max. welding current | 200 A |
| Duty cycle 100% | 155 A |
| Duty cycle 60% | 200 A |
| Open circuit voltage | 65 V |
| Mains connection | 400 V / 3 phases |
| Power consumption | 12,3 / 12,5 A |
| Mains fuse protection | 16 AT inert |
| Protection class | IP 215 |
| Efficiency | ≥ 80 % |
| Feed drive | 4 castor system made of die-cast aluminium |
| Wire diameter steel | 0.6 - 1.0 mm |
| Wire diameter aluminium | 0.9 - 1.2 mm |
| Wire reel diameter | 200 / 300 mm |
| Wire reel weight | 5 / 15 kg |
| Electrode diameter | 1.6 - 5 mm |
| Dimensions (D x H) | 960 x 760 mm |
| Weight | 45 kg |
Areas of application
- Vehicle and body construction
- Agricultural repairs
- Workshops and assembly companies
- Metal construction, locksmiths and tinsmiths
- Industry and trade
Advantages at a glance
- 3-in-1 multifunctional device: MIG/MAG, MMA & TIG
- Synergic control with JOB memory function
- High energy efficiency & precise welding parameters
- 4-roller wire feed system for constant feed rate
- Stable, mobile body - mobile and robust
- Compatible with shielding gas-free cored wire
Conclusion
TheELMAG M3S 2060T 4XL ECO-SET is aPowerful and efficient welding inverter for the highest demands. With its versatility, modern Synergy functions and robust design, it is the perfect choice for professional welders in workshops, industry and agriculture - precise, efficient and reliable.
