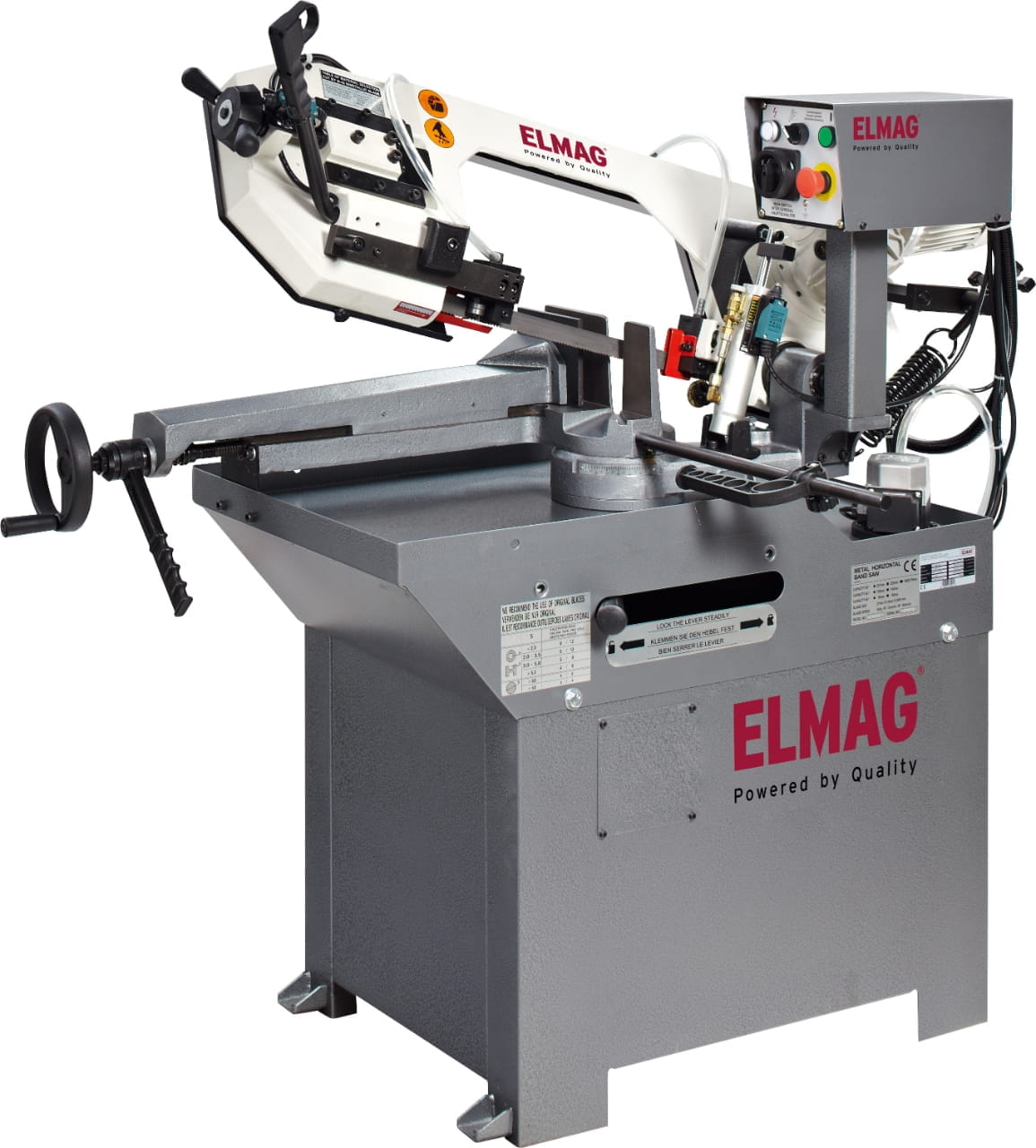

Elmag miter band saw model CY260-2G
€4,190.00
Prices exclude VAT.
Free shipping
Available, delivery time: 3-5 Tage
Product number:
BLE78107
Description
Elmag miter band saw model CY260-2G
-
Standard equipment
- CY metal band sawing machine
- Soft-close mechanism with control valve
- Quick-action vice
- Quick-release lever
- Bar stop with material stop
- Angle quick release
- Angle scale
- Compact gearbox with oil filling
- Oil bath for permanent lubrication
- Central control panel

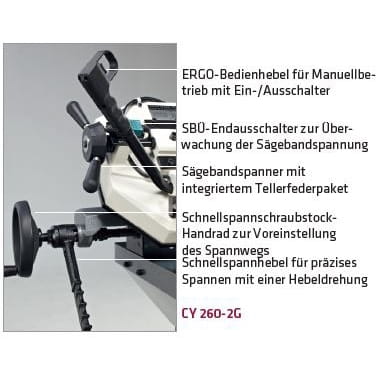

- ERGO operating lever / On/Off
- Cooling system with electric pump
- Saw band wheels with precision bearings
- Saw blade track adjustment
- Saw blade tensioner with disc spring assembly
- SBÜ band saw blade monitoring limit switch
- Adjustable front saw blade guide
- Adjustable tensioning bearing front/rear
- Chip scraper/grip guard
- Chip brush
- Saw blade guard with limit switch
- AutoOFF automatic switch-off
- Emergency stop / zero voltage release
- Saw frame with tapered roller bearings
- Sheet steel base
- Bimetal Cobalt band saw blade
- Tool/Operating instructions/CE -
Technical data
Round tube cutting range at 0° Max. 230 mm Round tube Cutting range with 45° right-hand mitre Max. 150 mm Round tube cutting range with 60° right-hand mitre Max. 90 mm Square tube cutting range at 0° Max. 220 mm Square tube Cutting range with 45° right-hand mitre Max. 145 mm Square tube cutting range at 60° right-hand mitre Max. 85 mm Rectangular tube Cutting range at 0° Max. 245x160 mm Rectangular tube Cutting range with 45° right-hand mitre Max. 200x140 mm Saw blade length 2450 mm Saw band height 27 mm Saw blade thickness 0.9 mm Cutting thickness 1.2 mm Vise opening max. 260 mm Cutting angle 0 - 60 ° Speed levels 2 Cutting speed 1: min. 36 / 2: max. 72 m/min Band saw blade drive Motor power 1100 W Coolant pump Engine output 32 W Mains connection 400/50 V/Hz Inlet height 900 mm Length 1549 mm Height 1650 mm Weight 216 kg
