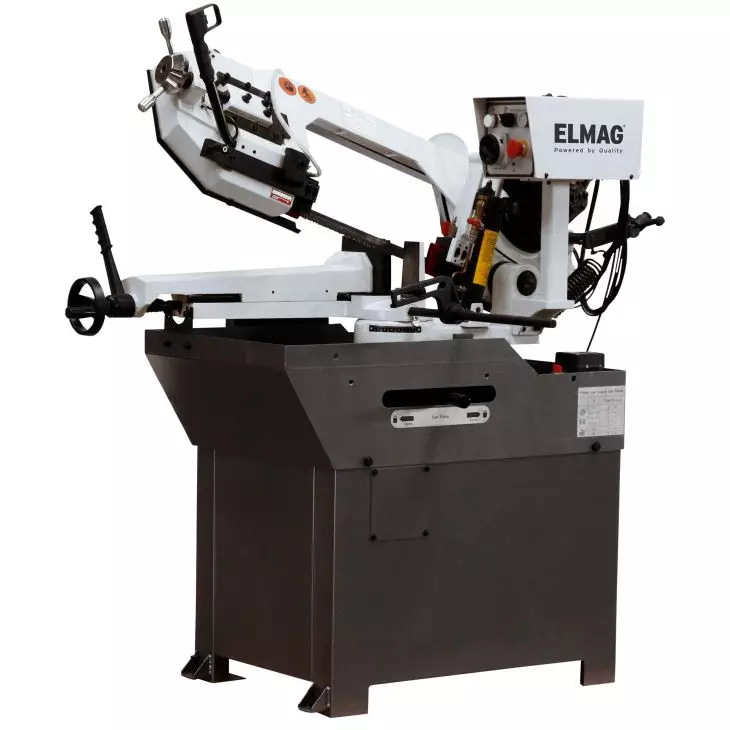

Mitre band sawing machine CY 260x200 G - Precise, powerful and versatile

TheMitre band sawing machine CY 260x200 G is the ideal solution for precise and efficient cutting in steel, stainless steel, aluminium and non-ferrous metals. Thanks to its robust design, powerful drive motor and high-quality guide systems, it offers maximum stability and durability. With a cutting speed of36 / 72 m/min and a cutting range up to260 x 200 mm it is perfectly suited for professional use inWorkshops, industry and metal construction.

Precision and performance in perfection

TheCY 260x200 G impresses with a swivelling saw arm for mitre cuts from 0° to 60°, an automatic lowering system with control valve and aCooling system-supported band saw blade for clean and burr-free cuts. A centrally positioned control panel, aAutoOFF automatic switch-off and a stable design ensure safe, simple and efficient work - even with demanding workpieces.

Advantages of the CY 260x200 G mitre band sawing machine

• ✔Powerful drive motor - Ensures smooth running and high cutting performance
• ✔Central control panel - Intuitive control of all functions
• ✔Adjustable saw blade guide Front with gripper guard
• ✔Swivelling saw frame - Mitre cuts up to 60°
• ✔Fixed vice for precise hold
• ✔Carbide band saw blade guides for precise cutting
• ✔Large dimensioned lowering cylinders for even cutting movement
• ✔AutoOFF automatic switch-off - stops the machine after the cut
• ✔Efficient cooling - Electric pump and flexible cooling line
• ✔Quick belt change through easily accessible flap

Standard equipment

• Soft-close mechanism with control valve
• Quick-clamping vice with lever
• Bar stop with material stop
• Angle quick release and angle scale
• Oil bath for permanent lubrication
• Central control panel with ERGO operating lever
• Cooling system with electric pump
• Saw band wheels with precision bearings
• Saw blade track adjustment with disc spring assembly
• Saw blade monitoring with limit switch
• Chip scraper, gripper guard and chip brush
• AutoOFF automatic switch-off
• Saw frame with tapered roller bearings
• Sheet steel base with chip tray
• Bimetal Cobalt band saw blade

Technical data - Mitre band sawing machine CY 260x200 G

Areas of application

• ✔ Metal construction, locksmiths and workshops
• ✔ Mechanical and plant engineering
• ✔ Steel construction and profile processing
• ✔ Training companies and training workshops
• ✔ Maintenance, assembly and production

Conclusion

TheMitre band sawing machine CY 260x200 G stands forPerformance, precision and durability. Whether for mitre, series or precision cuts - this machine delivers consistently clean results. With its robust design, automatic switch-off and powerful motor performance, it is theperfect choice for professional users in metal construction and mechanical engineering.

CY 260x200 G - Precision, performance and reliability in a compact mitre bandsaw.
