ELMAG Milling and Drilling Machine 45 mm – Precision & Performance | 12 Speeds

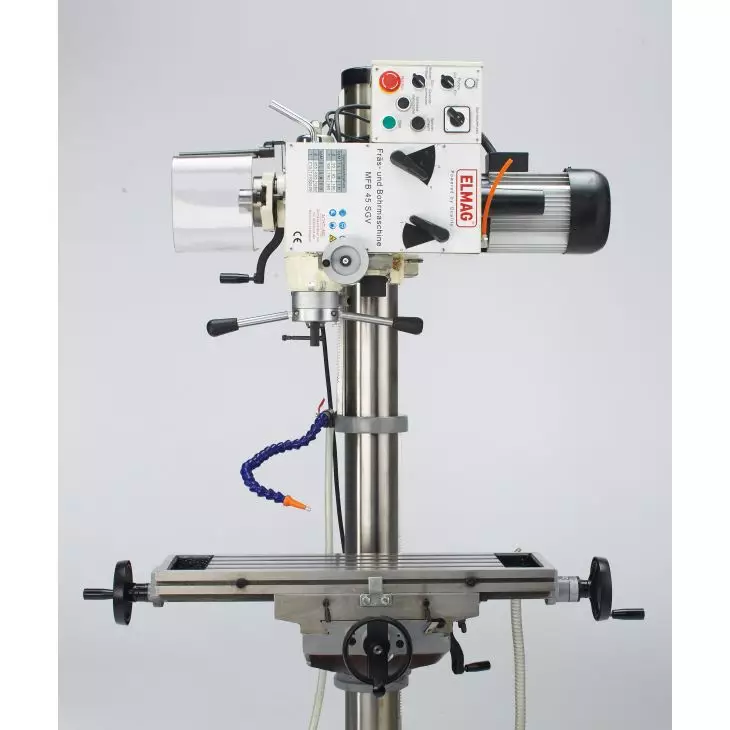

ELMAG geared milling and drilling machine - precision, performance and versatility
TheELMAG milling and drilling machine with 45 mm drilling capacity in steel is a powerful and precise machine for professional use in theMechanical engineering, toolmaking and in industrial metalworking. It impresses with its solid construction, infinitely variable speed adjustment and precise milling properties for the highest demands.
Robust technology for precise work
With aDrilling capacity of 45 mm in steel and aMilling capacity up to 80 mm (face milling cutter) the machine offers the perfect combination of stability and efficiency. Theswivelling milling head ± 90 with automatic height adjustment ensures flexible processing options. Thanks to its solid construction with precision bearings and micro feed, it guarantees consistent accuracy over the long term.
Advantages of the ELMAG milling and drilling machine
- ✔Drilling performance in steel: 45 mm
- ✔Milling capacity Ø 80 mm (face milling cutter) / Ø 32 mm (end milling cutter)
- ✔12 speed levels from 75 - 3,200 rpm for precise cutting speeds

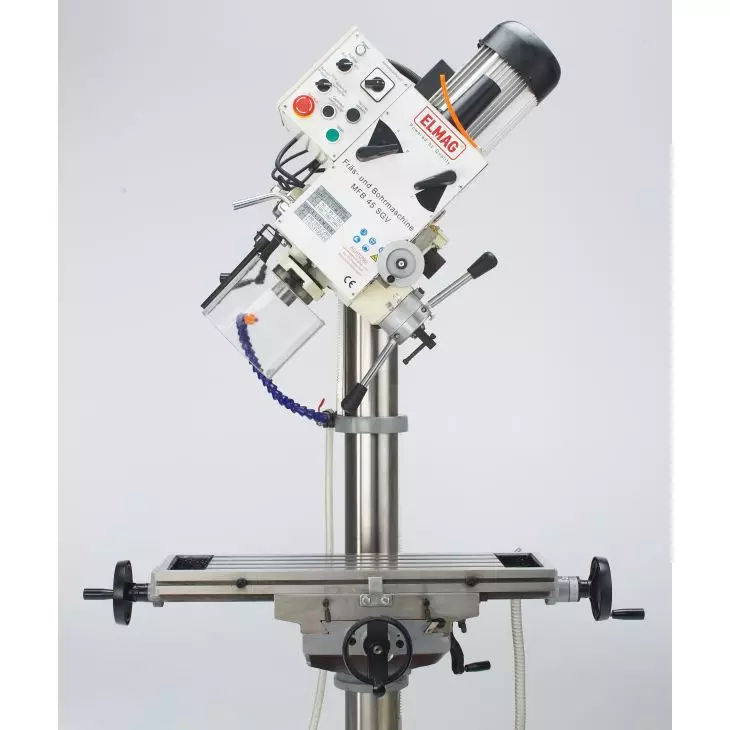

- ✔Swivelling milling head ±90° with automatic height adjustment

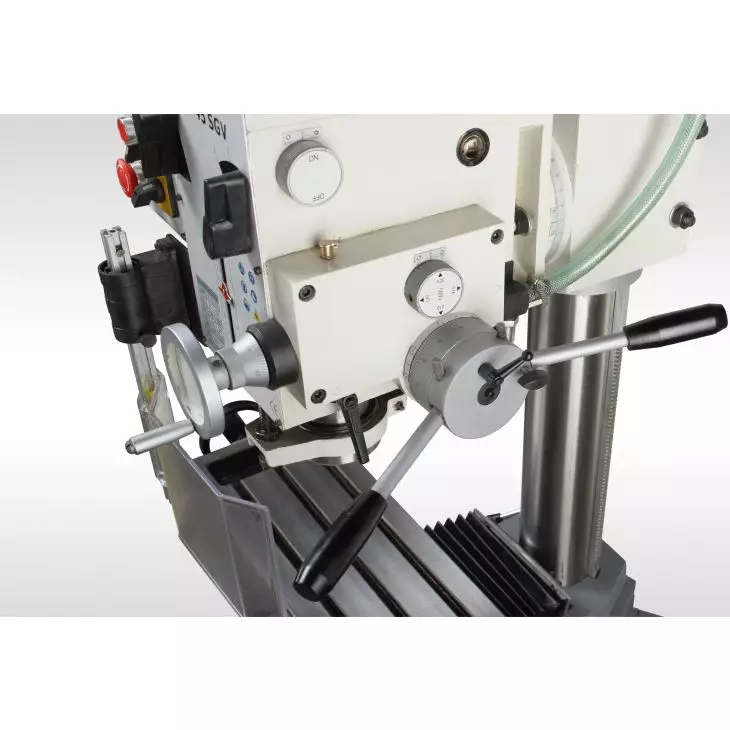

- ✔Precision microfeed for sensitive work
- ✔Clockwise and anti-clockwise rotation with thread cutting mode
- ✔Integrated coolant system with return and tank in the machine base
- ✔Smooth-running cross table with T-slots and coolant channel
- ✔Milling spindle with precision bearing - Low-vibration and durable
- ✔Drilling depth scale, drill stop, emergency stop and zero-voltage release
Standard equipment
- Quick-action drill chuck B16, 1-16 mm
- Tapered mandrel MK4 / B16, IG M16
- Reducing sleeve MK4 / MK3
- Reducing sleeve MK4 / MK2
- Tightening spindle M16
- Tool set
- Operating instructions / CE certificate
Technical data - ELMAG 45 mm milling and drilling machine
| Technical feature | Value / Description |
|---|---|
| Drilling performance in steel | 45 mm |
| Tapping performance | M20 |
| Milling performance face milling cutter / end milling cutter | Ø 80 / Ø 32 mm |
| Spindle holder | MK 4 |
| Speed range 1 | 75 - 1,600 rpm |
| Speed range 2 | 150 - 3,200 rpm |
| Speed levels | 12 |
| Quill stroke | 120 mm |
| Column diameter | 115 mm |
| T-slots, width | 14 mm |
| Milling head stroke | 440 mm |
| Spindle projection | 270 mm |
| Milling head swivelling range | ± 90° |
| Quill distance table | 0 - 790 mm |
| Quill spacing base | 1,280 mm |
| Quill feed | 0.10 / 0.18 / 0.28 mm/rev (3 levels) |
| Milling table surface | 730 × 210 mm |
| Table travel (X × Y) | 375 × 200 mm |
| Milling table stroke (Z) | 515 mm |
| Engine power | 2-stage 1,100 / 850 W |
| Coolant pump | 40 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 730 × 210 × 790 mm |
| Machine dimensions (L × W × H) | 1,115 × 1,100 × 2,110 mm |
| Weight | 350 kg |
Areas of application
- Mechanical engineering and toolmaking
- Precision mechanics and metalworking
- Training and apprenticeship workshops
- Prototype construction and small series production
Conclusion
TheELMAG milling and drilling machine 45 mm stands for maximum precision, flexibility and durability. With its robust design, sensitive feed control and powerful motor, it is ideal for precise drilling and routing work in professional workshops. A real all-rounder for demanding applications in theMachine and tool construction.
Manufacturer: ELMAG - Quality and precision in metalworking.
