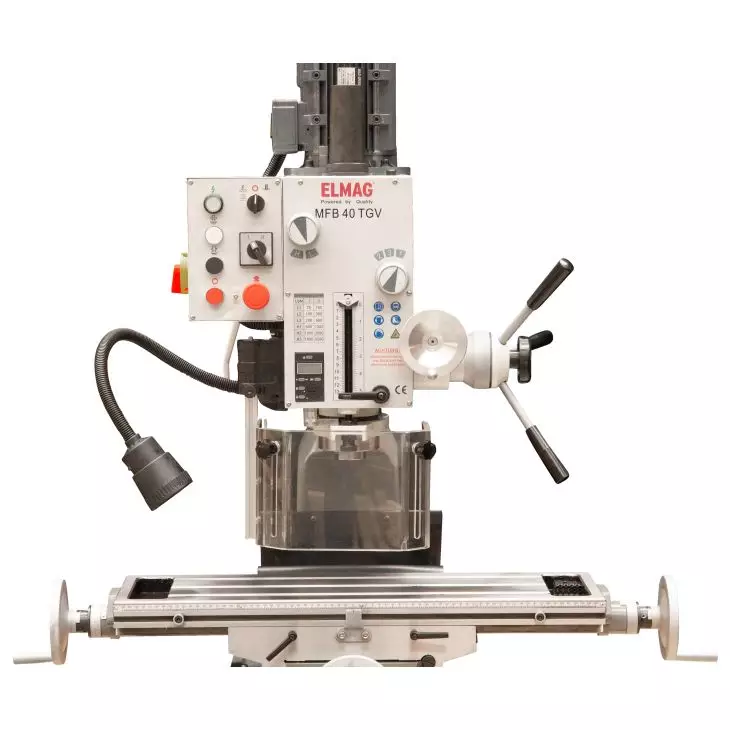

ELMAG Milling and Drilling Machine 40 mm – Precision & Performance | Oil Bath Gearbox | Elmag Start Up Service
€3,350.00
Free shipping
Available, delivery time: 2-5 days
Description
ELMAG Milling and Drilling Machine 40 mm – Precision & Performance | Oil Bath Gearbox | Elmag Start Up Service
ELMAG geared milling and drilling machine - 40 mm drilling capacity in steel with Elmag Start Up Service
TheELMAG gearbox milling and drilling machine 40 mm is a high-precision, professional machine for workshops, mechanical engineering and industrial metalworking. Thanks to the high-performance gearbox running in an oil bath, the robust cast housing and the precise spindle bearings, it guarantees a long service life, maximum concentricity and consistently accurate results.
Elmag Start Up Service - Ready for operation ex works
The machine is supplied with the exclusiveElmag Start Up Service delivered and isReady for immediate use:
- ✔ With oil filling - lubricated ready for use
- De-preserved (degreased and cleaned)
- ✔ Fully assembled and aligned
- ✔ Test run and function test performed
This saves you time and you can start work immediately after delivery - ideal for professional users and industrial production.
Precision and performance for the highest demands
With aDrilling capacity of 40 mm in steel and oneMilling capacity up to 76 mm (face milling cutter) the machine delivers impressive processing results. TheGear drive running in an oil bath ensures constant power transmission, while thePrecision microfeed and the high-quality spindle bearing enable precise drilling and milling operations.
Advantages of the ELMAG geared milling and drilling machine
- ✔Drilling performance in steel: 40 mm
- ✔Milling capacity Ø 76 mm (face milling cutter) / Ø 32 mm (end milling cutter)
- ✔6 speeds from 75 - 1,600 rpm for flexible working
- ✔Right/left rotation incl. thread cutting mode
- ✔Precision microfeed for precise drilling and milling
- ✔Milling spindle with precision bearing - Durable and smooth-running
- ✔Integrated coolant system with return and tank in the machine base
- ✔Smooth-running cross table with T-slots and coolant channel
- ✔Drilling depth scale and stop for precise depth control
- ✔High-performance gearbox running in an oil bath for quiet and low-wear operation
- ✔Emergency stop button / zero-voltage release for maximum safety
Standard equipment
- Quick-action drill chuck B 16 (1 - 16 mm)
- Tapered mandrel MK 4 / B 16, IG M16
- Reducing sleeve MK 4 / MK 3
- Reducing sleeve MK 4 / MK 2
- Tightening spindle M16
- Tool set
- Operating instructions / CE certificate
Technical data - ELMAG Milling and drilling machine 40 mm
| Technical feature | Value / Description |
|---|---|
| Drilling performance in steel | 40 mm |
| Milling performance (face milling cutter / end milling cutter) | Ø 76 / Ø 32 mm |
| Spindle holder | MK 4 |
| Speed range 1 | 75 - 1,600 rpm |
| Speed range 2 | 150 - 3,200 rpm |
| Speed levels | 6 |
| Quill stroke | 120 mm |
| T-slots, width | 14 mm |
| Milling head stroke | 450 mm |
| Spindle projection | 210 mm |
| Milling head swivelling range | ± 45 ° |
| Quill distance table | 25 - 450 mm |
| Quill feed | 0.10 / 0.18 / 0.28 mm/rev (3 levels) |
| Milling table surface | 730 × 210 mm |
| Table travel (X × Y) | 500 × 210 mm |
| Engine power | 1.500 W |
| Mains connection | 400 V / 50 Hz |
| Machine dimensions (L × W × H) | 850 × 760 × 1,150 mm |
| Weight | 260 kg |
Areas of application
- Machine and tool construction
- Precision mechanics and precision manufacturing
- Repair and maintenance companies
- Training and apprenticeship workshops
Conclusion
TheELMAG milling and drilling machine 40 mm offers a perfect balance between precision, performance and ease of use. With theElmag Start Up Service it is delivered ready for operation - switch on, check, work! Whether for series production, metalworking or precision construction - this high-tech machine impresses with maximum efficiency and durability.
Manufacturer: ELMAG - Precision machines and workshop equipment for industry and trade.
