Elmag MIG/MAG welding machine - 0.5-8mm / 14.8V - 24V / 400V
€1,660.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE54016
Description

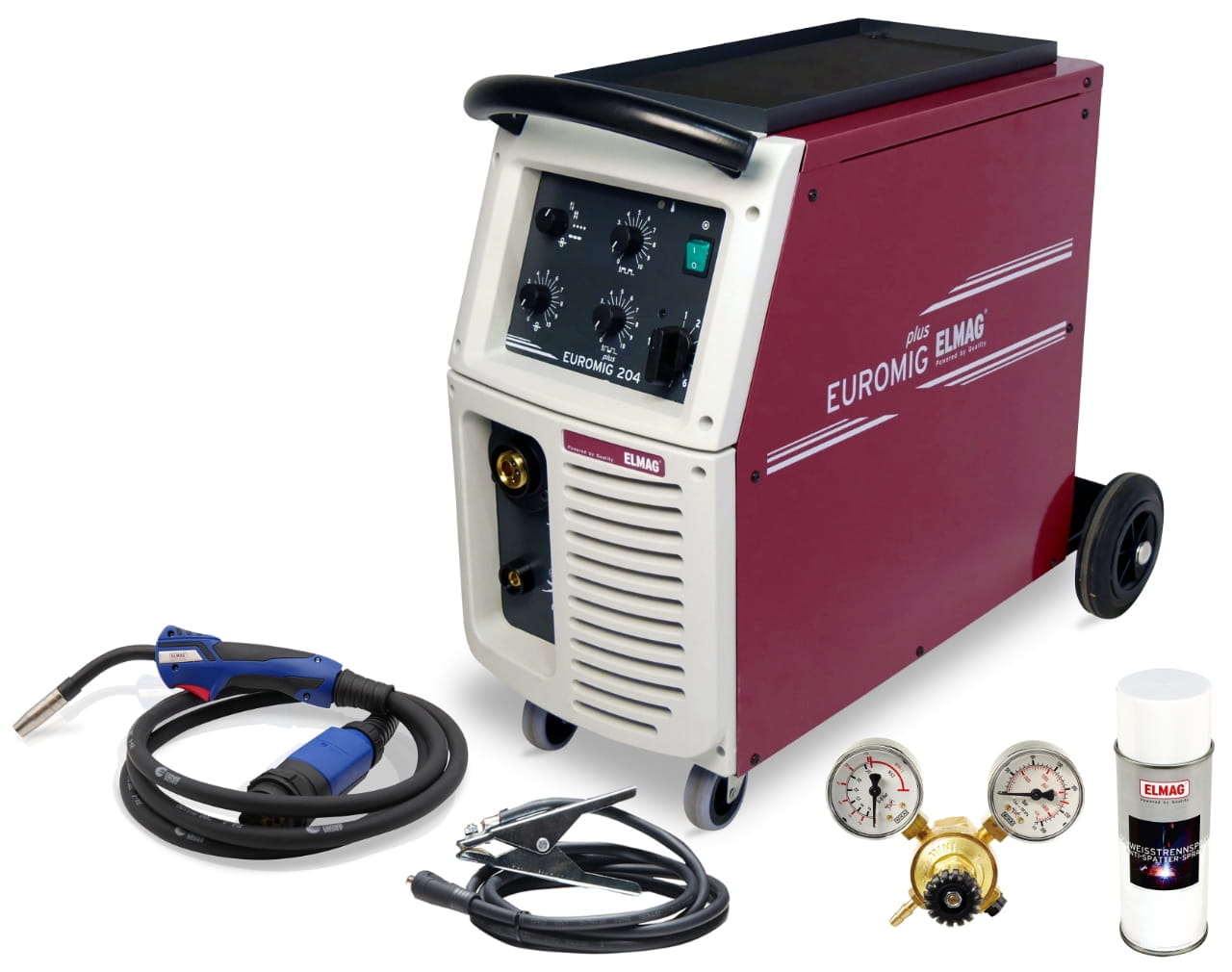

Elmag MIG/MAG welding machine - 0.5-8mm / 14.8V - 24V / 400V
-
EUROMIGplus standard equipment
- Original BINZEL hose package MB EVO 15 / 3 m
- Earth cable with welding cable plug / earth terminal
- Pressure regulator with 2 pressure gauges Ø 50 mm
- Feed rollers Wire diameter 0.8 / 1.0 mm
- Wire spool adapter 5 kg / 200 mm
- Wire spool adapter 15 kg / 300 mm
- Release spray for welding nozzles
- Operating instructions / CE -
Materials
- Steel
- CrNi -
EUROMIGplus - The most important thing is inside
1. all EUROMIGplus models have a main transformer with high-quality aluminium winding, winding materials - insulation class H (180°C)
2. optimally dimensioned silicon plate rectifier for maximum welding current quality -
Technical data
Material thickness 0.5 - 8 mm Steel / stainless steel wire diameter 0.6 - 1.0 mm Welding voltage setting range 14,8 - 24 V Aluminium wire diameter 1.0 - 1.2 mm Welding rod reel diameter 200 / 300 mm Welding rod roll weight 5/15 kg Welding current setting range 15 - 200 A Welding current switching stages 10 no. Earth connection plug / cross-section 9 / 25 Ø / mm² Duty cycle (10 min at 40°C) at max. welding current 20 / 200 % / A Power consumption max 12 A Mains connection / phases 400 / 3 V / ~ Mains frequency 50 Hz Mains fuse inert 16 AT Protection class (IP) 21 S Feed drive 2 rolls Connector plug CEE 16 A Depth 750 mm Height 640 mm Weight 70 kg
