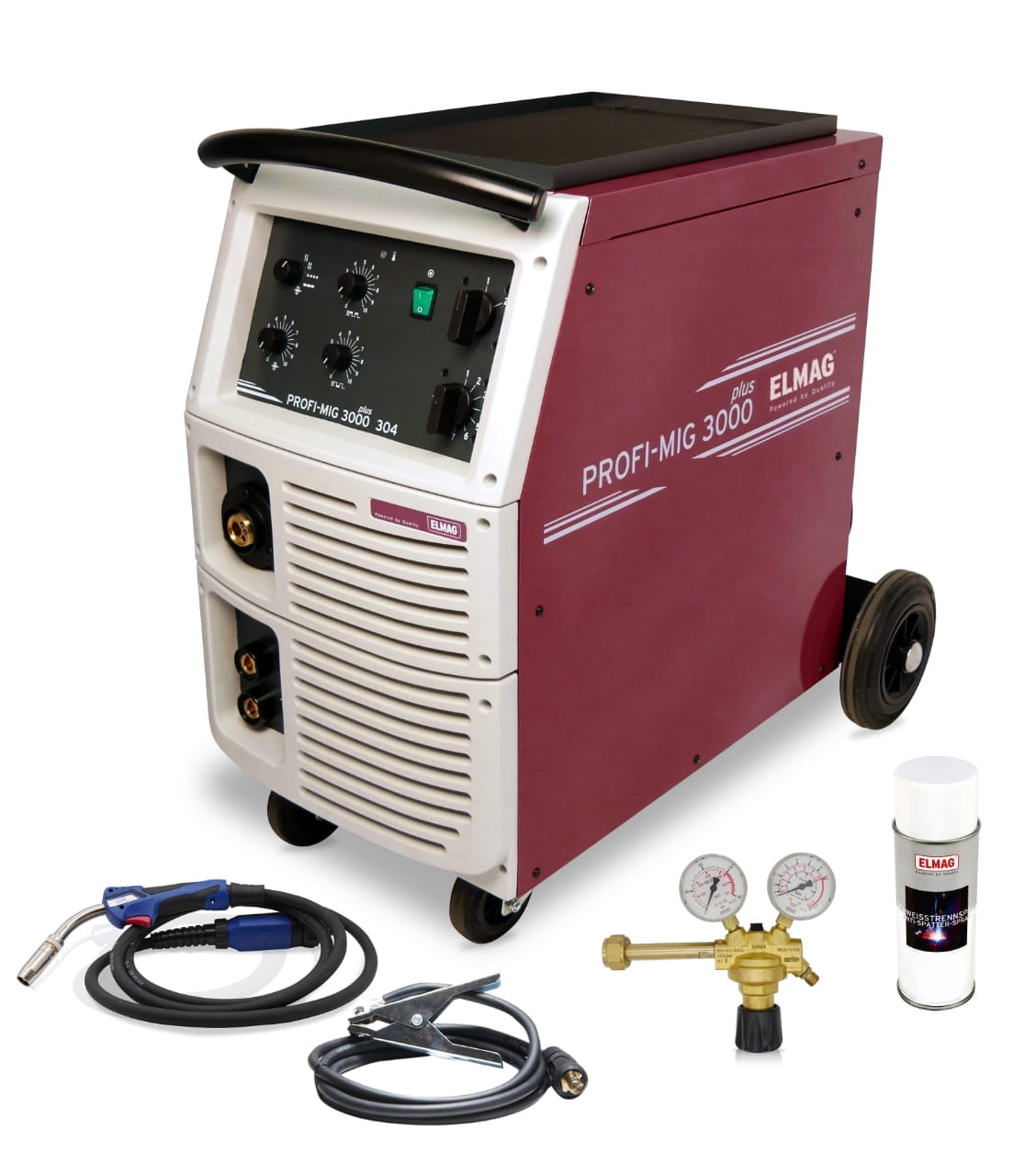

Elmag MIG Gas Shielded Welding Machine - 30-300A / 0.5-12mm / 400V
€1,990.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE54008
Description
Elmag MIG Gas Shielded Welding Machine - 30-300A / 0.5-12mm / 400V
-
PROFIMIGplus standard equipment
- Original BINZEL hose package MB EVO 25 / 4 m
- Earth cable with welding cable plug / earth terminal
- Pressure regulator with 2 pressure gauges Ø 60 mm
- Feed rollers Wire diameter 0.6 / 0.8 mm
- Feed rollers Wire diameter 1.0 / 1.2 mm
- Wire spool adapter 5 kg / 200 mm
- Wire spool adapter 15 kg / 300 mm
- Release spray for welding nozzles
- Operating instructions / CE -
Special accessories (optionally available)
- Mixed gas 82% Ar / 18% CO2, 20 litres filled
- Steel welding rod SG2 (G3 Si 1) 1.0 mm / 15 kg -
Materials:
- Steel
- CrNi
- Aluminium -
Advantages
- 1. ergonomic control panel, angled arrangement
2. operating mode switch:
2-cycle welding mode for tack welding work,
4-cycle welding mode for long welding distances
Spot welding mode selection
Interval welding mode selection
Wire feed without gas consumption
3rd tap changer
4. stepless wire feed regulator
5. automatic spot welding stepless
6. stepless automatic interval welding
7. main switch with operating lamp
8. temperature control lamp - overload protection incl. automatic reset, thermal sensor integrated in transformer winding - 9. tool tray with anti-slip coating
- 10. ground fine/coarse socket Ø 13 mm, 35/50 mm² for throttling
11. hose package connection EURO standard for BINZEL
12. high-performance transformer with first-class, rear-ventilated copper winding, winding materials insulation class H (180°C)
13. optimally dimensioned silicon plate rectifier for maximum welding current quality
14. wire feed gear drive, four rollers
15. powerful cooling fans, thermal overload protection -
Technical data
Material thickness 0.5 - 12 mm Steel / stainless steel wire diameter 0.6 - 1.2 mm Welding voltage setting range 15,5 - 29 V Aluminium wire diameter 1.0 - 1.2 mm Welding rod reel diameter 200 / 300 mm Welding rod roll weight 5/15 kg Welding current setting range 30 - 300 A Welding current switching stages 2 x 10 No. Earth connection plug / cross-section 13 / 50 Ø / mm² Duty cycle (10 min at 40°C) at welding current 165 A Duty cycle (10 min at 40°C) at max. welding current 30 / 300 % / A Power consumption max 20,2 A Mains connection / phases 400 / 3 V / ~ Mains frequency 50 Hz Mains fuse inert 16 AT Protection class (IP) 21 S Feed drive 4 rolls Connector plug CEE 16 A Depth 850 mm Height 780 mm Weight 95 kg
