Elmag MIG Gas Shielded Welding Machine - 25-250A / 0.5-10mm / 400V
€1,890.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE54017
Description
Elmag MIG Gas Shielded Welding Machine - 25-250A / 0.5-10mm / 400V
-
EUROMIGplus standard equipment
- Original BINZEL hose package MB EVO 25 / 3 m
- Earth cable with welding cable plug / earth terminal
- Pressure regulator with 2 pressure gauges Ø 50 mm
- Feed rollers Wire diameter 0.6 / 0.8 mm
- Feed rollers Wire diameter 1.0 / 1.2 mm
- Wire spool adapter 5 kg / 200 mm
- Wire spool adapter 15 kg / 300 mm
- Release spray for welding nozzles
- Operating instructions / CE -
Special accessories (optionally available)
- Mixed gas 82% Ar / 18% CO2, 20 litres filled
- Steel welding rod SG2 (G3 Si 1) 1.0 mm / 15 kg -
Examples of use:
- Motor vehicle companies
- Facade construction
- Tinsmiths
- Training workshops
- Hobby workshops -
Materials
- Steel
- CrNi -
EUROMIGplus - The most important thing is inside

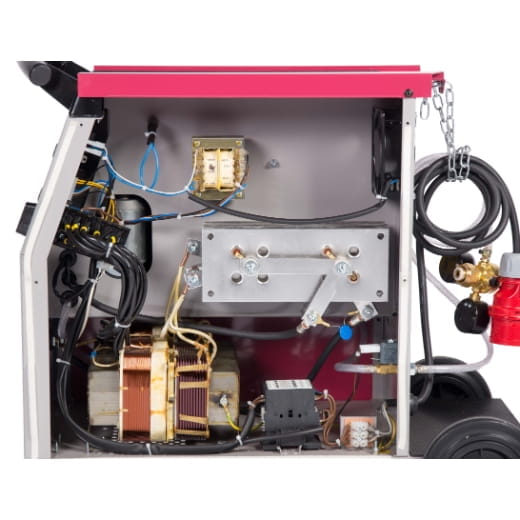

1. all EUROMIGplus models have a main transformer with high-quality aluminium winding, winding materials - insulation class H (180°C)
2. optimally dimensioned silicon plate rectifier for maximum welding current quality -
Technical data
Material thickness 0.5 - 10 mm Steel / stainless steel wire diameter 0.6 - 1.2 mm Welding voltage setting range 15,25 - 26,5 V Aluminium wire diameter 1.0 - 1.2 mm Welding rod reel diameter 200 / 300 mm Welding rod roll weight 5/15 kg Welding current setting range 25 - 250 A Welding current switching stages 10 no. Earth connection plug / cross-section 9 / 25 Ø / mm² Duty cycle (10 min at 40°C) at max. welding current 20 / 250 % / A Power consumption max 16 A Mains connection / phases 400 / 3 V / ~ Mains frequency 50 Hz Mains fuse inert 16 AT Protection class (IP) 21 S Feed drive 2 rolls Connector plug CEE 16 A Depth 750 mm Height 640 mm Weight 75 kg
