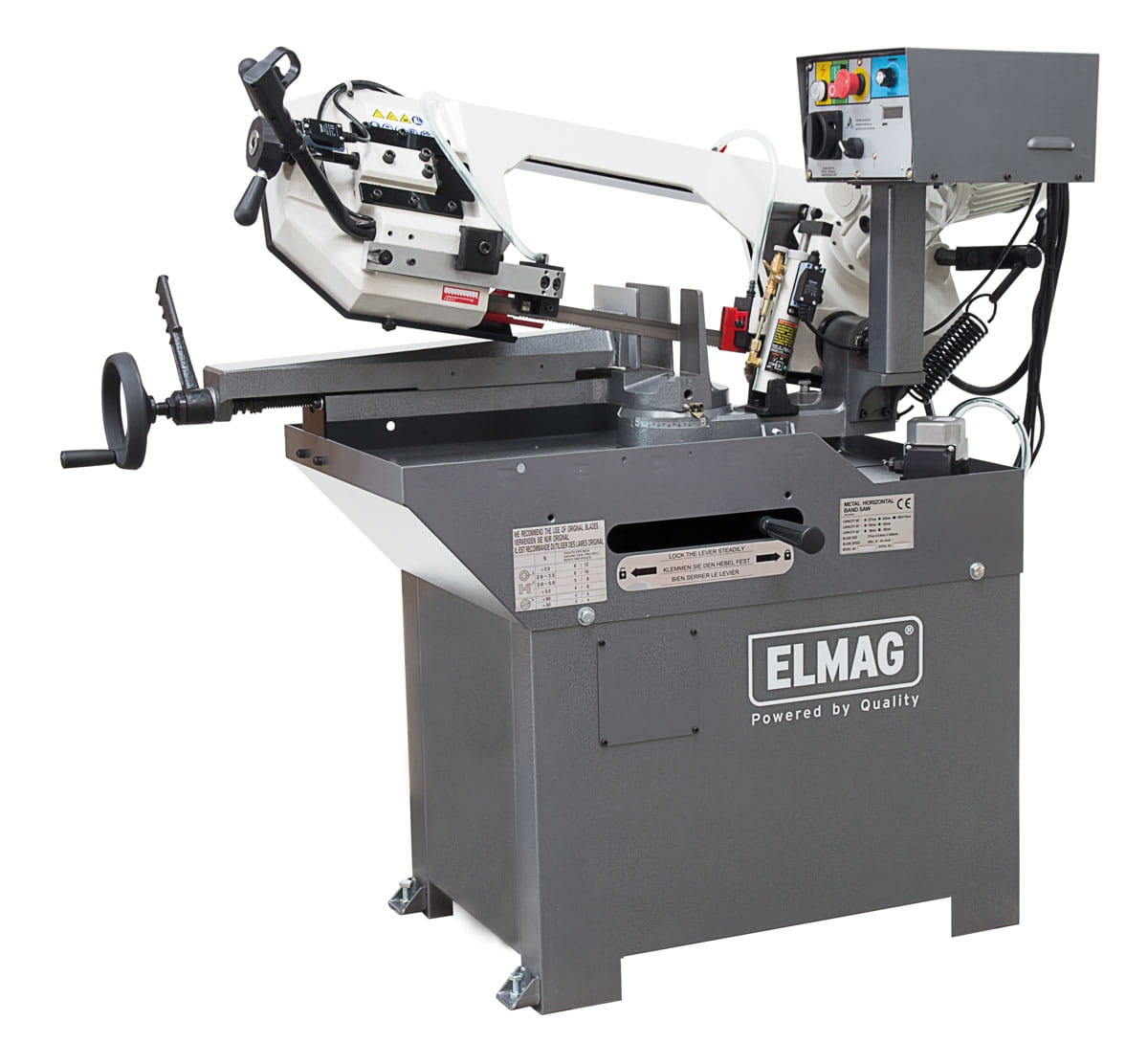

Mitre bandsaw CY 170 - precision and performance for professional metal cutting

TheMitre band sawing machine CY 170 impresses with its robust design, precise cutting action and flexible application options. With aCutting range of up to 170 mm it is ideal for workshops, locksmiths, machine and metal construction companies that need to make precise mitre and parting cuts in different materials.

CY models - precision, stability and reliability

TheCY band saws have stood for quality and reliability in metalworking for years. Thanks to theRotatable saw blade frame and the sturdy design, one-sided mitre joints of0° to 60° precisely and repeatably. TheCompact gearbox in oil bath ensures long-lasting lubrication and quiet, low-vibration operation, while thePowerful 750 watt motor ensures sufficient power reserves even with thick-walled material.

TheCY 170 has aHydraulic soft-close mechanism with infinitely variable feed control and aCooling system with electric pump - for optimum cutting conditions, extended tool life and clean cutting surfaces. The combination of ergonomic operation, robust design and intelligent mechanics makes this saw one of the best in its class.

Advantages of the CY 170 mitre bandsaw

• ✔Infinitely variable cutting speed (20-85 m/min) for various materials
• ✔Hydraulic soft-close mechanism for even feed and a clean cutting pattern
• ✔Rotatable band saw frame for mitre cuts from 0° to 60°
• ✔Compact gearbox with oil filling - Low-maintenance and durable
• ✔High-quality saw blade guide with precision bearings
• ✔Quick-action vice with lever operation for quick fixing of the workpiece
• ✔AutoOFF automatic switch-off at end of cut
• ✔Plug & Play - ready for operation with oil filling and high-quality bi-metal cobalt saw blade
• ✔Safety equipment with limit switch, emergency stop and zero voltage release
• ✔Ideal for workshops, mechanical engineering and metal construction

Standard equipment

• Soft-close mechanism with control valve
• Quick-action vice
• Quick-release lever
• Bar stop with material stop
• Angle quick release with angle scale
• Compact gearbox with oil filling

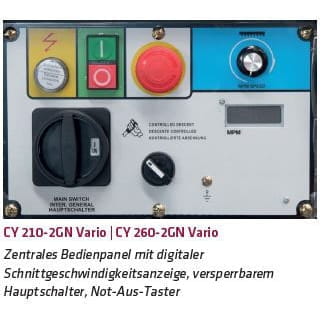

• Central control panel
• ERGO operating lever (on/off)
• Cooling system with electric pump
• Saw band wheels with precision bearings
• Saw blade track adjustment
• Saw blade tensioner with disc spring assembly
• Adjustable front saw blade guide
• Adjustable tensioning bearing front/rear
• Chip scraper and chip brush
• Saw blade guard with limit switch
• AutoOFF automatic switch-off
• Emergency stop / zero voltage release
• Sheet steel base with robust chip tray
• Bimetal Cobalt band saw blade

Areas of application

• Metal and mechanical engineering
• Pipeline construction and plant engineering
• Car and body shops
• Locksmiths, blacksmiths, tinsmiths
• Construction and insulation companies
• Industrial and workshop production

Technical data - Mitre bandsaw CY 170

Conclusion

TheMitre band sawing machine CY 170 combines robustness, precision and user-friendliness in a compact design. With infinitely variable speed control, precise belt guidance, hydraulic lowering and a high level of safety equipment, it is the perfect solution for professional metal processors. Whether for one-off production or series cutting - theCY 170 delivers consistently clean, accurate and economical results.

CY 170 - The powerful mitre bandsaw for precise metal cutting in workshops and industry.
