Elmag Mechanical Sheet Metal Shear 2550-4mm

Elmag mechanical sheet metal shears 2550-4mm - Precision, performance and stability for professional sheet metal working

TheElmag mechanical plate shears 2550-4mm is a powerful, robust and precise machine, developed for professional use in workshops, metal construction and industrial production. With itsCutting length of 2,550 mm and oneCutting capacity up to 4 mm material thickness it offers maximum precision, repeat accuracy and durability for demanding cutting work.

Highest quality standards and precise execution

• WeldedMonobloc steel construction - Low-vibration, dimensionally stable and durable
• Can be used on both sides,Hardened special steel knives for perfect cutting quality

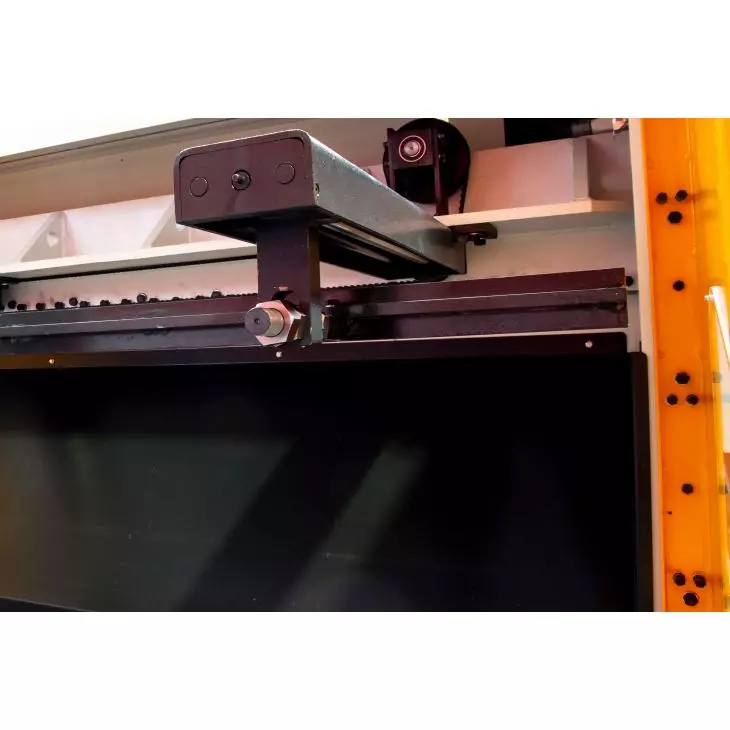

• Precise backgauge with handwheel and measuring scale (0-750 mm) for precise series processing
• Manual kerf adjustment for optimum adaptation to different sheet thicknesses
• Parallel guidance of the knives for clean and straight cutting edges

NC control (optional for NC models)

TheNC version of the Elmag guillotine shears is equipped with a state-of-the-artELGO NC control which enables precise programming and automatic adjustment of the backgauge.

• Numerical control with digital cutting length input
• 99 memory locations for frequent editing programmes
• Display optionally in millimetres or inches
• Simple operation at the touch of a button

Elmag start-up service - With ELMAG® quality check

EachElmag mechanical plate shears is checked before delivery as part of theELMAG® Start-Up Service fully tested, assembled and made ready for operation. This service guarantees the highest quality, precision and immediate operational readiness.

• De-preservation, degreasing and assembly of all components
• Oil filling, lubrication and adjustment of the cutting gap
• Testing of all electrical and mechanical safety components
• Test run at all performance levels
• 30-minute load test at full load
• Quality check according to CE guidelines and functional approval

Note: When buying withELMAG® Start-Up Service the delivery time is extended by approx.2-3 weeksas each machine is individually tested and prepared.

CE-certified safety and modern operation

• Cutting gap cover for maximum safety
• Light curtain on the back of the machine
• Emergency stop button on machine and control unit
• LED illumination of the cutting line for optimum visibility
• MobileControl column with foot release and control console LRGM

Performance features of the Elmag sheet metal shears 2550-4mm

• Cutting length: 2,550 mm - perfect for standard sheet formats
• Cutting performance: up to 4 mm at 42 kg/mm² tensile strength
• Cutting speed: 41 strokes per minute
• Engine power: 7.5 kW - powerful for continuous industrial use
• Backgauge: Adjustment range 0-750 mm
• Optimum parallel guidance for perfect cutting edges
• Compatible with lubricating oils according toDIN 51517 - All approvals available for oils

Technical data - Elmag mechanical plate shears 2550-4mm

Standard equipment

• Special steel blades that can be used on both sides
• Side stop and support arms
• LED illumination of the cutting line
• Manually adjustable back gauge
• CE safety devices

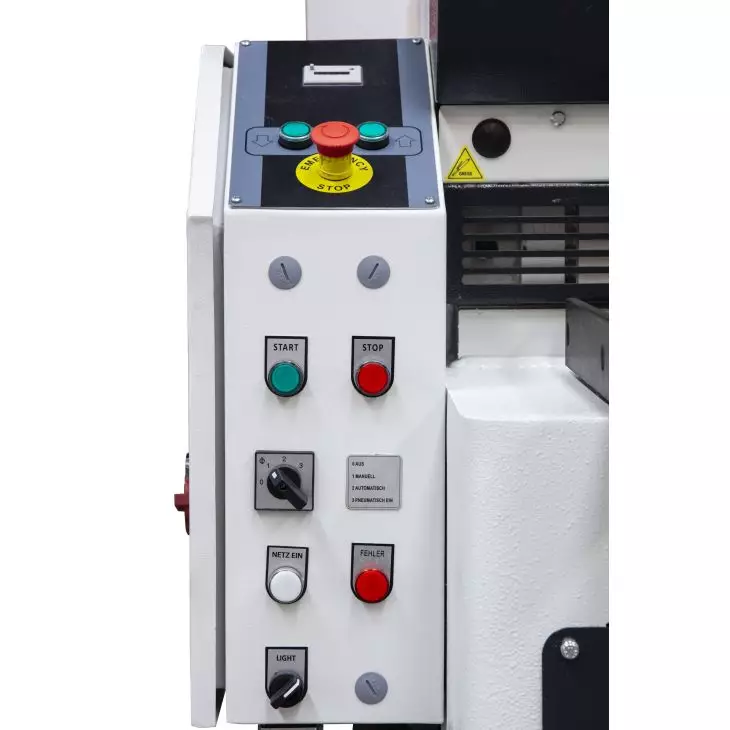

• LRGM control panel and mechanical stroke counter
• Mobile operating column with foot release and emergency stop button
• Operating instructions / CE certification

Conclusion

TheElmag mechanical plate shears 2550-4mm offers maximum precision, high performance and maximum reliability - ideal for professional metalworking. In conjunction with theELMAG® Start-Up Service you get a tested, ready-to-use machine that raises productivity and safety to a new level.

Elmag Mechanical Sheet Metal Shears 2550-4mm - Power, precision and proven ELMAG® quality for your workshop.
