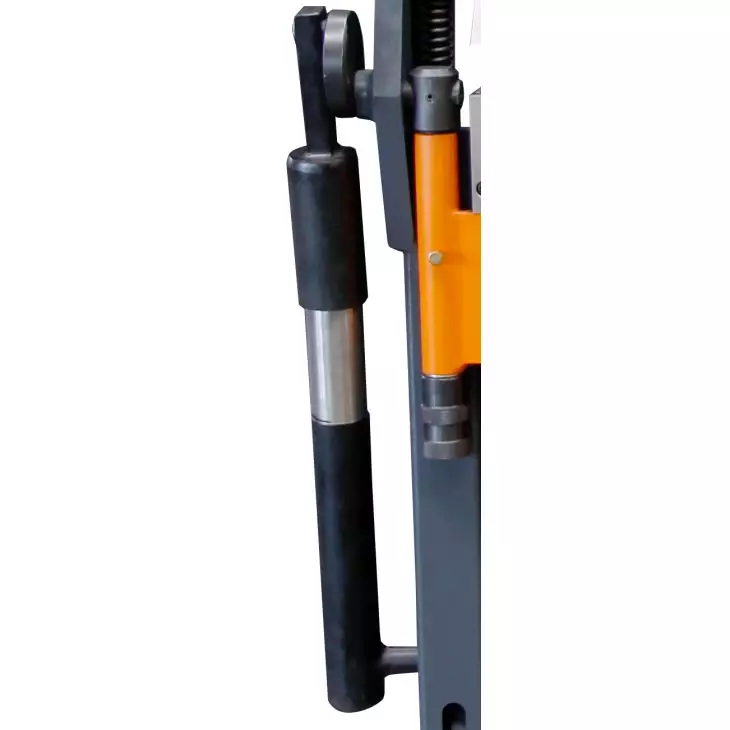

Elmag Manual Swivel Bending Machine SBM 1270x2.0 HSS

Elmag manual folding machine SBM 1270x2.0 HSS - Highest precision for professional metalworking

TheElmag SBM 1270x2.0 HSS is a high-qualityManual swivelling bending machinefor precise bending work on sheet metal up to a thickness of2.0 mm was designed. Thanks to theextended segmentation of the upper and bending beam, it offers maximum flexibility and allows even complex bends and special shapes. With its robust design, ergonomic operation and precise mechanics, it is the perfect tool forMetalworkers, coachbuilders, tinsmiths and roofers.

The machine impresses with its sophisticatedEasy bending systemwhich is supported by spring-actuated pressure cylinders. This enables particularly gentle, controlled bending and automatic resetting of the bending beam - for precise and reproducible results with minimum effort.

Modern bending technology - optimised handling

• Upper and bending beam segments Removable and movable for versatile bending applications
• Foot pedal control for hands-free working - both hands remain free for material feed
• Non-slip rubber pedal for safe working
• Automatic lifting of the upper cheek after opening
• Spring support for gentle resetting of the bending beam
• Eccentric technology for effortless and even actuation
• Precise adjustment mechanism for different material thicknesses
• Robust steel construction for a long service life

Easy-Bending - support for every application

The SBM 1270x2.0 HSS is equipped with the provenEasy bending system which is spring-loaded. This significantly reduces the force required for bending and at the same time ensures precise, controlled return of the bending beam. This makes the machine ideal for series production, workshops and precise manual work.

Areas of application

• Switch cabinet and housing construction
• Insulation and façade construction
• Car body and vehicle construction
• Locksmiths, metal and tinsmith companies
• Roofing and craft businesses

Advantages of the Elmag SBM 1270x2.0 HSS

• Working length: 1,270 mm - ideal for standard sheets
• Sheet thickness: up to 2.0 mm
• Bending angle: 0° - 135°
• Segmented upper and bending beam: 12 segments each - freely combinable
• Large opening width: 48 mm
• Foot pedal operation: Safe closing and opening of the upper cheek
• Stable monobloc base wall for maximum rigidity
• Low maintenance and durable thanks to high-quality components
• Compatible with lubricating oils according to DIN 51517 (all approvals for oils)

Technical data - Elmag SBM 1270x2.0 HSS

Scope of delivery

• Elmag folding machine SBM 1270x2.0 HSS
• 12 upper cheek segments (removable and movable)
• 12 bending beam segments (can be variably combined)
• Monobloc base wall
• Non-slip foot pedal
• Spring-assisted easy-bending system
• Operating instructions / CE certificate

Safety and maintenance

TheElmag SBM 1270x2.0 HSS is according to the applicableCE directives and fulfils the highest safety standards. For optimum maintenance, lubricants should beDIN 51517 with correspondingApprovals for oils can be used. The robust design and low-maintenance components guarantee a long service life with minimal servicing.

Conclusion

TheElmag SBM 1270x2.0 HSS is the perfect combination of precision, stability and user-friendliness. Thanks to the segmented cheeks on both sides, the eccentric technology and the ergonomic foot pedal, it offers maximum flexibility with maximum accuracy - ideal for demanding workshops and metalworkers.

Elmag SBM 1270x2.0 HSS - precise bending, easy handling, long-lasting quality.
