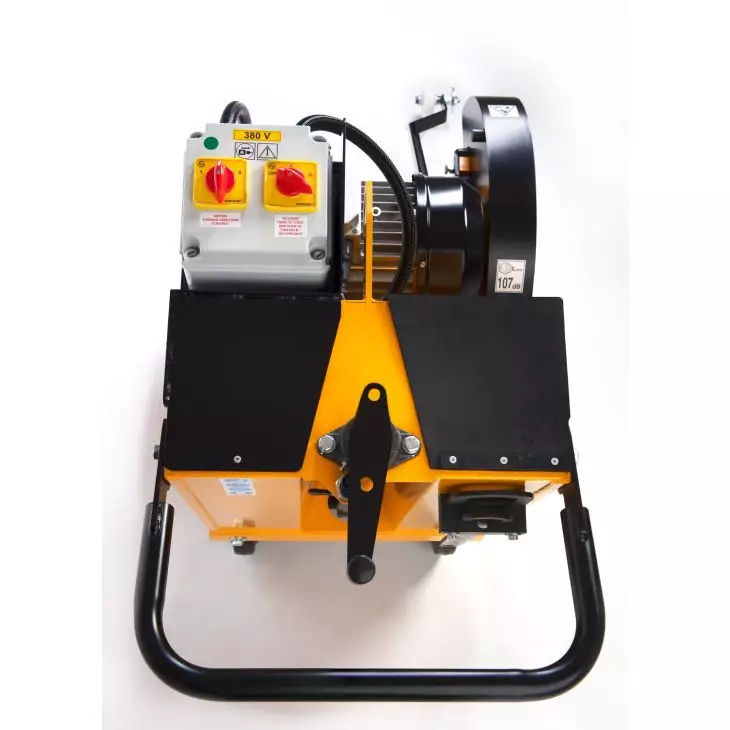

Elmag joint cutter FSE-503 without diamond blade, with 7.5kW/380 Volt electric motor, with integrated 40 liter water tank
€3,210.00
Free shipping
Available, delivery time: 2-5 days
Description
Elmag joint cutter FSE-503 without diamond blade, with 7.5kW/380 Volt electric motor, with integrated 40 liter water tank
Elmag Floor saws FSE-503 - Precise electric floor saws for concrete and asphalt
TheElmag Floor saws FSE-503 is a powerful professional device for the precise cutting ofConcrete, asphalt and stone. Driven by a powerful7.5 kW / 380 V electric motor this machine offers maximum performance with minimum maintenance - ideal for construction sites, workshops and continuous use in professional civil engineering and road construction.
Maximum cutting precision thanks to robust design
TheStable, torsion-resistant machine construction of the FSE-503 ensures straight cuts and maximum precision. The steplessCutting depth adjustment via a spindle enables precise work results with amaximum cutting depth of 187 mm. Self-aligning heavy-duty ball bearings and a perfectWeight distribution guarantee smooth running and safe handling, even during long cutting jobs.
Effective water cooling and convenient operation
TheIntegrated 40-litre water tank ensures an optimalCooling the diamond disc and extends their service life considerably. The improved water distribution ensures clean, low-dust cuts. The machine also has aPrecise cutting depth displayaAdjustable line guidance and aLifting eye for easy transport on the construction site.
High efficiency and safety
The powerful electric motor operates emission-free, quietly and particularly energy-efficiently - ideal for use in enclosed spaces. The robust design in combination with the high-quality ELMAG components ensures a long service life and low operating costs.
Advantages at a glance
- Powerful 7.5 kW electric motor (380 V three-phase current)
- Maximum cutting depth up to 187 mm
- For diamond discs Ø 350 - 500 mm (not included in the scope of delivery)
- Stepless depth adjustment via spindle
- Sturdy, torsion-resistant frame construction
- Self-aligning heavy-duty ball bearings
- 40-litre water tank for effective cutting blade cooling
- Adjustable line guidance for precise cuts
- Cutting depth display for precise control
- Lifting eye for convenient loading
Recommended accessories
The matching diamond disc isNot included in the scope of delivery and can be selected depending on the material:
- For tarmac: Diamond disc 350/400/450/500 mm PREMIUM LINE - ASPHALT
- For concrete: Diamond disc 350/400/450/500 mm PREMIUM LINE - UNI
Technical data - Elmag Floor saws FSE-503
| Category | Technical data |
|---|---|
| Max. Cutting depth | 112 / 138 / 162 / 187 mm |
| Diamond blade Ø (not included in the scope of delivery) | 350 / 400 / 450 / 500 mm |
| Drill hole | 25.4 mm |
| Motor type | Electric motor 380 V three-phase current |
| Performance | 7.5 kW (≈ 10.2 hp) |
| Water tank | 40 litres integrated |
| Dimensions (L × W × H) | 1300 × 580 × 920 mm |
| Weight | 135 kg |
Scope of delivery
- Elmag Floor saws FSE-503 (without diamond blade)
- 380 V electric motor 7.5 kW
- Integrated 40-litre water tank
- Wheel set and lifting eye
Conclusion
TheElmag Floor saws FSE-503 combines powerful electric performance, precise cutting depth adjustment and robust construction in a compact machine. Ideal forProfessional concrete, asphalt and flooring work - Reliable, low-maintenance and precise.
Elmag FSE-503 - Precision, performance and reliability for professional civil engineering and road construction.
