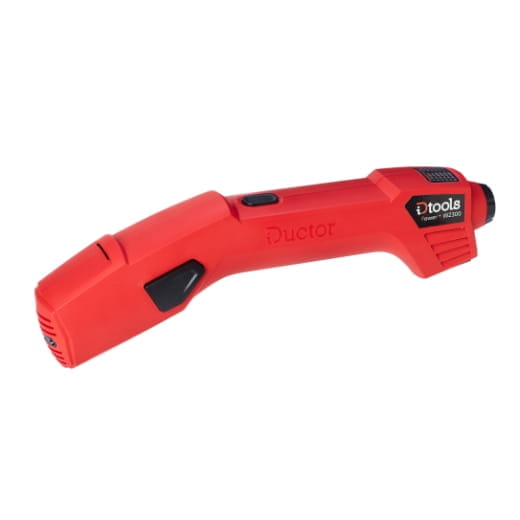

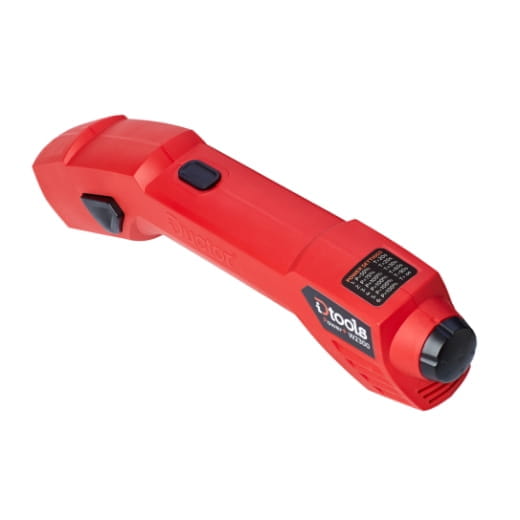

Elmag Induction Heating Unit Set - 2.3kW / 230V
€1,480.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE59240
Description
Elmag Induction Heating Unit Set - 2.3kW / 230V
- incl. 3 standard spirals consisting of:
1 pc. Heater
1 iDuctor power cable

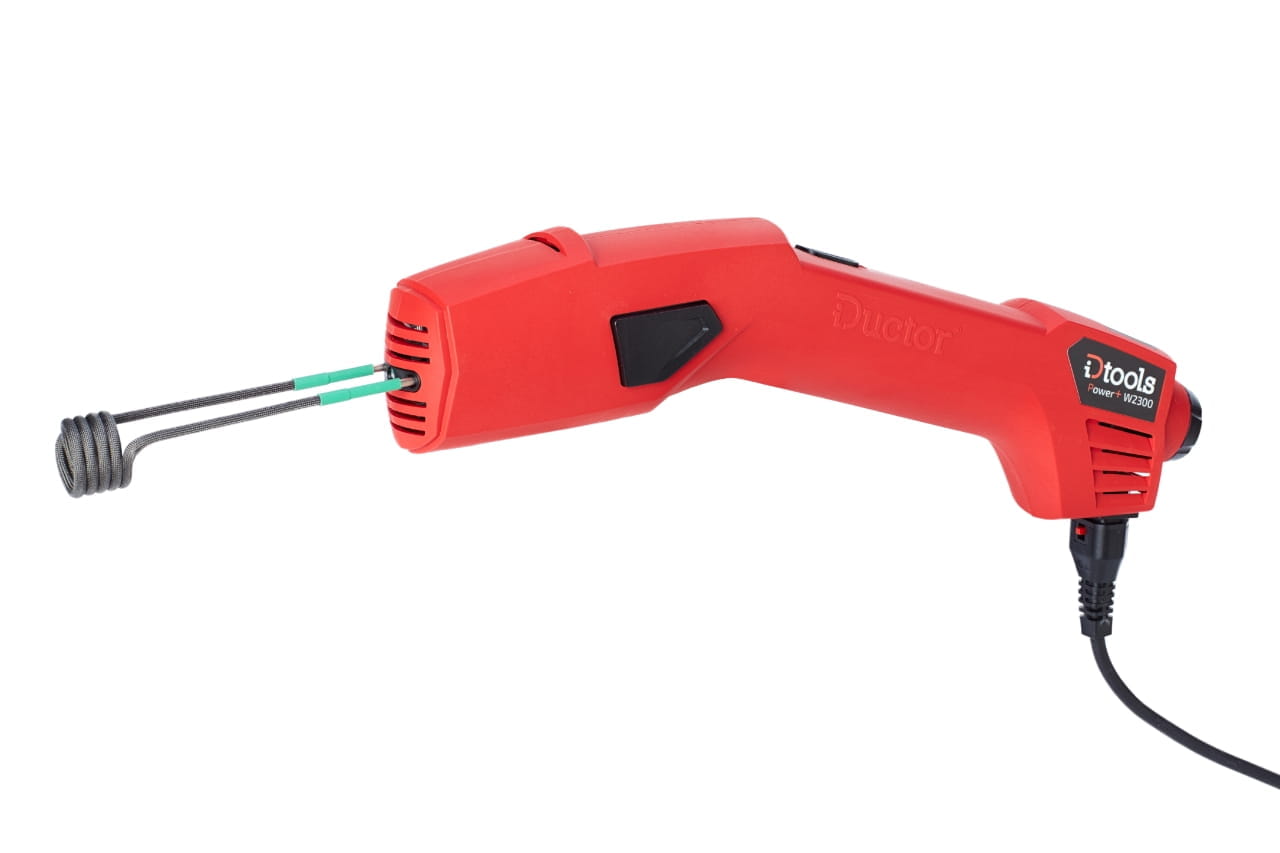

1 Ø 23mm/M10-150 straight spiral
1 Ø 18mm/M8-150 straight spiral
1 pc. Flexible induction cable L=2m FL2000

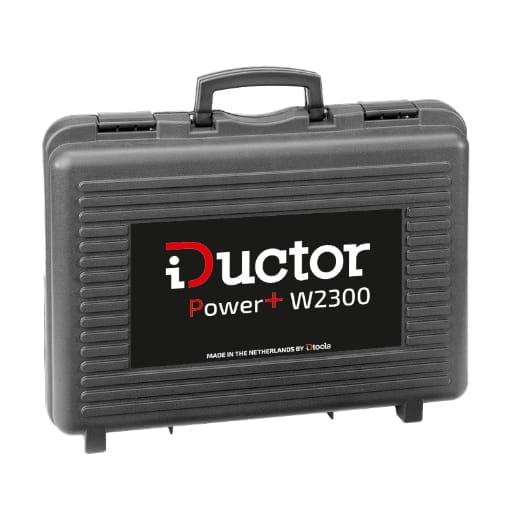

1 pc. Transport case -
All-rounder in the field of induction heaters
A powerful induction heater for disassembly work, which heats components at lightning speed within a few seconds without contact. Electromagnetic induction only transfers heat to conductive materials (not suitable for aluminium and copper due to their physical structure).
and non-conductive parts such as glass, rubber and plastic are largely spared from the heat. -
Power settings
1: P=50% -> T=20s
2: P=75% -> T=20s
3: P=100% -> T=30s
4: P=100% -> T=60s
5: P=100% -> T=90s
6: P=100% -> T=Permanent heating
Technical data
| Output power | 2.3 kW |
| Max. working temperature | 40 °C |
| Mains connection / phases | 230 / 1 V / ~ |
| Mains frequency | 50 Hz |
| Protection class (IP) | 20 |
| Weight | 1.4 kg |
