Elmag hydraulic sheet metal shears 2100-8mm

Elmag hydraulic sheet metal shears 2100-8mm - Maximum precision, performance and efficiency for professional sheet metal processing

TheElmag hydraulic plate shears 2100-8mm is the perfect solution for precise and powerful cutting of sheets up to 8 mm thick. Thanks to the modernSwing cut technology it guarantees the highest cutting quality, exact repeat accuracy and a long service life. These shears have been specially developed for continuous industrial use in workshops, metalworking companies, mechanical engineering and production plants.

Universal use - Powerful and precise

The hydraulically drivenHGS-A swing cut shears from ELMAG® impresses with a robust, welded monobloc steel construction, maximum stability and excellent vibration damping. Yourhardened special steel knife enable clean, straight cutting patterns - even with thick materials. The combination of precision, performance and durability makes this machine a true professional tool.

Innovative CybTouch control - simple operation via touchscreen

The integratedCybTouch 6 control unit offers an intuitive and modern user interface via a colour, high-resolution touchscreen. Cutting parameters, lengths and material data can be entered in seconds - and the cut is executed at the touch of a button. The control system ensures fast set-up, precise repeat cuts and a significant increase in productivity.

Advantages of oscillating cut technology

• Precise cutting due to curved movement of the blade bar
• High dimensional accuracy even with thick sheets
• Low material deformation
• Long blade life and reduced resharpening intervals
• Very high cutting quality and smooth cutting surfaces

Cutting gap set quickly

Thanks to theCentral interface setting the blade position can be adjusted to the material type and thickness with just one turn of the lever. This saves time, increases precision and ensures consistent quality for changing tasks.

Elmag start-up service - With ELMAG® quality check

EachElmag hydraulic sheet metal shears is realised by theELMAG® Start-Up Service carefully tested, assembled and delivered ready for operation. The comprehensiveQuality check guarantees perfect function, safety and durability.

• Depreservation, degreasing and deprotection
• Assembly and fine adjustment of all assemblies
• Oil filling and testing of the hydraulic systems
• Test run at all operating levels under load
• Control of all CE safety functions
• Final acceptance and documentation of the blade adjustment

Note: When buying withELMAG® Start-Up Service the delivery time is extended by approx.2-3 weeksas each machine is tested individually.

Advantages at a glance

• High qualityBOSCH-REXROTH orHOERBIGER hydraulic system
• Low noiseATOS hydraulic pump with high printing performance
• Powerful, honed and chrome-plated hydraulic cylinders

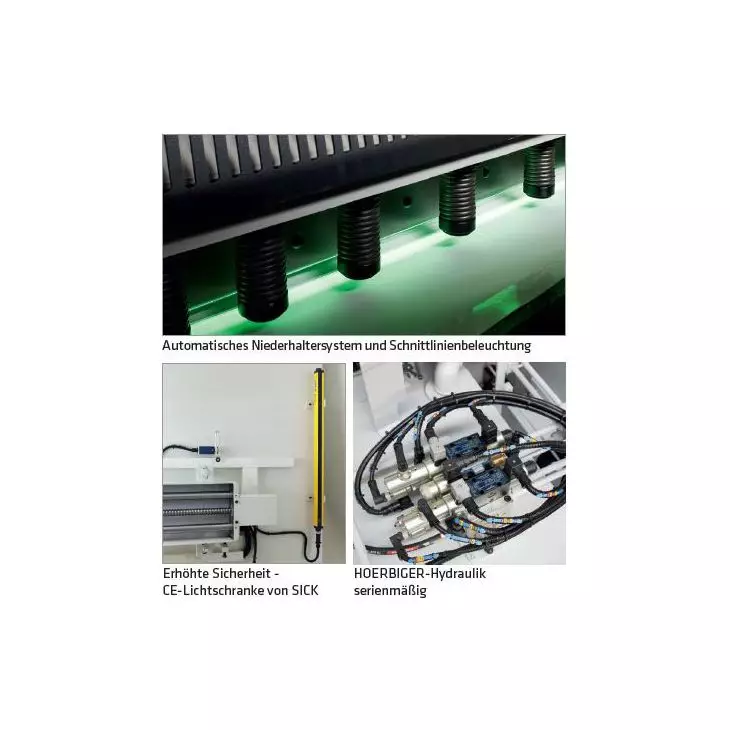

• Automatic hold-down system with 11 cylinders and 12 tonnes of pressure

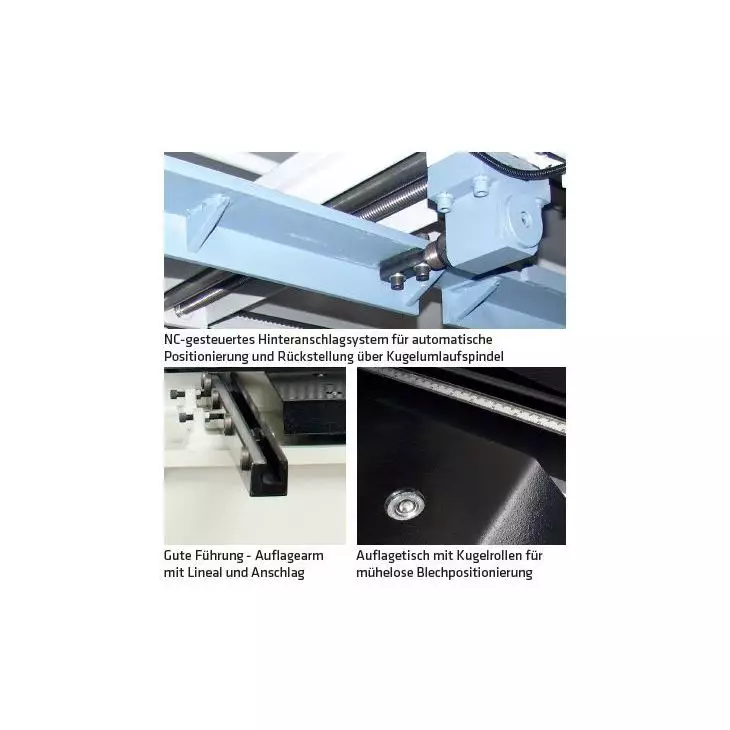

• NC-controlled, motorised adjustable back gauge (1,000 mm)
• High adjustment speed of 110 mm/s
• Central cutting column setting for different material types
• Robust construction with S275 steel frame for maximum stability
• Compatible with hydraulic oils according toDIN 51524 / ISO 6743 - All approvals available for oils

CE safety equipment

• Cutting gap cover and finger protection light curtain
• Emergency stop button on machine and control unit
• Automatic hold-down system
• Light barrier on the back
• Cut line lighting

Technical data - Elmag hydraulic plate shears 2100-8mm

Conclusion

TheElmag hydraulic plate shears 2100-8mm combines state-of-the-art hydraulic technology, oscillating cutting precision and intuitive controls. In combination with theELMAG® Start-Up Service you get a tested, ready-to-use professional machine - ideal for the highest demands in metalworking.

Elmag hydraulic plate shears 2100-8mm - Precision, power and proven ELMAG® quality for your workshop.
