Elmag geared pillar drill 1200 / 900 W, 8 speeds and automatic feed
€4,635.00
Free shipping
Available, delivery time: 2-5 days
Description
Elmag geared pillar drill 1200 / 900 W, 8 speeds and automatic feed

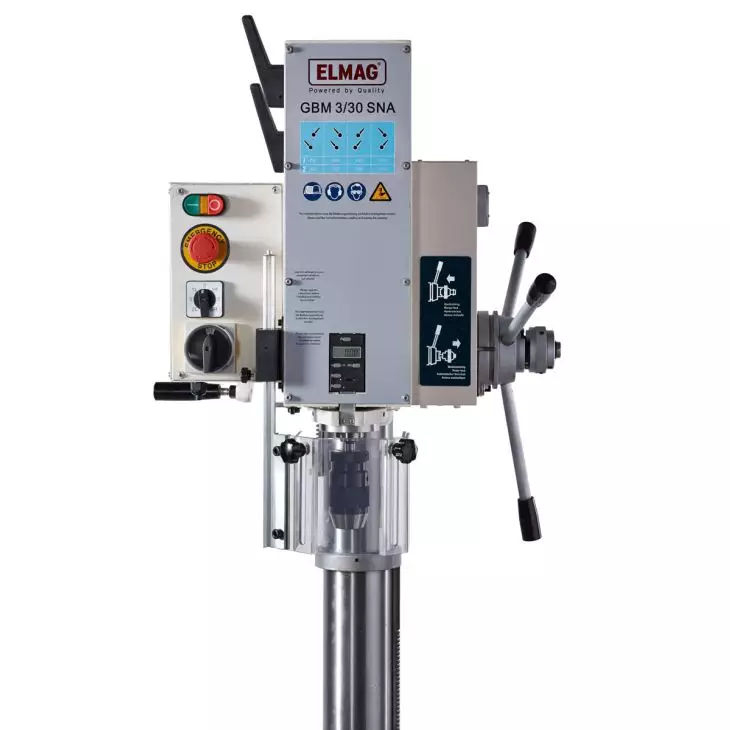

Elmag GBM 3/30 SNA - Fast geared pillar drill with 1,200 / 900 W output
TheElmag GBM 3/30 SNA is a robust and preciseGeared pillar drill for professional users inSteel construction, mechanical engineering and metalworking companies. With aDrilling capacity of 30 mm in steel and a largeQuill spacing of 820 mm it offers plenty of space for tall workpieces. The specially developedSpecial gearbox with helical-toothed steel/pressed material gears guarantees outstandingly smooth running and high load capacity - ideal for continuous daily use.
Precision and performance for demanding drilling work
The GBM 3/30 SNA impresses with8 precise speed settings (75 - 3,010 rpm)oneAutomatic quill feed and a strongTwin motor with 900 / 1,200 W. Thanks to this combination, it is perfect forDrilling, reaming and thread-cutting work - even with hard materials such as stainless steel or structural steel.
Advantages of the Elmag GBM 3/30 SNA
- Drilling capacity Ø 30 mm in steel - ideal for medium to high labour requirements
- Automatic quill feed with four feed levels (0.1 / 0.15 / 0.22 / 0.33 mm/rev)

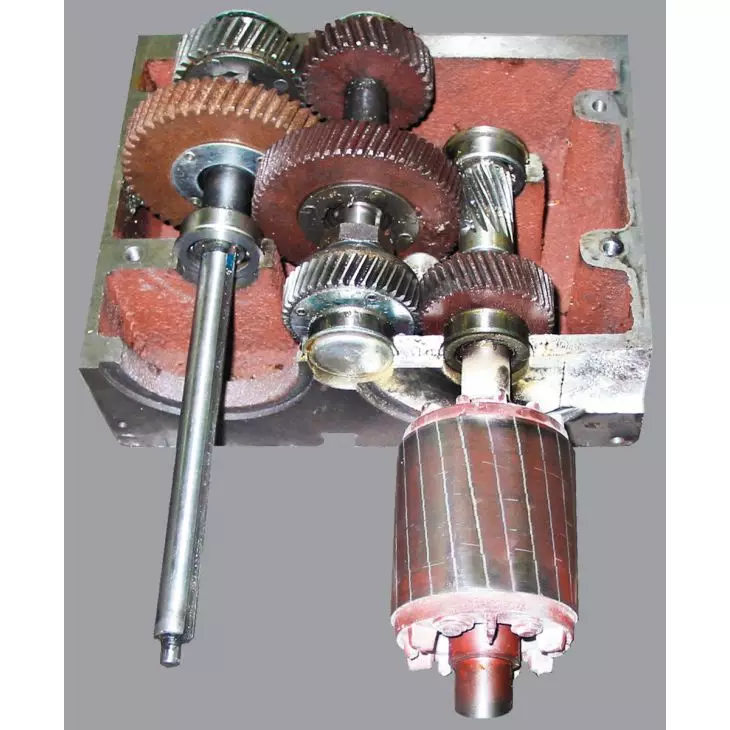

- Heavy-duty, helical-toothed special gearbox made of a steel/pressed material combination
- 8 speeds (75 - 3,010 rpm) for maximum flexibility
- Powerful 400 V dual motor (900 / 1,200 W) for high torques
- Clockwise and anti-clockwise rotation for effective thread cutting
- Drill spindle with precision bearing for precise concentricity
- Drilling table with T-slots and integrated coolant channel
- Drilling depth scale and stop for precise series drilling
- Drill spindle protection cover for more safety
- Tool ejection for quick conversion
- Rotatable and height-adjustable drill head
- Ground, heavy-duty steel column with toothed rack
- Emergency stop button / zero-voltage release for maximum operational safety
Standard equipment
- Quick-action drill chuck B 16 (1 - 16 mm)
- Cone mandrel MK 3 / B 16
- Reducing sleeve MK 3 / MK 2
- Reducing sleeve MK 3 / MK 1
- Expulsion wedge
- Operating instructions / CE certificate
Technical data - Elmag GBM 3/30 SNA
| Technical property | Value |
|---|---|
| Drilling performance in steel | 30 mm |
| Thread cutting performance | M22 |
| Spindle holder | MK 3 |
| Speed range | 75 - 3,010 rpm |
| Speed levels | 8 |
| Quill stroke | 150 mm |
| Quill feed stages | 4 (0.1 / 0.15 / 0.22 / 0.33 mm/rev) |
| Column diameter | 105 mm |
| T-slot width | 14 mm |
| Drill head stroke | 270 mm |
| Drill table stroke | 500 mm |
| Spindle projection | 320 mm |
| Rotatable drilling table | ± 180° |
| Rotatable drill head | ± 180° |
| Quill distance table | 50 - 820 mm |
| Drilling table surface | 500 × 350 mm |
| Engine power | (2-stage) 900 / 1,200 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 500 × 350 × 870 mm |
| Base plate surface | 400 × 670 mm |
| Total height | 1,700 mm |
| Weight | 210 kg |
Conclusion
TheElmag GBM 3/30 SNA is a powerfulGeared pillar drill for precise drilling and tapping work. Thanks to its sturdy design, automatic feed and high-quality gear technology, it impresses with itsPrecision, smooth running and durability. Ideal for professionals who prioritise quality and reliability.
Elmag GBM 3/30 SNA - Power, precision and smooth running for professional drilling work.
