Elmag geared drill, 25 mm drilling capacity, 8 speeds, forward/reverse rotation and 400 V motor
€3,230.00
Free shipping
Available, delivery time: 2-5 days
Description
Elmag geared drill, 25 mm drilling capacity, 8 speeds, forward/reverse rotation and 400 V motor
Elmag GBM 3/25 SNE - Fast geared drilling machine with 25 mm drilling capacity
TheElmag GBM 3/25 SNE is a compact, robust and high-performanceGeared drilling machine for precise work in workshops, metal construction and maintenance. With theirDrilling capacity of 25 mm in steel and a high-quality gearbox with helical toothed gears made ofSteel/pressed material combination it offers extremely smooth running, stability and durability. It is ideal for machining carbide, stainless steel and other high-strength materials - perfect for anyone who valuesPerformance and precision lay.
The combination of a powerful, two-stage400 V motor (900 / 650 W) and 8 finely graduated speed levels enables optimum results with every drill hole. Thanks to the integrated clockwise and anti-clockwise rotation function, the machine is also ideal for thread cutting. A sophisticated safety and convenience package with emergency stop button, zero voltage release and protective cover ensures maximum operational safety.
Advantages of the Elmag GBM 3/25 SNE
- Drilling capacity Ø 25 mm in steel - ideal for metal construction and manufacturing
- Powerful drive motor (400 V, 2-stage 900 / 650 W)
- Smooth-running quality gearbox with helical toothed gears made from a combination of steel and pressed material
- 8 speeds from 105 - 2,900 rpm for maximum flexibility
- Drill spindle with precision bearing for exact concentricity
- Clockwise and anti-clockwise rotation - Perfect for thread cutting
- Drill spindle protection cover for maximum safety
- Drilling depth scale and stop for precise drilling depths
- Tool ejection for quick tool changes
- Drilling table with T-slots and coolant channel for clean working
- Rotatable and height-adjustable drill head for flexible application
- Ground steel column with toothed rack for stability and durability
- Emergency stop button andZero-voltage release Integrated as standard
- 5 metre connection cable with EURO CEE safety plug (16 A)
Standard equipment

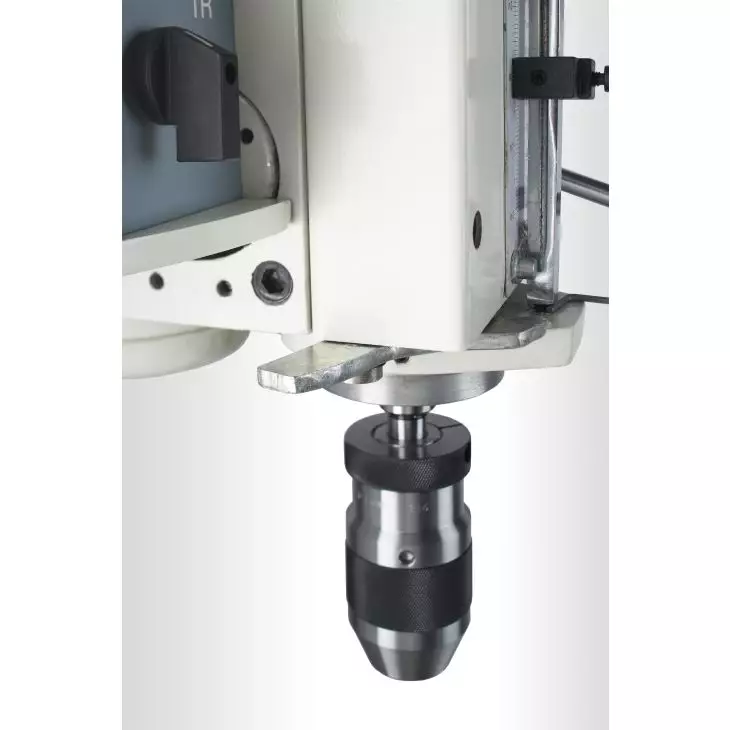

- Quick-action drill chuck B16 (1-16 mm)
- Tapered mandrel MK3 / B16
- Reducing sleeve MK3 / MK2
- Reducing sleeve MK3 / MK1
- Expulsion wedge
- Operating instructions / CE certificate
Technical data - Elmag GBM 3/25 SNE
| Technical property | Value |
|---|---|
| Drilling performance in steel | 25 mm |
| Thread cutting performance | M16 |
| Spindle holder | MK 3 |
| Speed range | 105 - 2,900 rpm |
| Speed levels | 8 |
| Quill stroke | 120 mm |
| Column diameter | 100 mm |
| T-slots, width | 14 mm |
| Drill head stroke | 580 mm |
| Drill table stroke | 530 mm |
| Spindle projection | 255 mm |
| Rotatable drilling table | ± 180° |
| Rotatable drill head | ± 180° |
| Quill distance table | 0 - 840 mm |
| Drilling table surface | 500 × 350 mm |
| Engine power | (2-stage) 900 / 650 W |
| Mains connection | 400 V / 50 Hz |
| Cubature | 500 × 350 × 840 mm |
| Base plate area (L × W) | 400 × 500 mm |
| Weight | 180 kg |
Conclusion
TheElmag GBM 3/25 SNE is a precise, durable and quietGeared drilling machine for professional users. With its high speed, robust design and extensive equipment, it offers unbeatable value for money. Whether in theworkshop, in metal construction or in small series production - This machine is the right choice for precise drilling and tapping work.
Elmag GBM 3/25 SNE - precision, performance and durability in perfection.
