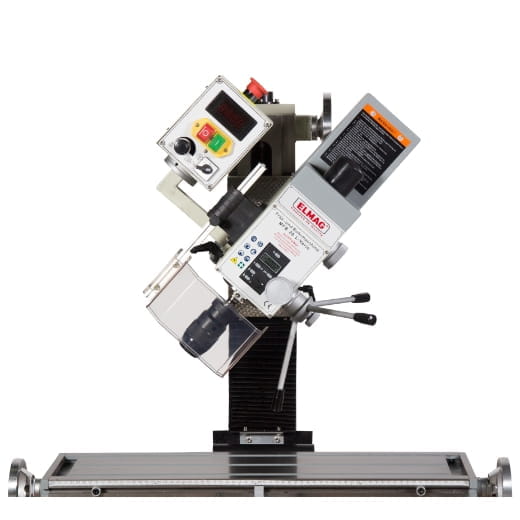

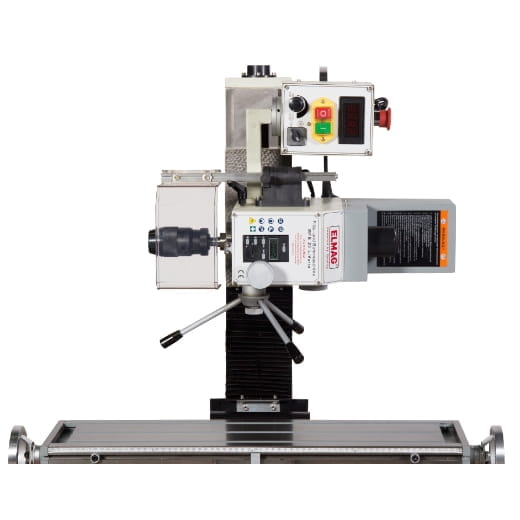

Elmag gearbox milling and drilling machine MFB 30-L Vario
€3,645.00
Prices exclude VAT.
Free shipping
Available, delivery time: 5-10 Tage
Product number:
BLE82143
Description
Elmag gearbox milling and drilling machine MFB 30-L Vario
-
Standard equipment
- Quick-action drill chuck B16, 1 - 16 mm
- Tapered mandrel MK 2 / B 16, thread M10
- Tightening spindle M10
- Tool set
- Operating instructions / CE -
Technical data
Drilling performance in steel 30 mm Tapping performance M18 Milling performance face milling cutter 80 mm Milling capacity end mill 20 mm Spindle holder (turning spindle) MK 3 Speed range 1 50 - 750 rpm Speed range 2 150 - 2250 rpm Speed levels stepless Quill stroke 70 mm T-slots, width 14 mm Milling head stroke 370 mm Spindle projection 180 mm Milling head swivelling range ± 90 ° Quill distance table 90 - 460 mm Milling table surface 840x210 mm Table distance X x Y >600 x 220 mm Engine power 1100 W Mains connection 230/50 V/Hz Cubature 840x210x460 mm Length x width 1100 x 710 mm Height 1190 mm Weight 240 kg
