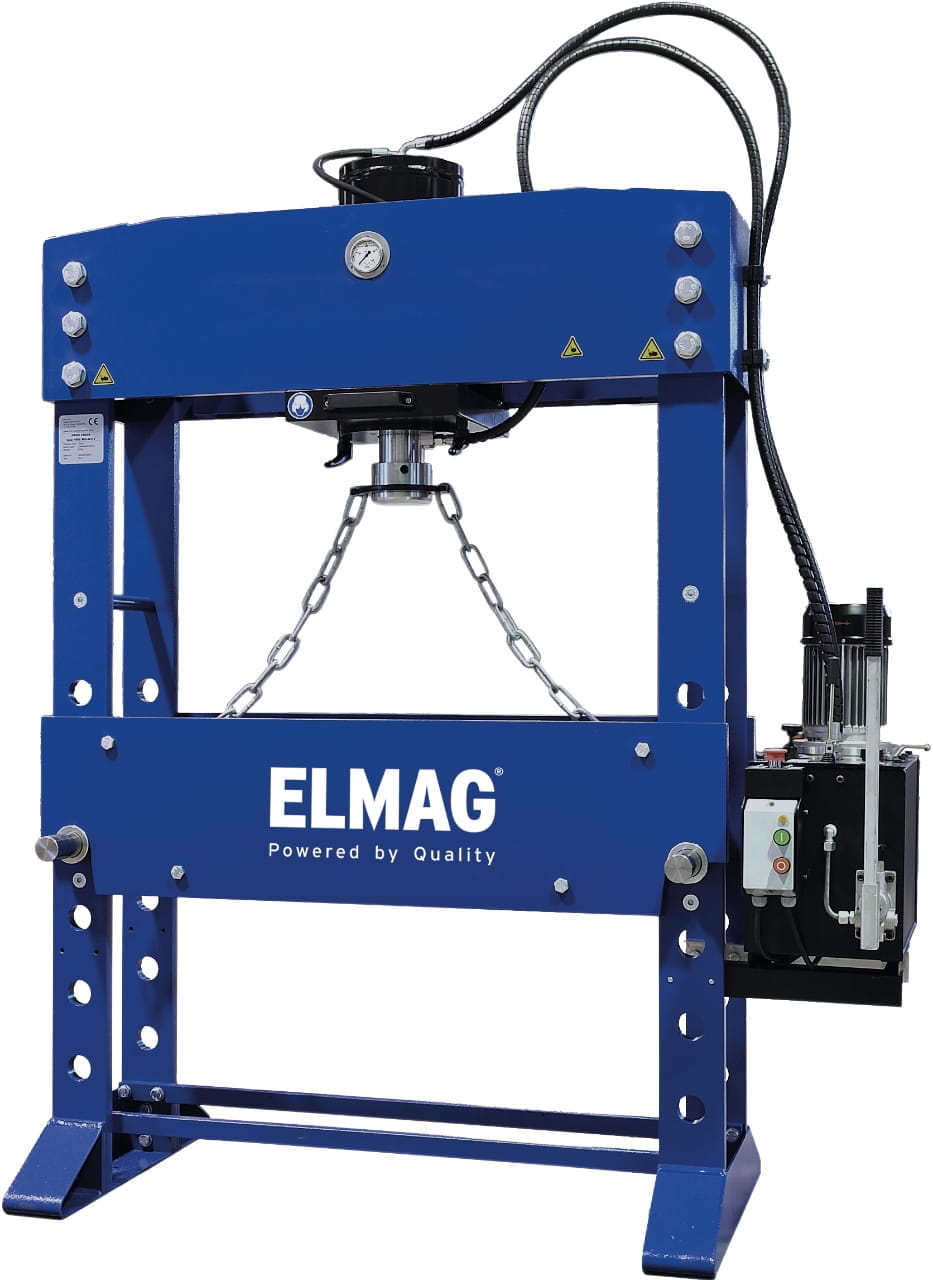

Elmag Electro-hydraulic workshop press - 60T / 400V
€7,685.00
Product number:
BLE81811
Skip product gallery
Zubehör / Ersatzteile

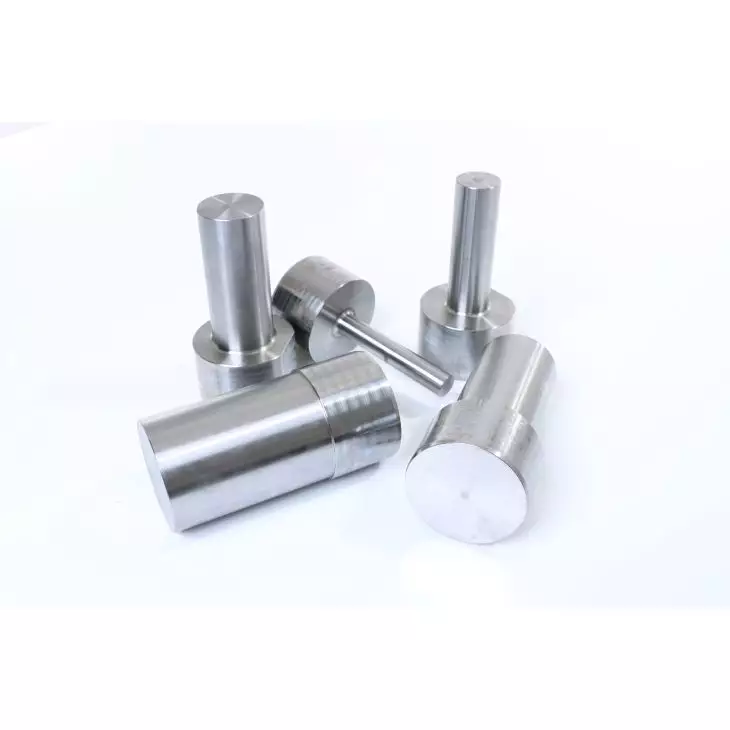

Elmag die set Ø 18/33/45/58/72mm
Regular price:
€667.00
SW32160
Hersteller:
Available, delivery time: 1-3 days
Description
Elmag Electro-hydraulic workshop press - 60T / 400V
-
Standard equipment
- Overload safety valve
- Press pressure gauge
- Switching valve up / down
- Chrome-plated cylinder piston
- Press table with locking pin
- Operating instructions / CE -
Technical data
Pressing capacity max. 60 t Electrohydraulic drive Yes Two drive speeds Yes Hydraulic cylinder laterally adjustable Yes Manual hand pump Yes Press table chain (height adjustment) Yes Oil flow rate stage 1/2 2.82 / 11.84 l/min Piston speed level 1/2 8.69 / 2.07 mm/s Return speed 10.79 mm/s Engine power 1500 W Mains connection 400/50 V/Hz Machine height 2120 mm Machine length without pump 1000 mm Machine width 695 mm Inlet length 750 mm Carrier width 260 mm Inlet height max. 947 mm Machine length with pump 1315 mm Machine width with pump 805 mm Piston stroke 380 mm Weight 540 kg
Properties
| Einlassbreite: | 750 mm |
|---|---|
| Einlasshöhe: | 947 mm |
| Frequenz: | 50 Hz |
| Geschwindigkeiten: | 2-stufig |
| Kolbenhub: | 380 mm |
| Maschinenbreite: | 695 mm, 805 mm |
| Maschinenhöhe: | 2120 mm |
| Maschinenlänge: | 1000 mm, 1315 mm |
| Motorleistung: | 1500 W |
| Network connection: | 400 V |
| Presskraft: | 60 Tonnen |
| Product Type: | Pressmaschine |
| Weight: | 540 kg |
| drive: | Elektrohydraulisch |
