Elmag cylindrical grinding machine model CG 1500
€65,090.00
Free shipping
Available, delivery time: 1-2 weeks
Description

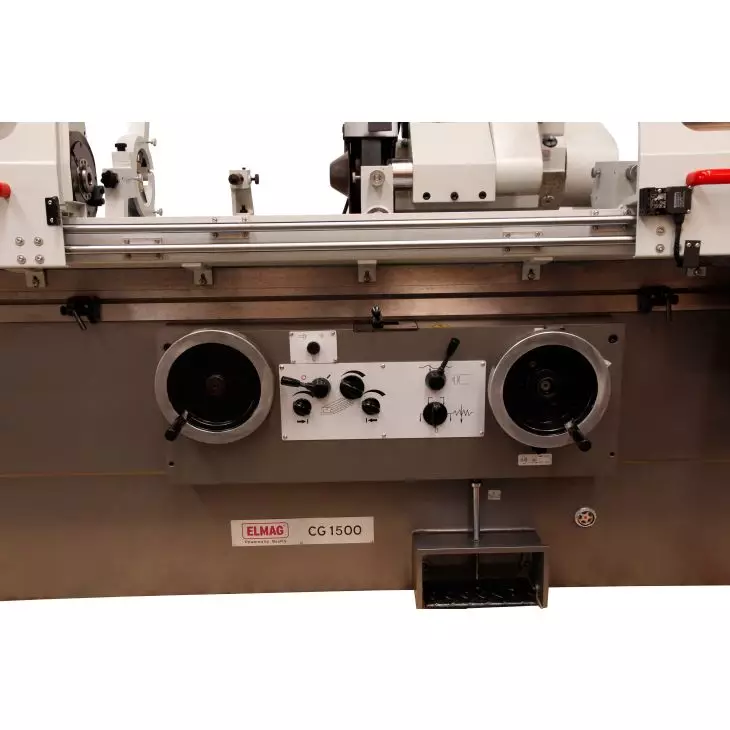

Elmag cylindrical grinding machine model CG 1500
Elmag cylindrical grinding machine model CG 1500 - Precision for the highest grinding requirements
TheElmag cylindrical grinding machine CG 1500 is the perfect solution for theHigh-precision external and internal cylindrical grinding of workpieces up to 1,500 mm in length. It was specially developed for applications in theToolmaking, mechanical engineering and industrial precision manufacturing and offers grinding accuracies in the range of0.001 mm.
Precise external and internal sanding
The CG series cylindrical grinding machines are designed forFine grinding of hardened surfaces designed. They guarantee perfect processing ofBearing seats, fitting and raceways with consistent dimensional accuracy and surface quality. Thanks to the lockable turning spindle, the CG 1500 is ideal for machiningShafts, cylinders and bores suitable.
- External cylindrical grinding of8 mm - 320 mm
- Internal cylindrical grinding of30 mm - 100 mm
- Grinding length up to1,500 mm
- Workpiece weight up to150 kg
- Grinding accuracy up to0.001 mm
Wide range of applications with maximum flexibility

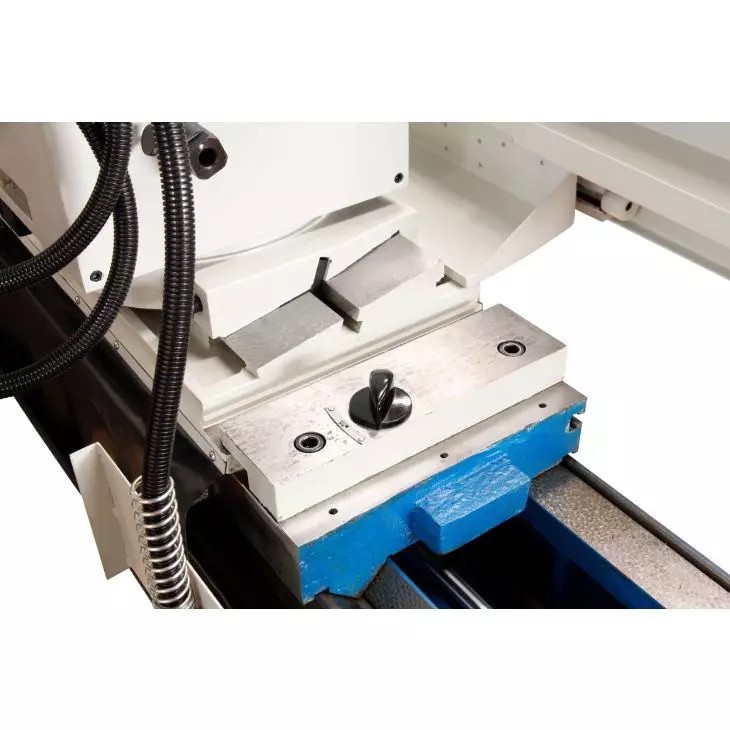

By rotating the headstock and grinding table, you canGrinding angle from 45 - 0 - 45 ° as well as conical courses up to3 ° / 6 ° be realised. TheInfinitely variable speed adjustment from 0 to 1,670 rpm and theLongitudinal feed between 0.1 and 4 m/min enable perfect adaptation to any workpiece and material.
Digital precision with measuring accuracy of 0.001 mm
TheDigital position indicator allows exact infeed of the grinding disc with maximum precision. In conjunction with the integrated grinding wheel dressing device (dresser), a consistently high level of precision is achieved.Surface quality and repeat accuracy achieved.
Simple and safe operation
The workpiece is optionally clamped viaThree-jaw chuck,Driving disc orTips. A hydraulically locking tailstock ensures a secure hold. Thin-walled workpieces are held by aSteady rest optimally supported. The combination ofManual and automatic operation enables flexible production with maximum process reliability.
- Hydraulic tailstock with quick clamping
- Rapid traverse drive for longitudinal and transverse axis
- Infinitely adjustable feed speed

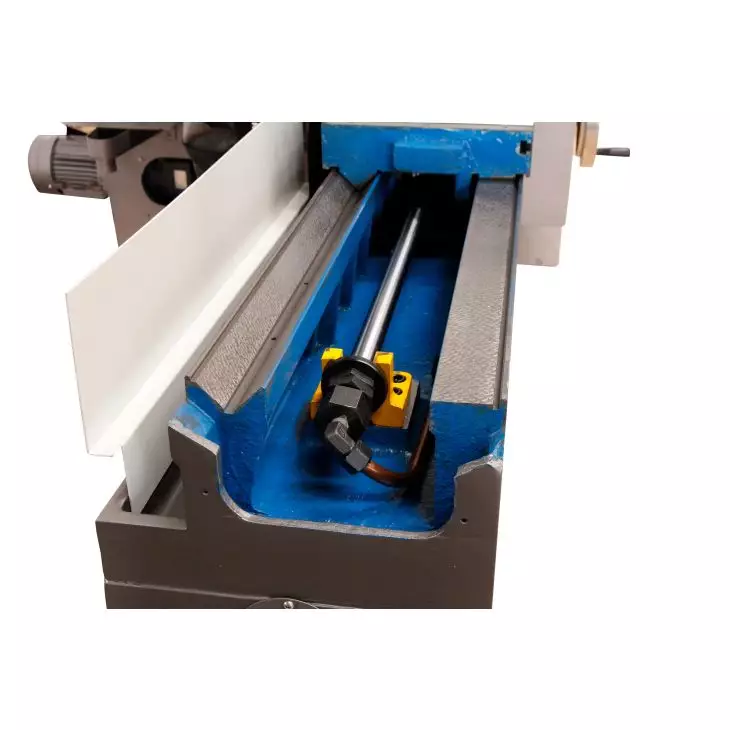

- Robust cast construction for vibration-free operation
Elmag start-up service - With ELMAG® quality check
EachElmag CG 1500 becomesready for operation delivered - including assembly, degreasing, oil filling and test run. As part of theELMAG® Start-Up Service each machine is individually checked, adjusted and tested. TheQuality check guarantees maximum accuracy, smooth running and reliability ex works.
- Checking all axles and guides
- Testing the concentricity and grinding accuracy
- Function test of the hydraulic and cooling circuits
- Adjustment of the digital display unit
- CE-compliant final acceptance with test report
Note: The ELMAG® Start-Up Service extends the delivery time by approx. 2-3 weeks, as each machine is individually tested and adjusted.
Advantages of the Elmag CG 1500 cylindrical grinding machine
- Precise external and internal cylindrical grinding with 0.001 mm accuracy
- Digital position indicator for precise infeed
- Hydraulic tailstock and steady rest included
- Variable speeds (0 - 1670 rpm)
- Automatic and manual operation can be combined
- Long sanding length - up to 1,500 mm

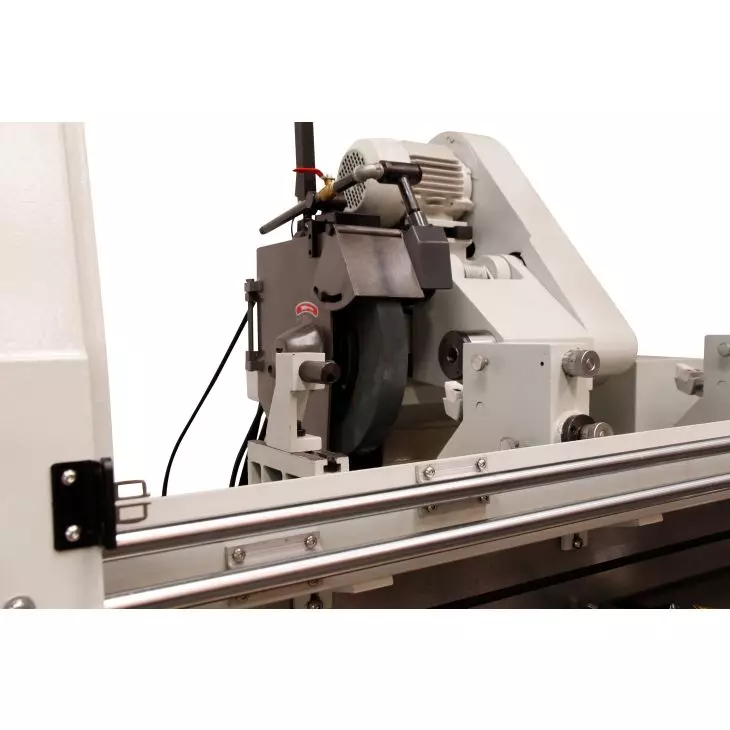

- Powerful grinding motor with 9 kW
- Coolant pump with 16 l/min delivery rate
- ELMAG® start-up service and quality check included
Typical areas of application
- Toolmaking and mechanical engineering
- Precision and series production
- Metal and fixture construction
- Precision mechanics and industrial production
- Repair and training workshops
Technical data - Elmag cylindrical grinding machine CG 1500
| Technical feature | Value / Description |
|---|---|
| External grinding diameter (max / min) | 320 / 8 mm |
| Internal sanding diameter (max / min) | 100 / 30 mm |
| External grinding length (max) | 1500 mm |
| Workpiece weight (max) | 150 kg |
| Centre height | 180 mm |
| Morse taper (spindle/tailstock) | MK 4 |
| Headstock rotation angle | 0 - 45 ° |
| Speed range | 0 - 1670 rpm (infinitely variable) |
| Jaw chuck Ø | 200 mm |
| External grinding disc Ø | 400 mm |
| Grinding disc width | 50 mm |
| Internal cylindrical grinding tool (max) | 50 × 40 × 16 mm |
| Internal cylindrical grinding tool Speed (max) | 10 000 rpm |
| Coolant pump Delivery rate | 16 l/min |
| Grinding motor power | 9 kW |
| Longitudinal feed speed | 0.1 - 4 m/min (infinitely variable) |
| Mains connection | 400 / 50 V/Hz |
| Dimensions (L × W × H) | 4610 × 1810 × 1520 mm |
| Weight | 4300 kg |
Standard equipment
- Digital position indicator (0.001 mm)
- Grinding disc & dressing device (Dresser)
- Internal cylindrical grinding tools Ø 10/16 mm
- Clamping bars for internal cylindrical grinding tools
- Three-jaw feed & feed intake
- Steady rest
- Cooling and hydraulic system
- Halogen work lamp
- Tools / Operating instructions / CE
Conclusion
TheElmag cylindrical grinding machine CG 1500 stands forHighest precision, long service life andUser-friendly technology. With digital control, infinitely variable speed control and theELMAG® quality check it is the ideal solution for demanding sanding tasks in the industrial and trade sectors.
Elmag CG 1500 - Precision, control and proven ELMAG® quality with start-up service.
