Elmag cylindrical grinding machine model CG 1000
€59,350.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Elmag cylindrical grinding machine model CG 1000
Elmag cylindrical grinding machine model CG 1000 - Highest precision for external and internal cylindrical grinding
TheElmag cylindrical grinding machine CG 1000 is a professional precision machine for theHigh-precision grinding of shafts and bores. With a grinding accuracy of0.001 mm it is ideal for theToolmaking and mechanical engineeringwhichMetalworking and thePrecision mechanics and precision manufacturing.
Precise external and internal sanding
TheCG series cylindrical grinding machines have been selected for theFine grinding of hardened surfaces developed. They ensure precise machining of bearing seats, fitting, running and sliding surfaces and achieve dimensional tolerances down to the µ range. Thanks to the lockable turning spindle, the machine is perfectly suited for theGrinding of shafts in series or individual production.

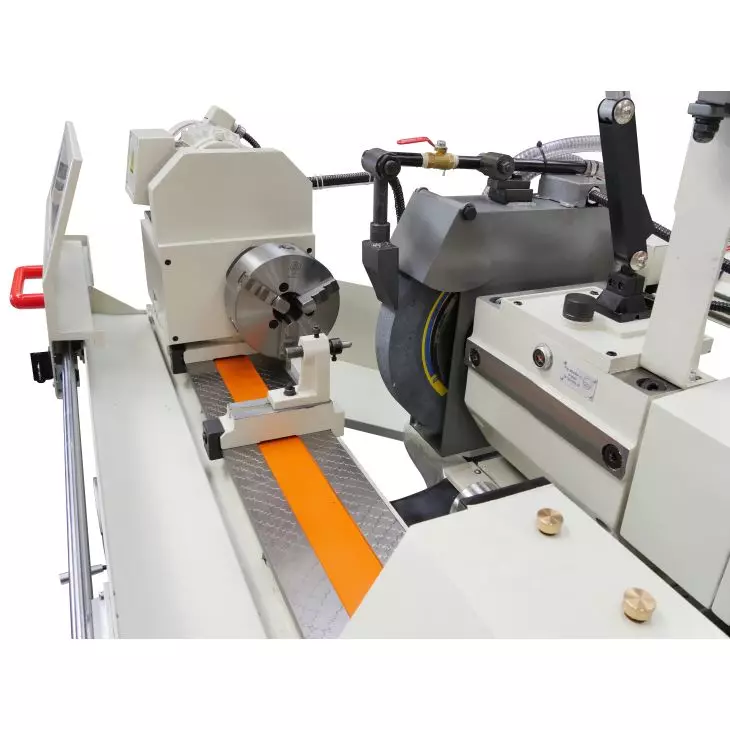

- External cylindrical grinding of8 mm to 320 mm

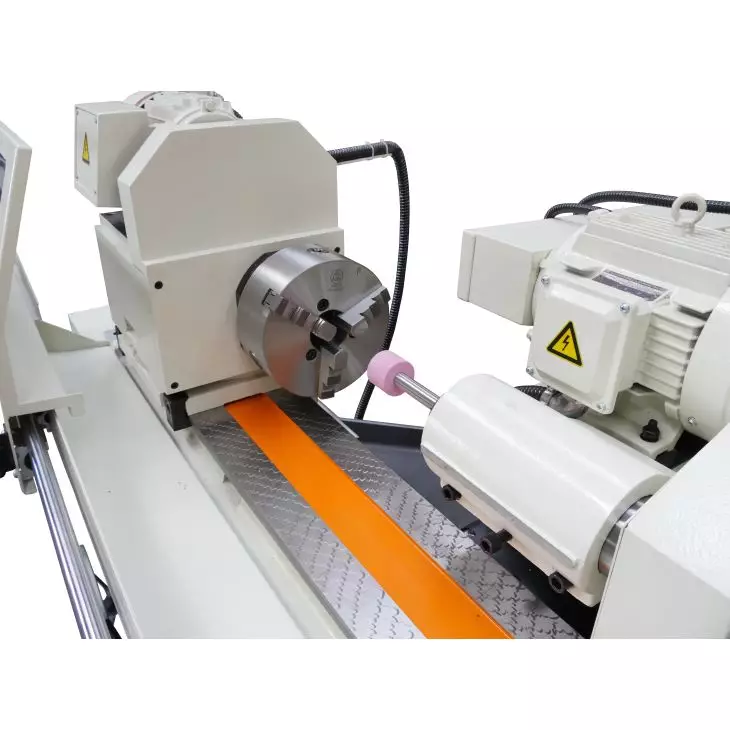

- Internal cylindrical grinding of30 mm to 100 mm
- Workpiece length up to1000 mm
- Workpiece weight up to150 kg
- Grinding accuracy up to0.001 mm
Wide range of applications - maximum flexibility
TheElmag CG 1000 offers variable grinding results by rotating the headstock or grinding table.Grinding angle up to 45-0-45° as well as conical courses up to3 or 7 degrees. TheInfinitely variable speed adjustment from 0 to 1670 rpm and theLongitudinal feed between 0.1 and 4 m/min enable optimum adaptation to every workpiece and material.
Digital position indicator - precision in the µ range
With the integrateddigital position indicator (accuracy 0.001 mm), all infeed movements are monitored with millimetre precision. The controlled infeed of the grinding disc ensuresConsistent surface quality and minimal dimensional deviations.
Simple, safe operation
The machine impresses with its intuitive operation and hydraulic support. Workpieces can beThree-jaw chuck,Driving disc orTips be stretched. A hydraulically lockable tailstock ensures a secure hold, while theSteady rest stabilises thin-walled workpieces. The combination ofAutomatic andManual operation enables precise work with maximum efficiency.
- Rapid traverse drive for longitudinal and transverse axis
- Stepless adjustment of the sanding parameters
- Hydraulic system for convenient clamping
- Robust design for low-vibration operation
Elmag start-up service - With ELMAG® quality check
EachElmag cylindrical grinding machine CG 1000 is delivered ready for operation - including oil filling, degreasing, assembly and test run. As part of theELMAG® Start-Up Service a comprehensiveQuality checkwhere the machine is individually tested, adjusted and documented.
- Precision testing of all axes and guideways
- Adjusting the digital display
- Measurement of grinding and concentricity accuracy
- Function test of hydraulic and cooling system
- CE-compliant final acceptance with test report
Note: The ELMAG® Start-Up Service can extend the delivery time by approx. 2 to 3 weeks, as each machine is tested and adjusted individually.
Advantages of the Elmag CG 1000 cylindrical grinding machine
- Precise internal and external cylindrical grinding down to 0.001 mm
- Digital position indicator with maximum accuracy
- Hydraulic tailstock and steady rest
- Variable speeds 0 - 1670 rpm
- Automatic and manual operation can be combined
- Long sanding length (1000 mm) for versatile workpieces
- Powerful grinding motor - 9 kW output
- Coolant pump with 16 l/min delivery rate
- Supplied ready for use with ELMAG® quality check
Typical areas of application
- Toolmaking and mechanical engineering
- Metal and fixture construction
- Precision mechanics and precision manufacturing
- Industrial and training companies
- Repair and maintenance workshops
Technical data - Elmag cylindrical grinding machine CG 1000
| Technical feature | Value / Description |
|---|---|
| External grinding diameter (max / min) | 320 / 8 mm |
| Internal sanding diameter (max / min) | 100 / 30 mm |
| External grinding length (max) | 1000 mm |
| Workpiece weight (max) | 150 kg |
| Centre height | 180 mm |
| Spindle holder / tailstock | Morse taper MK 4 |
| Headstock rotation angle | 0 - 45 ° |
| Spindle speed range | 0 - 1670 rpm (infinitely variable) |
| Jaw chuck Ø | 200 mm |
| External grinding disc Ø | 400 mm |
| Grinding disc width | 50 mm |
| Internal cylindrical grinding tool (max) | 50 × 40 × 16 mm |
| Internal cylindrical grinding tool Speed (max) | 10 000 rpm |
| Coolant pump Delivery rate | 16 l/min |
| Grinding motor power | 9 kW |
| Longitudinal feed speed | 0.1 - 4 m/min (infinitely variable) |
| Mains connection | 400 / 50 V/Hz |
| Dimensions (L × W × H) | 3610 × 1810 × 1520 mm |
| Weight | 3700 kg |
Standard equipment
- Digital position indicator (0.001 mm)
- Grinding disc & dressing device (Dresser)
- Internal cylindrical grinding tools Ø 10/16 mm
- Clamping bars for internal cylindrical grinding tools
- Three-jaw feed & feed intake
- Steady rest
- Cooling and hydraulic system
- Halogen machine lamp
- Tools / Operating instructions / CE
Conclusion
TheElmag cylindrical grinding machine CG 1000 stands forMaximum precision, durability and ease of use. With digital control, infinitely variable speed control and the provenELMAG® quality check it is the perfect solution for demanding sanding work in the industrial and trade sectors.
Elmag CG 1000 - Precision, control and proven ELMAG® quality with start-up service.
