ELMAG Combination Grinding Machine - 230 V | Grinding Wheel 150 mm | Compact Workshop Machine
€372.00
Free shipping
Available, delivery time: 2-5 days
Description
ELMAG Combination Grinding Machine - 230 V | Grinding Wheel 150 mm | Compact Workshop Machine

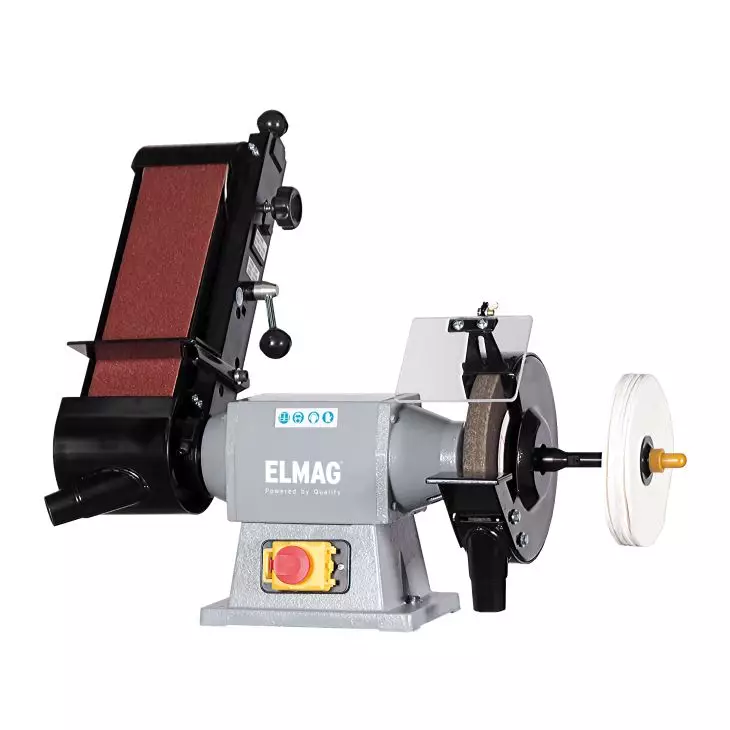

ELMAG KSM 1000/150 N combination sanding machine - Versatile sanding machine with sanding belt and sanding disc
TheELMAG KSM 1000/150 N combination sanding machine combines performance, precision and compactness in a robust device. This versatile230 volt combination sanding machine is ideal for theSurface grinding, sharpening, shaping and deburring a wide variety of materials in the workshop, craft and hobby sector. With sanding belt and sanding disc in one unit, it offers maximum flexibility in a small space.
KSM models - For more possibilities
TheKSM double combination machines from ELMAG stand for versatility, precision and long-lasting quality. The modelKSM 1000/150 N is particularly suitable for light grinding tasks and impresses with itsRobust construction and theDie-cast aluminium housingwhich ensures low-vibration operation.
Advantages of the ELMAG KSM 1000/150 N combination sanding machine
- ✔All-in-one sanding solution - Sanding belt and sanding disc in one machine
- ✔Moderate sanding speed - 22 m/s (disc) and 15 m/s (belt) for controlled work
- ✔Large surface grinding area - 50 x 260 mm for precise surface grinding
- ✔Outstanding running smoothness - Ideally dimensioned dual-axis motor with precision bearings
- ✔Adjustable sanding supports and grinding arm angle for perfect adjustment
- ✔Clean and safe - With extraction connections and eye protection glass with spark protection
- ✔Robust and durable - Solid die-cast aluminium housing
- ✔CE-compliant - with zero-voltage release and safety cover
- ✔Compact and powerful - Ideal for workshops, schools and DIY enthusiasts
Standard equipment
- KSM combination sanding machine
- Steel wire brush
- Polishing disc
- Eye protection glass with spark protection
- Adjustable sanding support
- Protective bonnet with suction connection
- Contact wheel and idler pulley balanced
- Finely adjustable belt adjustment with belt glide guide
- Belt grinding support and belt guard with suction connection
- Die-cast aluminium housing
- On/off button with zero-voltage release
- Tools, operating instructions, CE certificate
Special accessories
- Sheet steel base
- Steel wire brush 150x19x12 mm
- Polishing disc 125x19x10 mm
Technical data - ELMAG KSM 1000/150 N
| Technical feature | Value / Description |
|---|---|
| Grinding disc diameter | 150 mm |
| Grinding disc width | 25 mm |
| Grinding disc bore | 20 mm |
| Grinding speed | 22 m/s |
| Grinding belt width | 50 mm |
| Surface grinding area | 50 x 260 mm |
| Sanding belt length | 1000 mm |
| Sanding belt angle | > 90° |
| Conveyor belt speed | 15 m/s |
| Wire brush diameter | 150 mm |
| Polishing disc diameter | 125 mm |
| Speed | 2850 rpm |
| Engine power | 350 W |
| Mains connection | 230 / 50 V/Hz |
| Suction connection | Ø 35 mm |
| Length | 560 mm |
| Width | 380 mm |
| Height | 250 mm |
| Weight | 16.5 kg |
Areas of application
- ✔ Workshops and craft businesses
- ✔ Mechanical engineering and metal processing
- ✔ Wood and plastics processing
- ✔ Training workshops and schools
- ✔ Hobby and home workshops
Conclusion
TheELMAG KSM 1000/150 N combination sanding machine is the perfect choice for all those whoPrecise sanding work withcompact design and high efficiency want to connect. Thanks to the robust aluminium housing, the sophisticated design and the double grinding option, it is an indispensable tool forWorkshop, craft and training.
ELMAG - Precision and quality for professional sanding work.
