Elmag CNC machining center S650-CNC – SIEMENS 828D control, 24-position tool changer
€61,420.00
Free shipping
Available, delivery time: 1-2 weeks
Description
Elmag CNC machining center S650-CNC – SIEMENS 828D control, 24-position tool changer

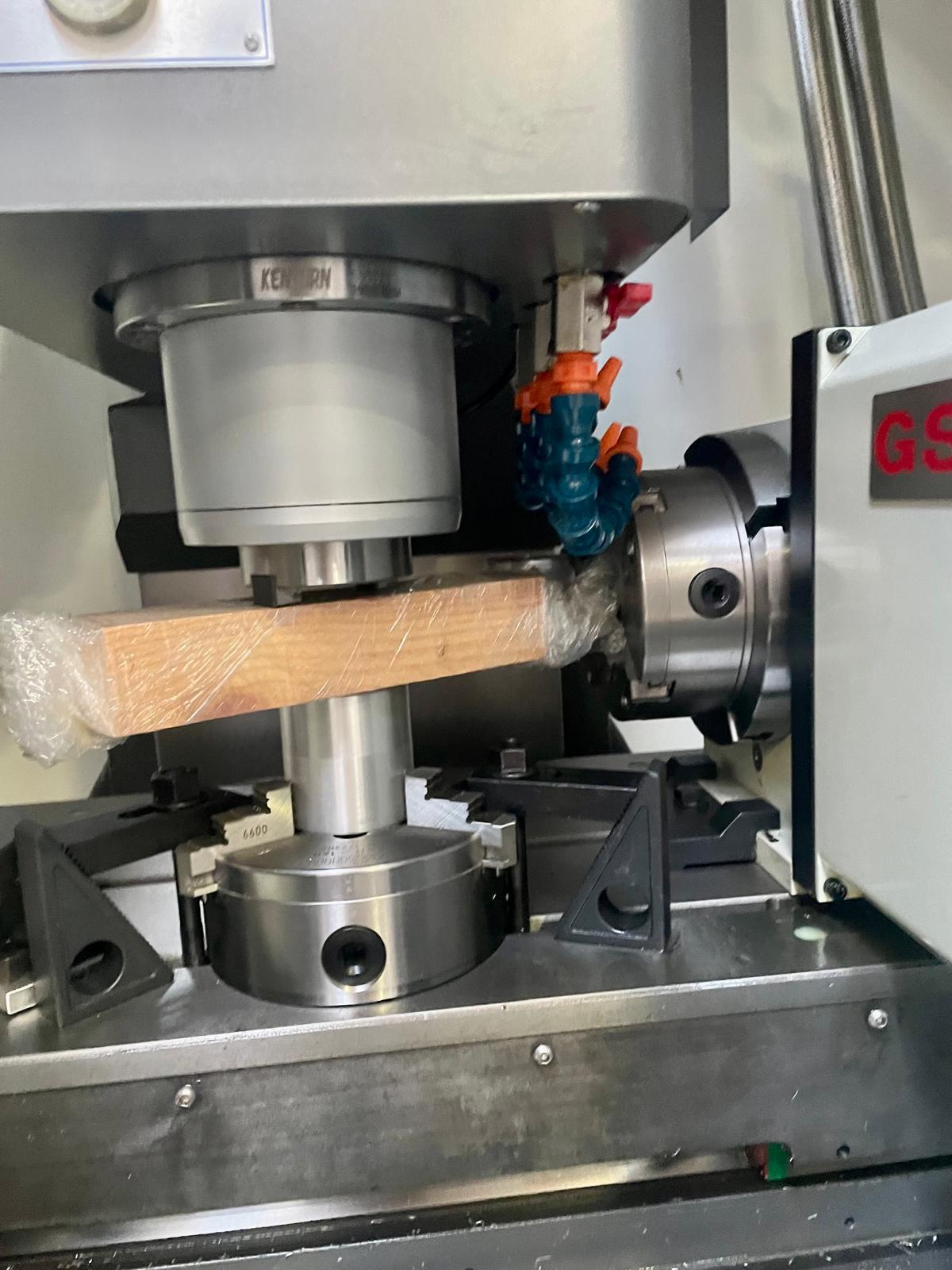

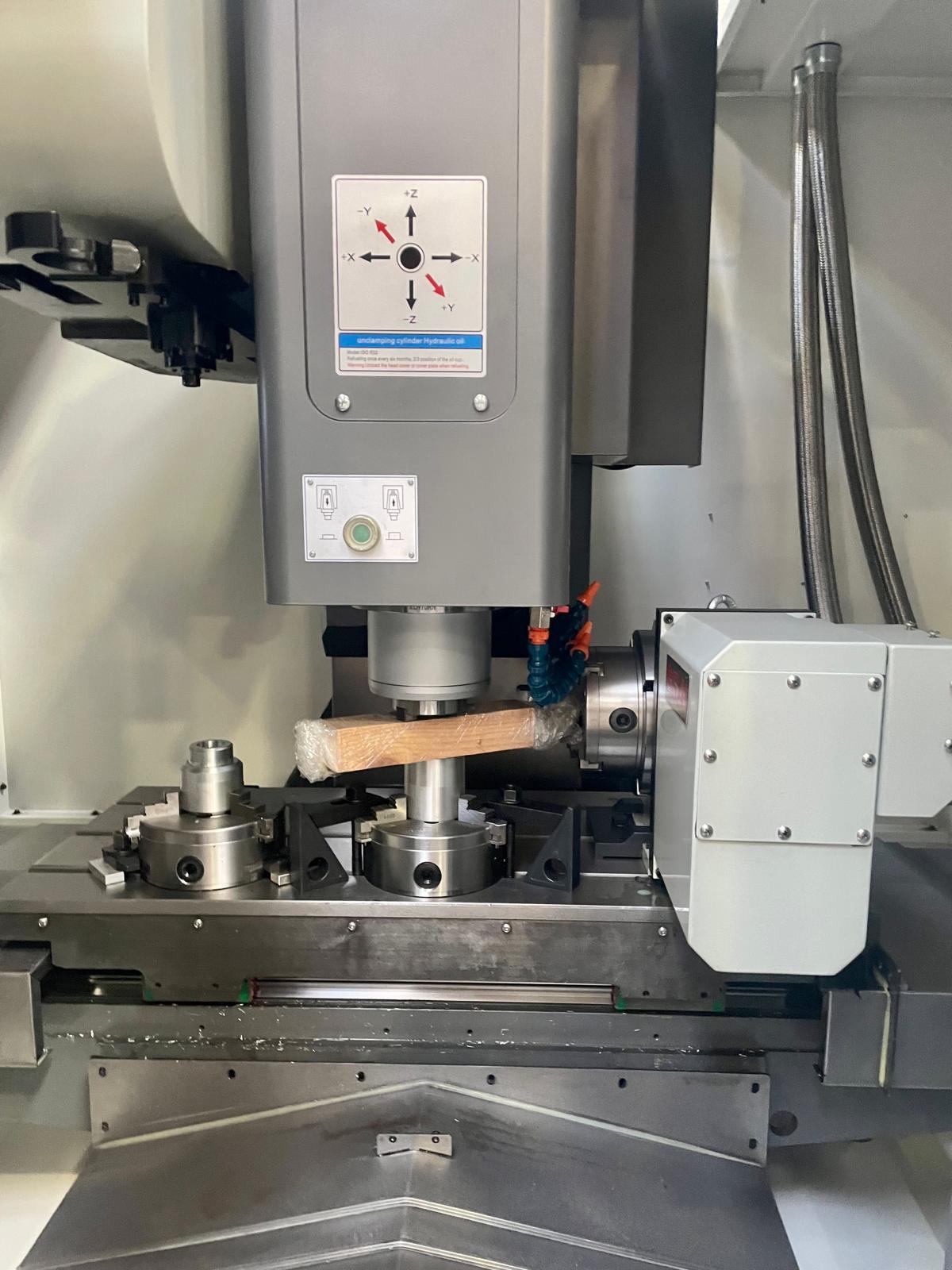

CNC machining centre 3-axis Mod. S650-CNC - Precision, performance and SIEMENS 828D control system
TheCNC machining centre 3-axis Mod. S650-CNC is the ideal solution for precise milling and drilling work in professional mechanical engineering, toolmaking and series production. With the most modernSIEMENS SINUMERIK 828D ADVANCED control system,24-position OKADA tool changer and aSturdy cast iron frame this machining centre guarantees maximum productivity, precision and durability.
Elmag Start Up Service - Ready for operation ex works
Thanks to the provenElmag Start Up Service theS650-CNC completeMounted, de-preserved (degreased), filled with oil and aTest run subjected. The machine is thereforeReady for immediate use - without additional installation work. This meansMore efficiency, safety and time savings from the very first use.

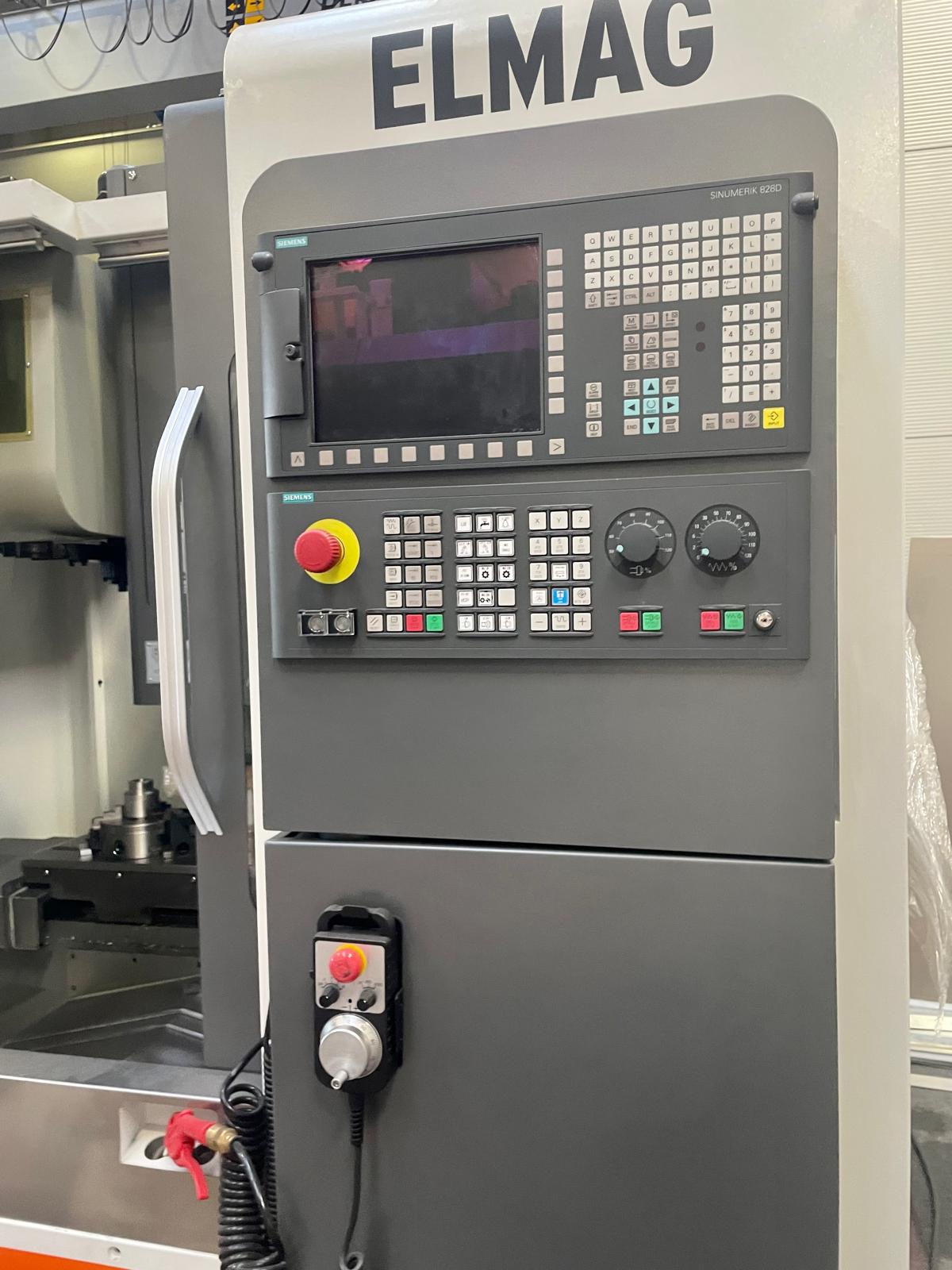

Technological top class with SIEMENS SINUMERIK 828D ADVANCED
TheSIEMENS 828D ADVANCED Control withShopMill combines simple operation with maximum precision. With up to5 axlesa7.5" colour display,Graphical programme guidance and up to64 tool memory locations it is perfectly suited for continuous industrial use. The compact design in accordance with protection classIP65 also makes them robust and reliable - even under harsh production conditions.
Machine concept and advantages
- ✔Elmag Start Up Service - delivered ready for operation, tested and inspected
- ✔SIEMENS SINUMERIK 828D ADVANCED Control with ShopMill
- ✔24-position OKADA tool changer - Fast changeover times for maximum productivity
- ✔Sturdy cast iron frame in rigid bed design with hardened flat guideways
- ✔Ball screws on all axes, driven by servomotors
- ✔Mechanical counterbalance for precise positioning of the Z-axis
- ✔Screw chip conveyor for clean operation

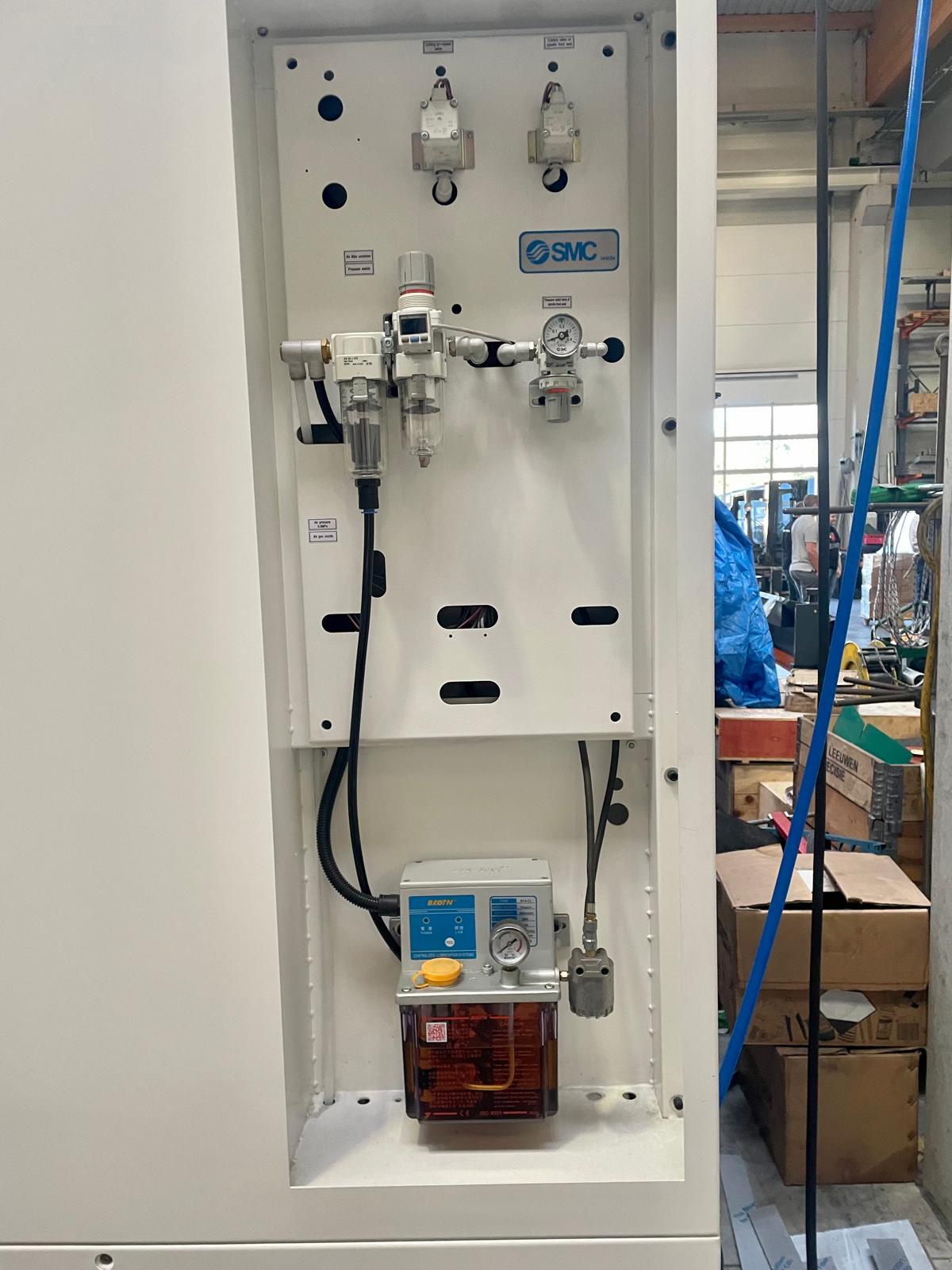

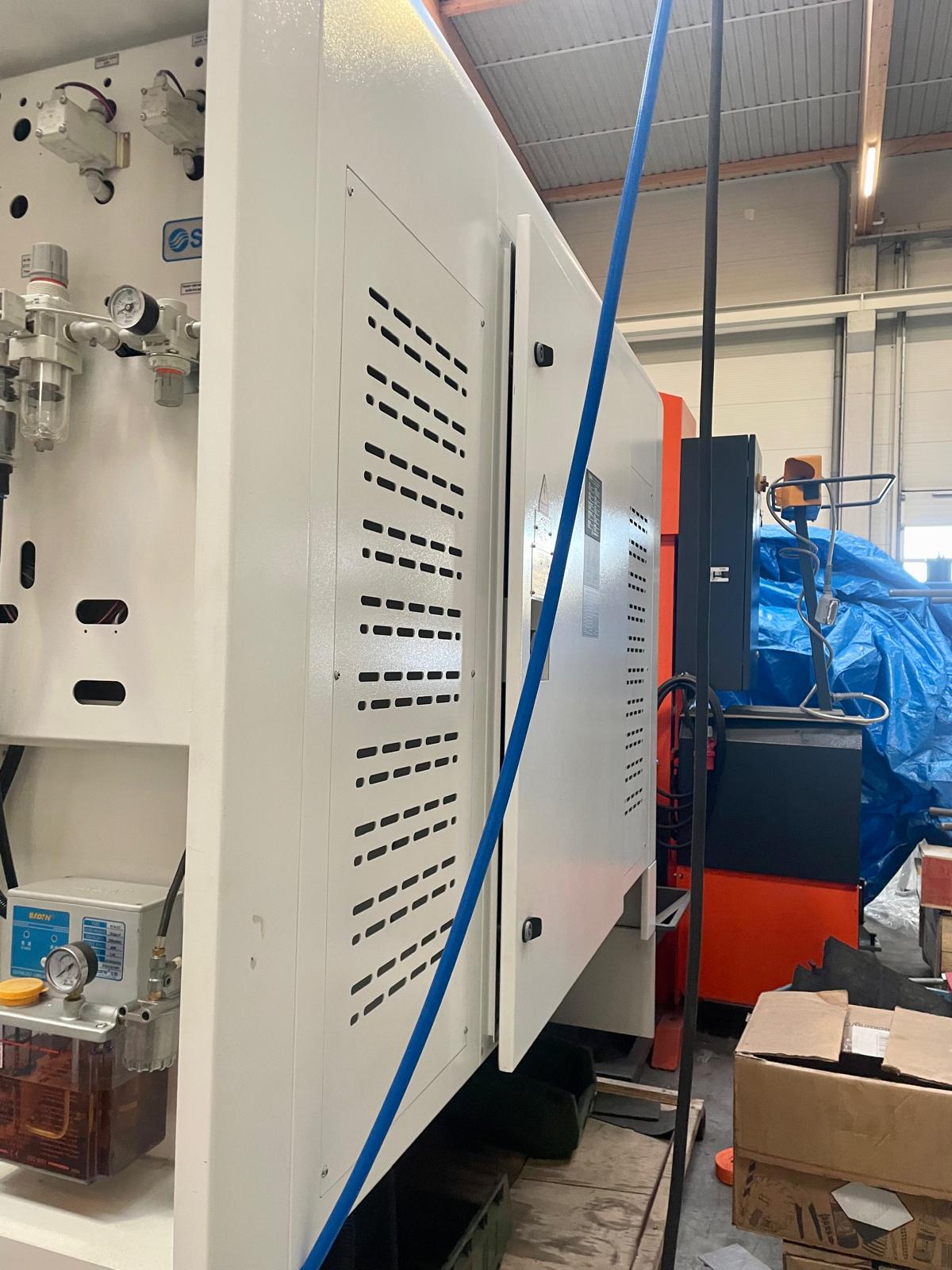

- ✔Automatic centralised lubrication andCoolant device
- ✔LED work light For optimum visibility during processing
- ✔Maximum positioning and repeat accuracy ±0.005 / ±0.003 mm
Technical data - CNC machining centre 3-axis Mod. S650-CNC
| Technical feature | Value / Description |
|---|---|
| X-axis travel | 650 mm |
| Y-axis travel | 400 mm |
| Z-axis travel | 500 mm |
| Table dimensions | 920 x 400 mm |
| Table load capacity | 300 kg |
| T-slots (number / width / spacing) | 3 / 14 mm / 120 mm |
| Quill distance table | 120 - 620 mm |
| Spindle torque | 36 / 72 Nm |
| Projection | 395 mm |
| Speed range | 40 - 8000 rpm (optional 10,000 rpm) |
| Spindle holder | BT 40 |
| Rapid traverse X/Y/Z | 500 / 500 / 300 mm/s |
| Work feed X/Y/Z | 1 - 10,000 mm/min |
| Tool magazine capacity | 24 tools (OKADA tool changer) |
| Max. Tool diameter (full/empty) | 80 / 150 mm |
| Max. Tool length | 300 mm |
| Max. Tool weight | 8 kg |
| Tool change time | 1.75 seconds |
| Feed drive (X/Y/Z) | 1.2 / 1.2 / 1.4 - 2.2 / 2.2 / 3.55 kW |
| Positioning accuracy | ± 0.005 mm |
| Repeatability | ± 0.003 mm |
| Engine power | 7500 W |
| Mains connection | 400 V / 50 Hz |
| Dimensions (L x W x H) | 2160 x 2535 x 2280 mm |
| Weight | 3300 kg |
Special features
- SIEMENS SINUMERIK 828D ADVANCED control system with ShopMill
- 7.5" colour display with graphical user interface
- Up to 64 tool memory locations
- Electric handwheel for manual axle control
- Integrated screw chip conveyor
- Automatic centralised lubrication and coolant system
- Optionally available with FANUC CNC system or 4th axis
Conclusion
TheELMAG CNC machining centre S650-CNC combines precision, dynamics and ease of operation in a compact machine concept. With theSIEMENS SINUMERIK 828D control system,24-position tool changer and theElmag Start Up Service it is immediately ready for use and delivers the highest machining quality - the perfect solution for modern machining operations.
ELMAG - precision, innovation and reliability for professional metalworking.
