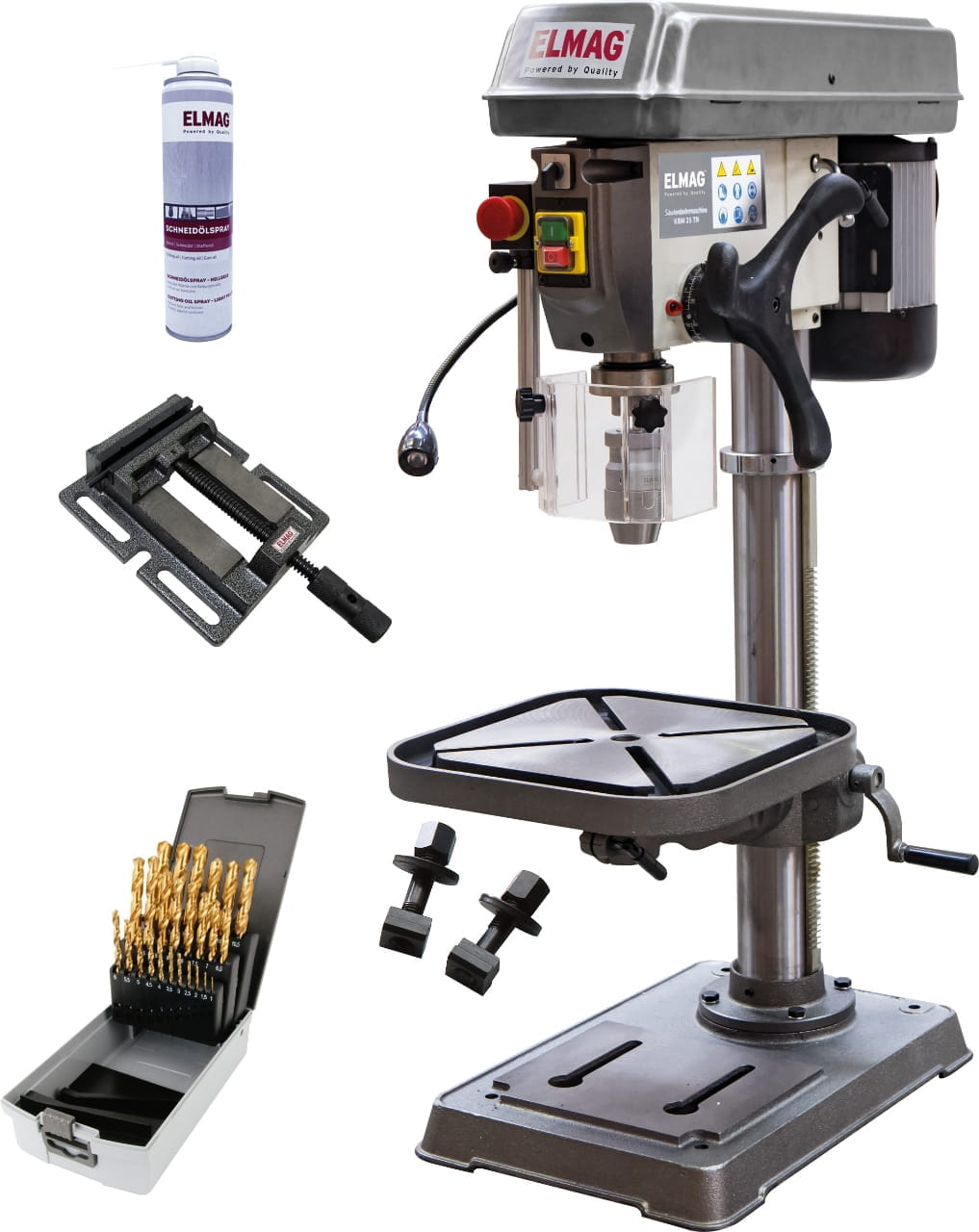

Elmag bench drill V-belt set - 1 - 16 mm / 400V / 1100W
€922.00
Prices exclude VAT.
Free shipping
Available, delivery time: 1-3 days
Product number:
BLE16035
Description
Elmag bench drill V-belt set - 1 - 16 mm / 400V / 1100W
-
Standard equipment
- Quick-action drill chuck B 16. 1 - 16 mm
- LED lighting
- R/L run
- Cone mandrel MK 3 / B 16
- Expulsion wedge
- Tool set
- Operating instructions / CE
Technical data
| Drilling performance in steel | 25 mm |
| Spindle holder (turning spindle) | MK 3 |
| Speed range | 100 - 2000 rpm |
| Speed levels | 16 |
| Quill stroke | 80 mm |
| Column diameter | 80 mm |
| T-slots, width | 16 mm |
| Drill table stroke | 360 mm |
| Spindle projection | 195 mm |
| Swivelling drill table | ± 45 ° |
| Rotatable drilling table | ± 180 ° |
| Quill distance table | 110 - 470 mm |
| Drilling table surface | 300x310 mm |
| Engine power | 1100 W |
| Mains connection | 400/50 V/Hz |
| Cubature | 300x310x680 mm |
| Base plate area (lxw) | 285x495 mm |
| Height (total) | 1150 mm |
| Weight | 72 kg |
-
Set equipment
- Drilling machine
- Machine vice 6' / 150 mm
- 2 clamping screws 16 mm
- HSS drill bit cassette 9-piece 14.5-30mm
- Cutting oil spray
