ELMAG battery storage system 10.8 kWh with hybrid inverter 10 kW – modular, parallel capable, incl. neoom BEAAM & NTUITY

ELMAG battery storage with hybrid inverter & BEAAM gateway - modular energy solution

TheELMAG battery storage with hybrid inverter is a powerful, modular energy storage system for private and commercial applications. Thanks to the flexible architecture with separate battery cubes, parallel operation of several systems and optional grid replacement function, the system is ideal for new builds as well as for retrofitting existing photovoltaic systems.

Modular & scalable system concept

• Parallel operation of several Kjuube storage systems possible for higher overall performance
• Flexible expansion of storage capacity with additional battery cubes
• Can also be used purely AC-coupled with an existing PV system
• High investment security thanks to future-proof system architecture

Structure & components

• Inverter and battery management system (BMS) integrated in the master cube housing

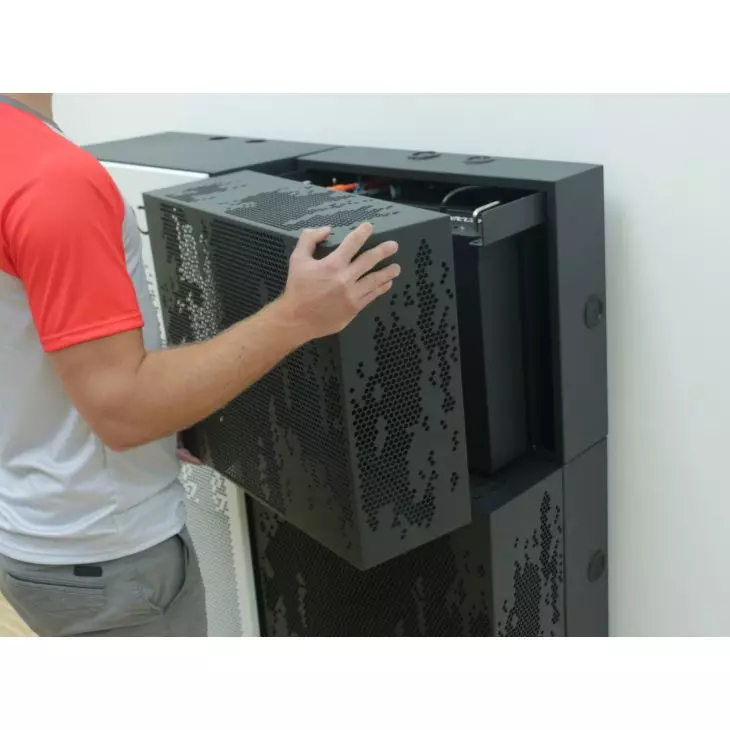

• Batteries housed in separate battery cabinets
• Optimum heat distribution and service-friendly design

Hybrid inverter with PV connection

• Hybrid inverter with 10 kW rated power
• Three-phase operation: 400 V / 50 Hz
• Direct PV connection available
• 2 integrated MPP trackers for maximum energy yield

Emergency power & mains backup function

• Optional mains backup switchover for emergency power operation
• Protection of important consumers in the event of a power failure
• Emergency power output up to 6 kW

Including BEAAM Gateway & NTUITY on board

• neoom BEAAM IoT gateway integrated as standard
• NTUITY energy management system on board
• Intelligent control, visualisation and optimisation of energy flows
• Remote monitoring and operation via app and WLAN

Interfaces & communication

• Modbus TCP/IP interface
• Smart Meter Modbus RTU RS485 included in the scope of delivery
• Seamless integration into energy management and building systems

Battery technology

• High-voltage DC battery system (HVDC)
• Lithium iron phosphate technology (LFP)
• High safety, thermal stability and long service life
• Up to 5000 cycles at 90 % depth of discharge (DoD)

Dimensions

• Master cube (HxWxD): 1440 × 561 × 350 mm
• Battery cabin (HxWxD): 480 × 561 × 350 mm

Technical data

• Inverter output: 10 kW
• Rated voltage: 3-phase 400 V / 50 Hz
• PV connection: Yes
• MPP tracker: 2
• Emergency power function: Optional (emergency power switchover)
• Emergency power output: 6 kW
• Net capacity: 10.8 kWh
• Battery type: HVDC - LFP
• Cycle stability: 5000 cycles at 90 % DoD
• Battery-Kjuubes: 2
• BEAAM Gateway & NTUITY: Included as standard
• Operation: App / WLAN
