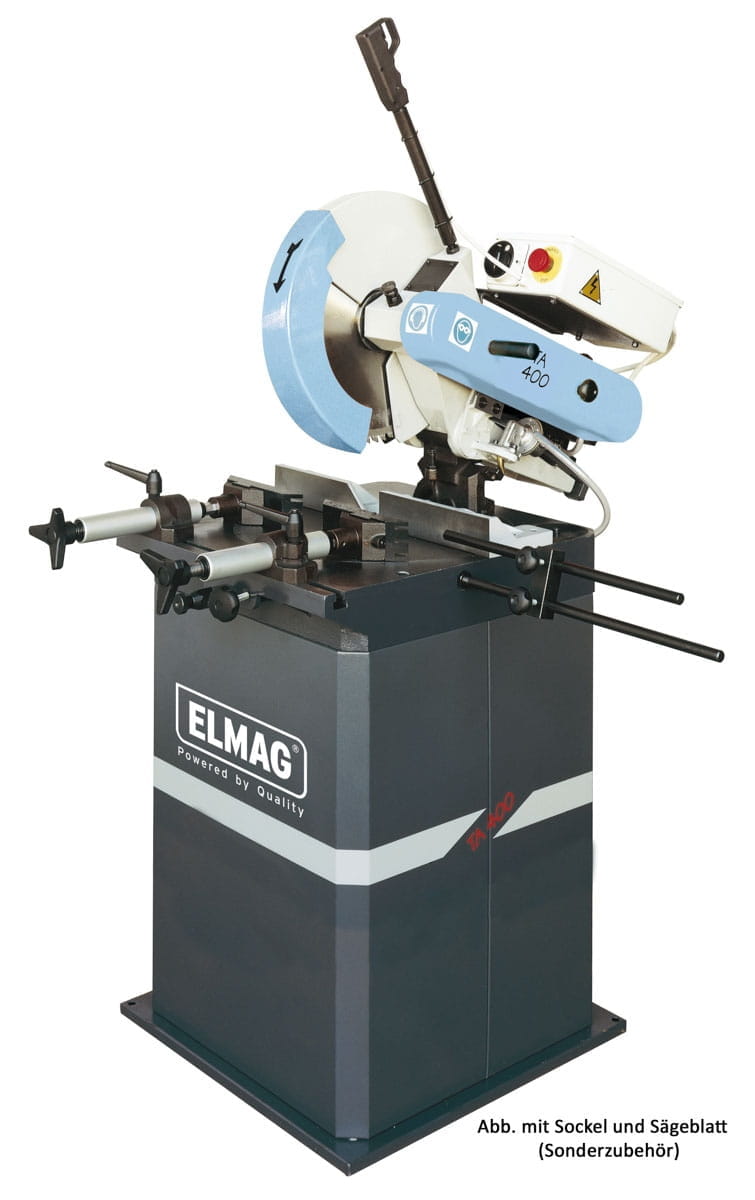

Elmag aluminum circular saw - max. 140mm
€3,500.00
Free shipping
Available, delivery time: 3-4 weeks
Description
Elmag aluminum circular saw - max. 140mm
Elmag aluminium circular saw - High-speed circular saw for aluminium & light metals
TheElmag aluminium circular saw is a powerful and precise High-speed metal circular sawspecially designed for the processing of Aluminium, light metal alloys and plastics was developed. With its powerful 2,200 W drive motor, a speed of 3,000 rpm and a robust saw blade with a diameter of saw blade with a diameter of 400 mm, it offers maximum precision and efficiency - ideal for trade, industry and craft.
The machine impresses with itsalmost burr-free cuts, its sturdy construction and comprehensive safety features. Thanks to the swivelling mitre cuts can be set easily and precisely thanks to the swivelling gear head plate, while the Teflon the Teflon clamping jaws ensure gentle material processing. A cooling system with diaphragm pump ensures optimum saw blade cooling, even in continuous operation.
Your advantages at a glance
- Precision: Virtually burr-free cuts thanks to high-quality bearings and stable construction.
- Powerful: 2,200 W motor power with 3,000 rpm.
- Flexible: Cutting angle continuously adjustable from -45° to +45°.
- Safe: Emergency stop, zero-voltage release and self-closing saw blade protection.
- Comfortable: Ergonomic operating lever with reset and permanent safety switch.
- For series production: High repeat accuracy with adjustable material stop and rod lock.
Standard equipment
- Material support with roller
- Bar stop with material stop
- Swivelling gear head plate with angle scale
- Adjustable cutting depth stop
- Manual material clamp & anti-burr workpiece holder
- Teflon clamping jaws for surface-friendly work
- High-performance belt drive
- Cooling system with diaphragm pump, dosing valve & return filter
- Self-closing saw blade guard & protective housing
- Emergency stop / zero-voltage release
- Tools, operating instructions, CE certification
Areas of application
- Light metal construction
- Facade and window construction
- Tinsmiths & insulation companies
- Mechanical and plant engineering
- Series cutting of aluminium profiles
Technical data - Elmag aluminium circular saw
| Round tube cutting range 0° | max. 140 mm |
| Round tube cutting range 45° | max. 130 mm |
| Square tube Cutting range 0° | max. 110 mm |
| Square tube cutting range 45° | max. 100 mm |
| Rectangular tube Cutting range 0° | max. 180 × 100 mm |
| Rectangular tube cutting range 45° | max. 150 × 100 mm |
| Saw blade outside diameter | 400 mm |
| Saw blade inside diameter | 32 mm |
| Vice clamping width | max. 220 mm |
| Cutting angle | 45° - 0° - 45° |
| Speed | 3,000 rpm |
| Engine power | 2.200 W |
| Mains connection | 400 V / 50 Hz |
| Runway inlet height | 860 mm |
| Length | 1500 mm |
| Width | 1000 mm |
| Height | 900 mm |
| Weight | 160 kg |
All data according to manufacturer Elmag. Errors and omissions excepted.
