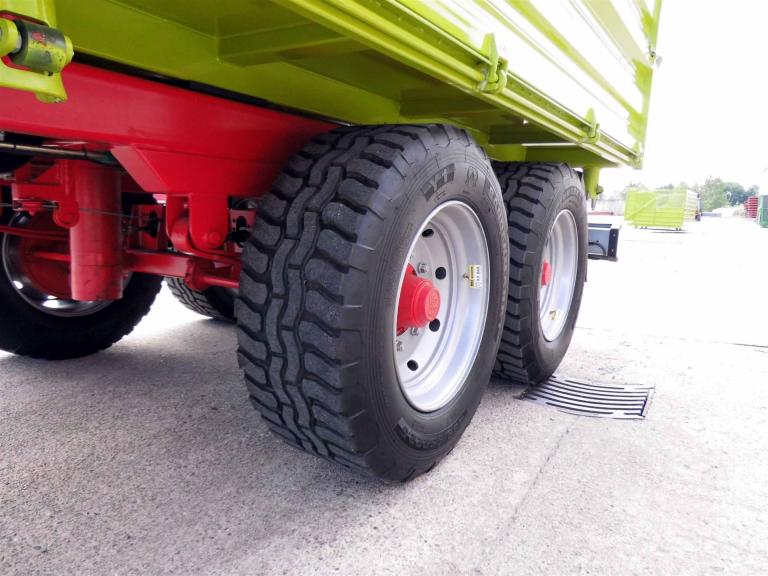

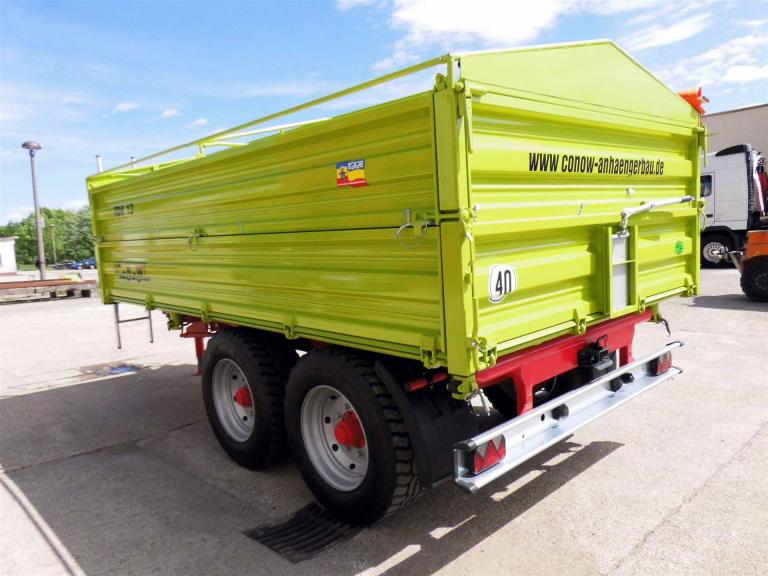

Conow tandem three-way tipper TDK 13
Description
Conow tandem three-way tipper TDK 13
|
Permissible total weight |
kg |
13.000 |
|
Optional registration |
km/h |
25 |
|
Total vehicle length |
approx. mm |
6400 |
|
Number of axles |
2 |
|
|
Axle |
Rigid axle unit |
|
|
Suspension |
parabolic suspension |
|
|
Track width |
mm |
1750 |
|
Drawbar load at the towing eye |
kg |
2000 |
|
Towing eye |
spring-loaded towing device |
|
|
Support foot |
standard |
hydraulically foldable |
|
option |
mechanically foldable |
|
|
Brake system |
2-wire air brake system |
|
|
Electrical system |
12 V |
|
|
Tyres |
Standard tyres |
385/55 R 22.5, RIGHT |
|
Tare weight |
kg |
4850 |
|
Chassis frame |
Standard |
stable welded construction made of high-quality hollow sections RR, ST 52 |
|
Body length outside/inside: |
mm |
4500 |
|
Body width outside/inside: |
mm |
2460 |
|
Body height outside/inside: |
mm |
1200 |
|
Volume |
approx. m³ |
12,83 |
|
Loading area height with standard tyres |
approx. mm |
1240 |
