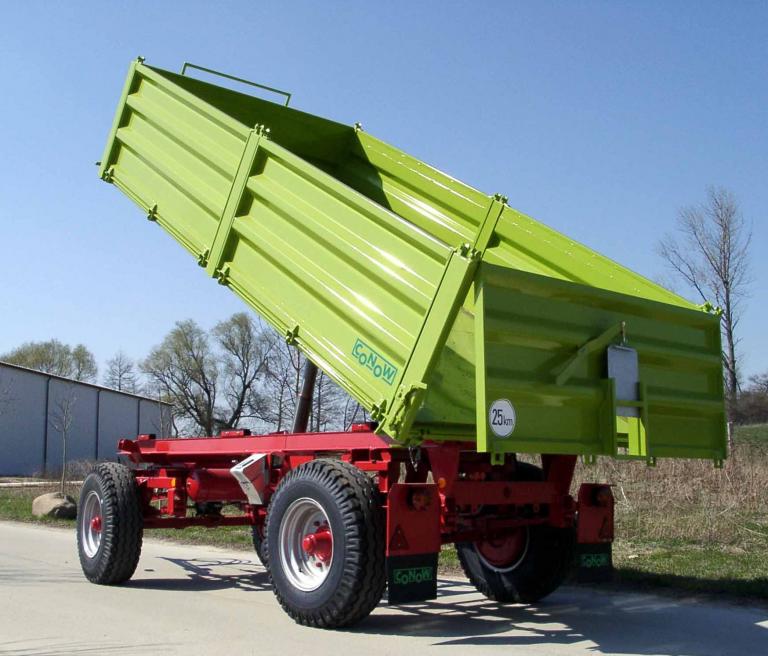

Conow HW 60 (9t) V2
Description
Conow HW 60 (9t) V2
Body
Bulk goods superstructure variant 2 with side wall height 94 cm tiltable left, right and rear
Central locking as standard
External tipper body dimensions L/W/H in mm: 4620 / 2430 / 940
Profiled, spot-welded drop sides
Reinforced tipper body, ST 52 load-bearing beams
Front wall firmly welded to the tipper body, left and right side with two pendulum drop sides, centre stanchion and central locking, rear wall as pendulum drop side with central locking, stable corner and centre stanchions. The locking elements of the central locking system are drop-forged and therefore of very high quality. The dropside seal guarantees rape tightness. One side can also be welded on request.
Colouring: conov green synthetic resin paint
Technical data
|
Chassis: |
8 tonnes gross vehicle weight |
|
Load volume: |
approx. 6.5 tonnes |
|
Maximum authorised speed: |
25 km/h or 40 km/h and 60 km/h, incl. Dekra approval |
Standard equipment
-
Track width: 1800 mm
-
Tyres: standard tyres 385/65 R 22.5, up to 80 km/h, other tyres at extra charge
-
Drawbar: (V-shape), 1800 mm long or 2150 mm
-
Axles: ADR axles
-
Brake system: Two-wire air brake system
-
Suspension: Combination of 10 mm leaf springs and rubber suspension with very good suspension behaviour when unloaded (the leaf springs are effective when unloaded, the rubber springs are also effective when loaded)
-
Chassis frame: reinforced, torsion-resistant frame as a welded construction made from UNP 120
-
Tipping cylinder: four-stage hydraulic cylinder
-
Turntable: ND 950
-
Lighting: 12 V
-
Colouring: primer (oxide red), chassis synthetic resin paint red RAL 3002, body synthetic resin paint conow green
