Conow HW 240 V9
Description

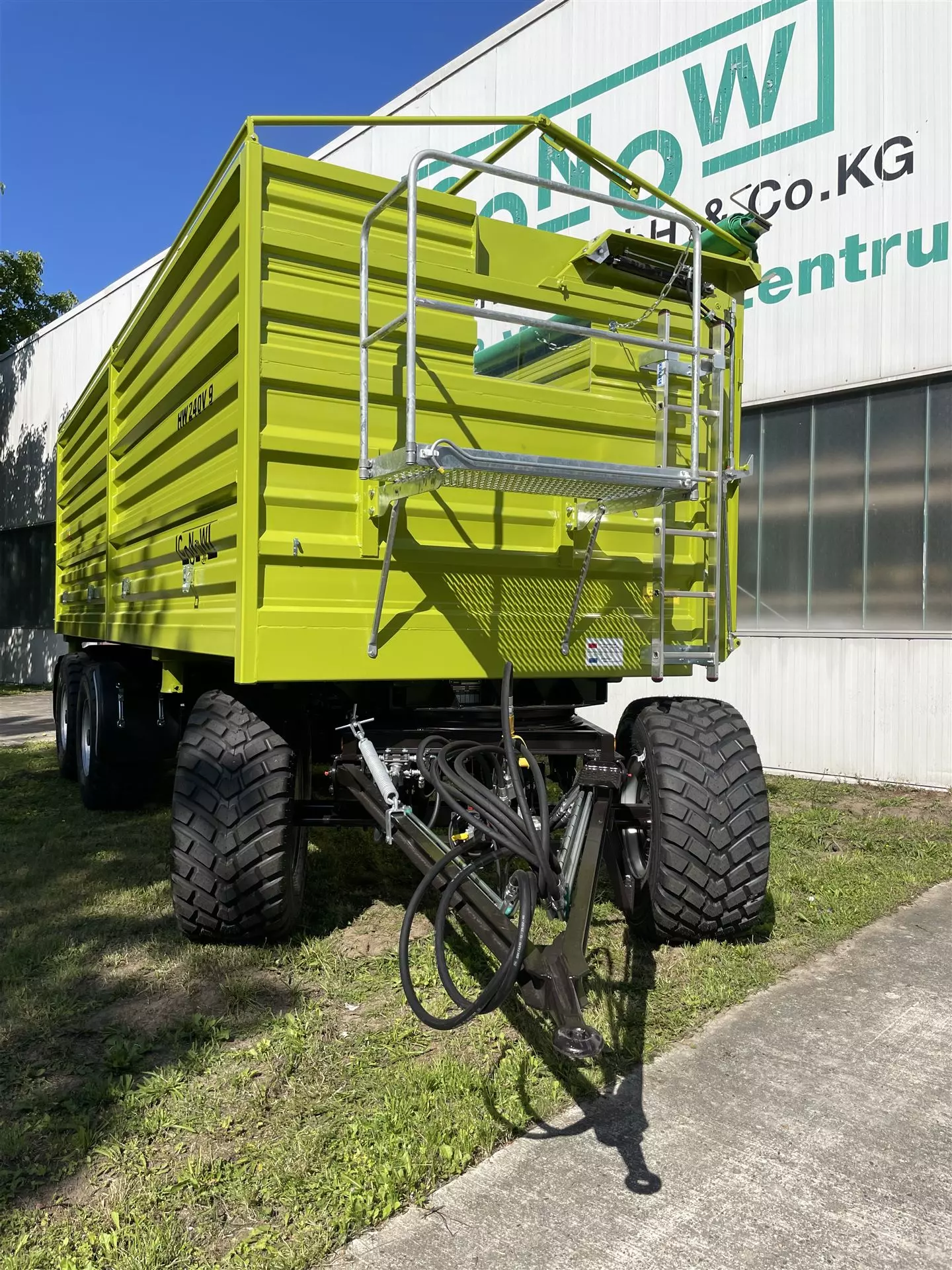

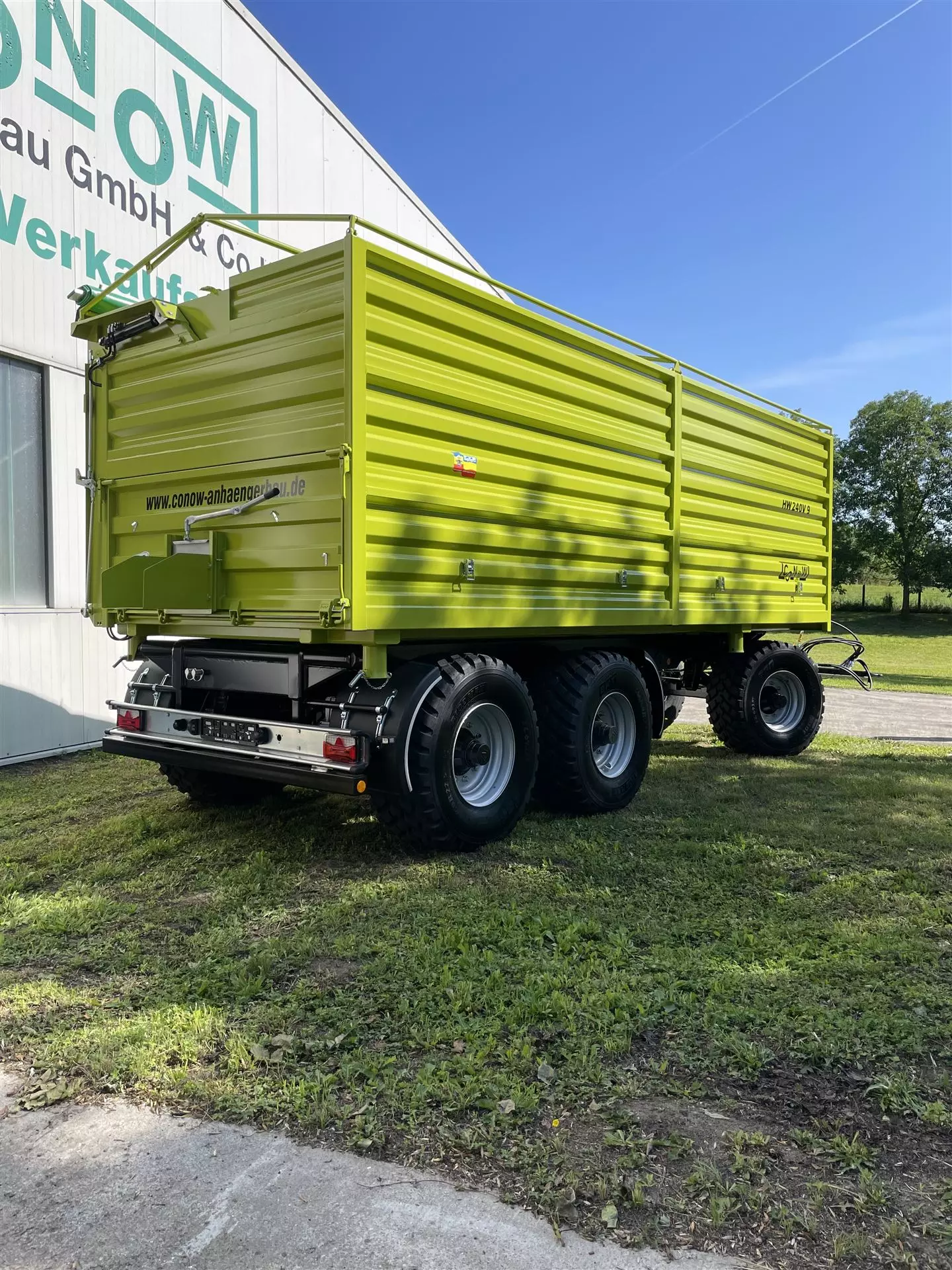

Conow HW 240 V9
The Conow HW240 impresses with its large loading volume. The wishes and suggestions of practitioners have been realised in every detail. Functional safety and ease of use were the determining factors. The ease of operation not only provides you with safety but also a high degree of efficiency. Large quantities need to be moved quickly and efficiently throughout the year, whether for fertilising, harvesting or internal operations. The more powerful the transport technology, the more efficient and economical the entire work process. The requirements are clear: large loading volume, quick and easy loading and unloading, simple operation. The Conow HW240 fulfils these requirements. See for yourself.
|
Chassis: |
24 tonnes gross vehicle weight |
|
Tyres: |
Standard tyres 385/65 R 22.5 RE, ZA profile |
|
Drawbar: |
(V-shape), 2150 mm long with height adjustment via spring and step |
|
Axles: |
BTW axles, 10-hole |
|
Brake system: |
Two-wire air brake system with automatic load-dependent brake adjustment (ALB) |
|
Chassis frame: |
Robust, solid frame, welded construction made of box sections in ST 52 |
|
Tilting bearings: |
4 ball tilting bearings, diameter 100 mm |
|
Tilt cylinder: |
1 hydraulic cylinder, stroke 2780 mm (required oil volume 40 litres) |
|
Suspension: |
Parabolic suspension |
|
Turntable: |
HE 12 L |
|
Lighting: |
12 V, rear lighting bracket |
|
Colour scheme: |
2-component primer and 2-component paint red RAL 3002 |
|
Body: |
Tipper body with hydraulic side wall or rear wall |
|
External dimensions L/W/H in mm: |
6900 x 2550 x 1600 |
-
Can be tilted to the left or rear
-
Profiled laser-welded drop sides
-
2-sided double-welded drop sides inside and outside,
-
Sealing inside 4-sided between upper/lower dropside
-
(sealing of the weld seams on the inside of the body using special sealing adhesive)
-
Front wall, firmly welded on the left and right,
-
Tensioning chain in the centre
-
Side wall or rear wall opens hydraulically upwards (V 9 principle)
-
Hydraulic side wall opening with double closing mechanism,
-
Rear wall grain-tight (2 x side and 4 x bottom locking hooks are automatically locked, extra strong central locking),
-
Side wall grain-tight (2 x side and 7 x bottom locking hooks are automatically locked, extra strong central locking),
-
Factory sealing
