Conow HW 180 (18t) V4.2.3
Description

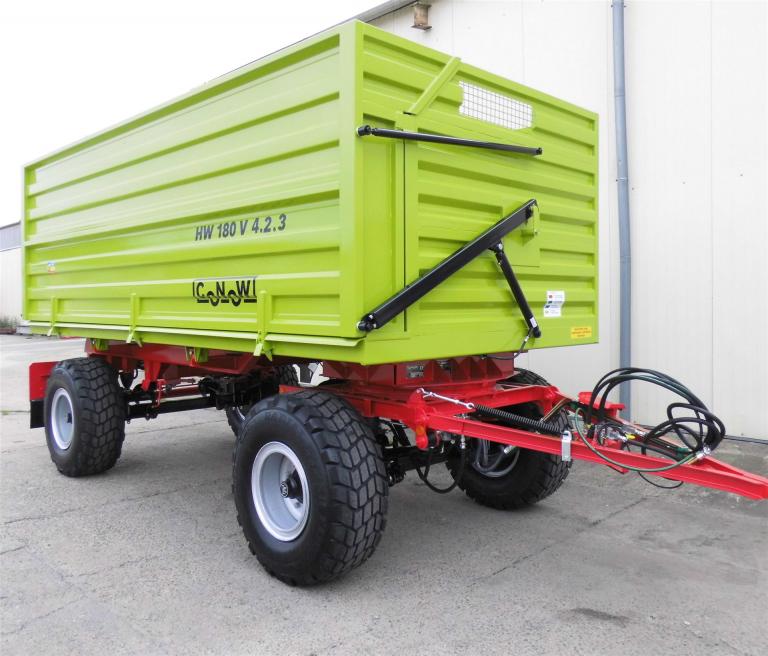

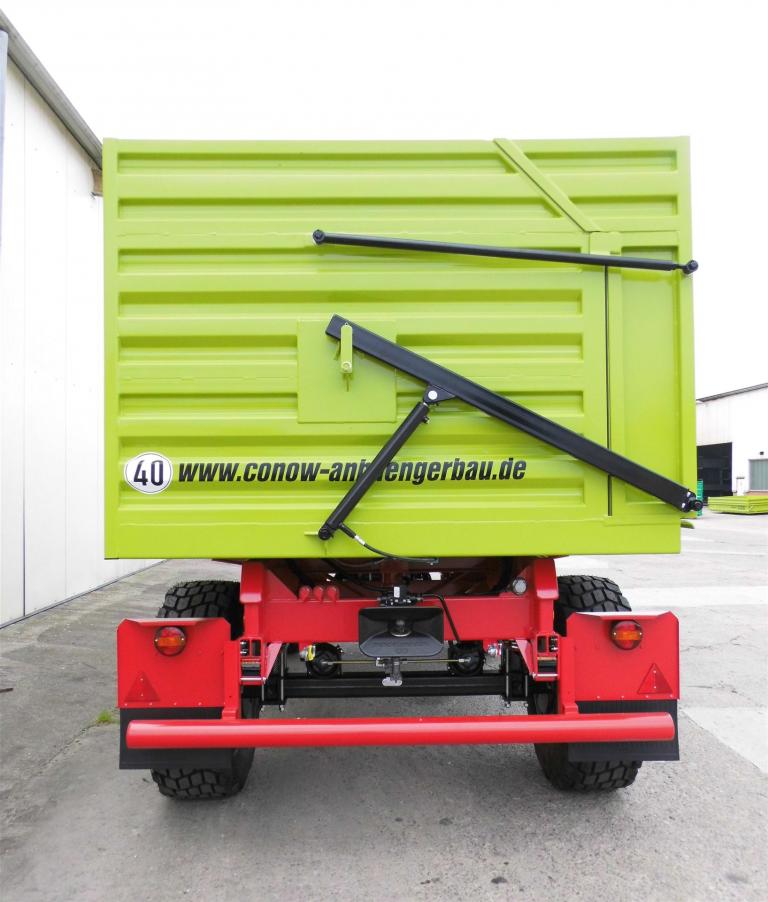

Conow HW 180 (18t) V4.2.3
The Conow HW180 series is impressive. The wishes and suggestions of practitioners have been realised in every detail. Functional safety and ease of use were the determining factors. The ease of operation not only provides you with safety but also a high degree of efficiency. Large quantities need to be moved quickly and efficiently throughout the year, whether for fertilising, harvesting or internal operations. The more powerful the transport technology, the more efficient and economical the entire work process. The requirements are clear: large loading volume, quick and easy loading and unloading, simple operation. The Conow HW180 series fulfils these requirements. See for yourself.
Technical data
|
Chassis: |
18 tonnes gross vehicle weight |
|
Loading volume: |
19,4 m³ |
|
Maximum authorised speed: |
25, 40 or 60 km/h, incl. Dekra approval |
Standard equipment
-

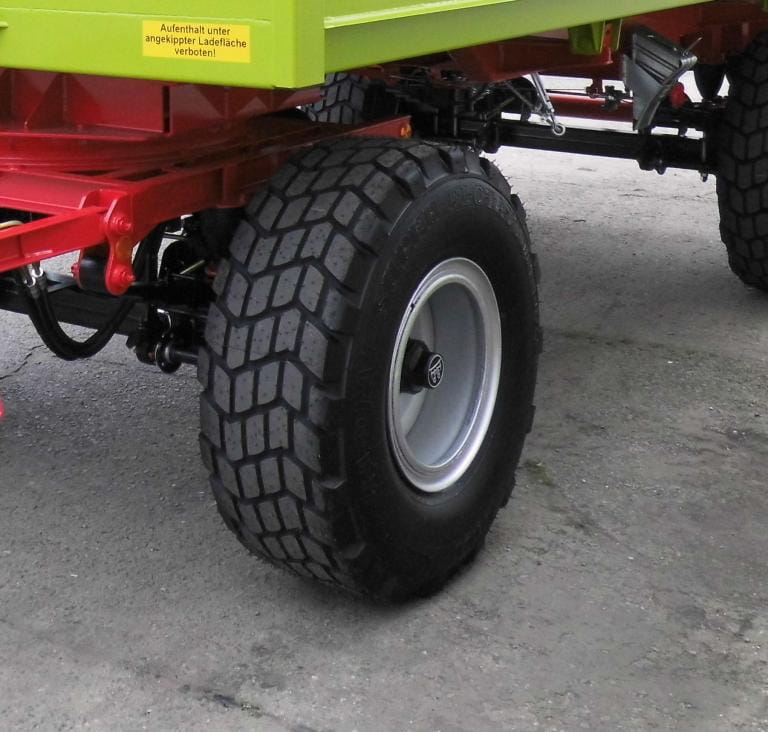

Tyres: standard tyres 385/65 R 22.5 up to 80 km/h, other tyres at extra charge
-
Drawbar: (V-shaped), 1800 mm long or 1 x 1500 mm and 1 x 1800 mm when travelling in a train
-
Axles: Bergische axles (BPW), 120 x 10, axle load 9000 kg
-
Brake system: Two-wire pneumatic brake system with automatic load-dependent brake adjustment (ALB)
-
Suspension: Combination of 12 mm leaf springs and rubber suspension with very good suspension behaviour when unladen (the leaf springs are effective when unladen and the rubber springs are also effective when laden)
-

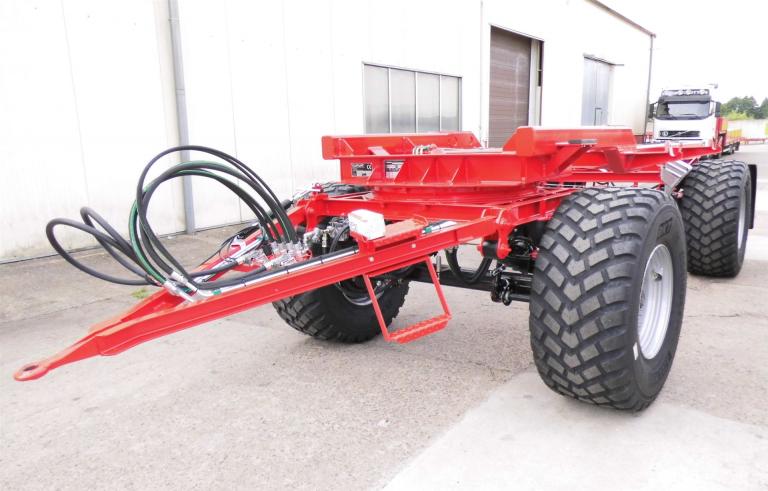

Chassis frame: robust, solid frame, welded construction made of box section 180 x 100 x 8 mm, ST 52
-
Tilt bearings: 4 reinforced tilt bearings
-
Tipping cylinders: 2 3-stage hydraulic cylinders, each with a load capacity of 11.7 tonnes in stage 1, type D-200-3x250 and flow divider
-
Slewing ring: HE 12 L with a very high axial load
-
Lighting: 12 V
-
Colour scheme: Light ivory primer, chassis 2-component paint red RAL 3002, body 2-component paint cono green
Manufacturer
Conow Anhängerbau
Deutschlands größter Hersteller von HW 60 und HW 80 Anhängern und Aufbauten.
