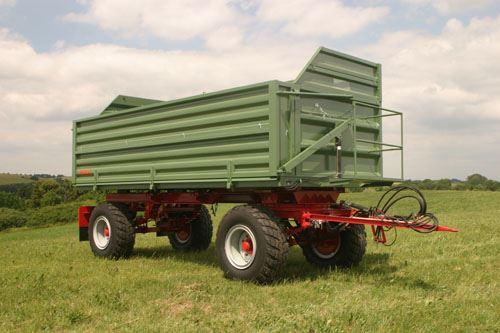

Conow HW 180 (18t) V4.2
Description
Conow HW 180 (18t) V4.2
The Conow HW180 series is impressive. The wishes and suggestions of practitioners have been realised in every detail. Functional safety and ease of use were the determining factors. In addition to safety, the ease of operation also ensures a high degree of efficiency. Large quantities need to be moved quickly and efficiently throughout the year, whether for fertilising, harvesting or internal operations. The more powerful the transport technology, the more efficient and economical the entire work process. The requirements are clear: large loading volume, quick and easy loading and unloading, simple operation. The Conow HW180 series fulfils these requirements. See for yourself.
-
Combi body variant 4.2 with dropside height 140 cm, can be tilted left or right
-
Dropside opening via kinematics as standard
-
External tipper body dimensions L/W/H in mm: optionally 5200 / 2550 / 1400 for individual operation or to comply with the 18 m when travelling in a train: 4850 / 2550 / 1400
-
Tipping bridge with combined body suitable for transporting chaff and grain
-
Front and rear wall (2 mm each) firmly welded to the tipper body, welded side (2.5 mm) without centre stanchion, the tiltable side wall (2.5 mm thick, QSTE 380) can be opened over the entire surface via kinematics, with 3 x locking and 2 x safety catches, factory sealing of the tiltable side wall in the lower area and on the sides
-
Colour: 2-component conov green paint
Technical data
|
Chassis: |
18 t gross vehicle weight |
|
Load volume: |
13.2 t to 13.5 t (depending on equipment) |
|
Maximum authorised speed: |
25, 40 or 60 km/h, incl. Dekra approval |
Standard equipment
-
Tyres: standard tyres 385/65 R 22.5 up to 80 km/h, other tyres at extra charge
-
Drawbar: (V-shaped), 1800 mm long or 1 x 1500 mm and 1 x 1800 mm when travelling in a train
-
Axles: Bergische axles (BPW), 120 x 10, axle load 9000 kg
-
Brake system: Two-wire pneumatic brake system with automatic load-dependent brake adjustment (ALB)
-
Suspension: Combination of 12 mm leaf springs and rubber suspension with very good suspension behaviour when unladen (the leaf springs are effective when unladen and the rubber springs are also effective when laden)
-
Chassis frame: robust, solid frame, welded construction made of box section 180 x 100 x 8 mm, ST 52
-
Tilt bearings: 4 reinforced tilt bearings
-
Tilt cylinders: 2 3-stage hydraulic cylinders, each with 11.7 tonnes load capacity in stage 1, type D-200-3x250
-
Slewing ring: HE 12 L with a very high axial load
-
Lighting: 12 V
-
Colour scheme: Light ivory primer, chassis 2-component paint red RAL 3002, body 2-component paint cono green
