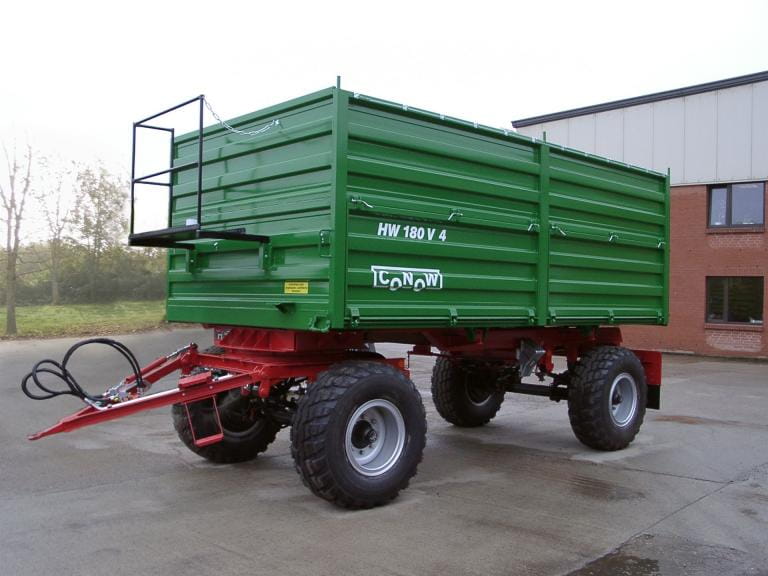

Conow HW 180 (18t) V4
Description
Conow HW 180 (18t) V4
The Conow HW180 series is impressive. The wishes and suggestions of practitioners have been realised in every detail. Functional safety and ease of use were the determining factors. The ease of operation not only provides you with safety but also a high degree of efficiency. Large quantities need to be moved quickly and efficiently throughout the year, whether for fertilising, harvesting or internal operations. The more powerful the transport technology, the more efficient and economical the entire work process. The requirements are clear: large loading volume, quick and easy loading and unloading, simple operation. The Conow HW180 series fulfils these requirements. See for yourself.
Technical data
|
Chassis: |
18 tonnes gross vehicle weight |
|
Loading volume: |
19,4 t |
|
Maximum authorised speed: |
25, 40 or 60 km/h, incl. Dekra approval |
Standard equipment
-

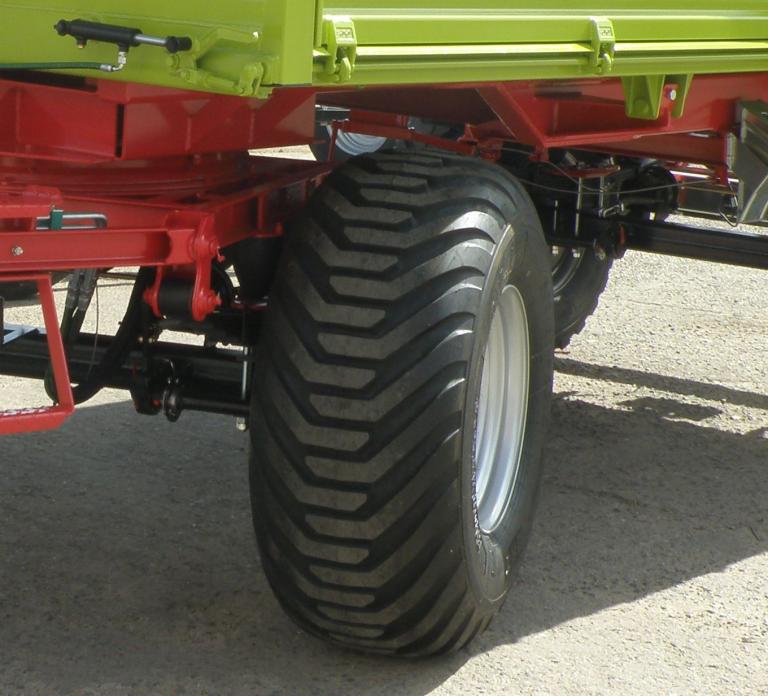

Tyres: standard tyres 385/65 R 22.5 up to 80 km/h, other tyres at extra charge
-

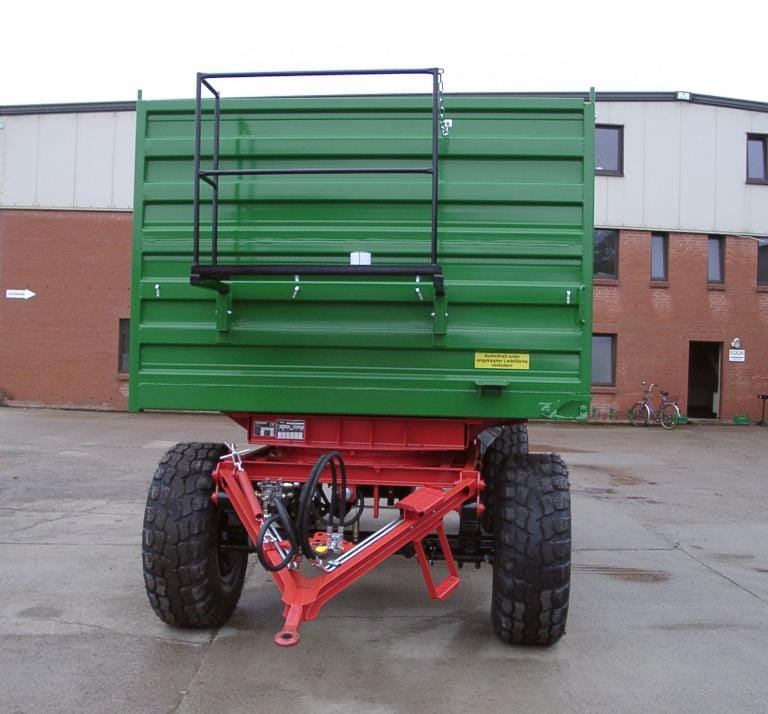

Drawbar: (V-shaped), 1800 mm long or 1 x 1500 mm and 1 x 1800 mm when travelling in a train
-
Axles: Bergische axles (BPW), 120 x 10, axle load 9000 kg
-
Brake system: Two-wire pneumatic brake system with automatic load-dependent brake adjustment (ALB)
-
Suspension: Combination of 12 mm leaf springs and rubber suspension with very good suspension behaviour when unladen (the leaf springs are effective when unladen, the rubber springs are also effective when laden)
-
Chassis frame: robust, solid frame, welded construction made of box section 180 x 100 x 8 mm, ST 52
-
Tilt bearings: 4 reinforced tilt bearings
-
Tilt cylinders: 2 3-stage hydraulic cylinders, each with 11.7 tonnes load capacity in stage 1, type D-200-3x250
-
Slewing ring: HE 12 L with a very high axial load
-
Lighting: 12 V
-
Colour scheme: Light ivory primer, chassis 2-component paint red RAL 3002, body 2-component paint cono green
-
Bulk goods body variant 4 with dropside height 160 cm tiltable left and right
-
Swivel drop sides with centre stanchion and central locking system
-
External tipper body dimensions L/W/H in mm: optionally 5200 / 2460/ 1600 for individual operation or to maintain the 18 m when travelling in a train: 4850 / 2460/ 1600
-
Profiled, laser-welded drop sides, 2.5 mm thick, two full-length pendulum drop sides on the left and right with centre stanchion and central locking, full-length welded drop sides at the front and rear
-
Factory sealing using Tecoband
-
Colour: 2-component cono green paint
