Conow HW 180 (18t) V 4.1.2
Description
Conow HW 180 (18t) V 4.1.2
The Conow HW180 series is impressive. The wishes and suggestions of practitioners have been realised in every detail. Functional safety and ease of use were the determining factors. The ease of operation not only provides you with safety but also a high degree of efficiency. Large quantities need to be moved quickly and efficiently throughout the year, whether for fertilising, harvesting or internal operations. The more powerful the transport technology, the more efficient and economical the entire work process. The requirements are clear: large loading volume, quick and easy loading and unloading, simple operation. The Conow HW180 series fulfils these requirements. See for yourself.
Technical data
|
Chassis: |
18 tonnes gross vehicle weight |
|
Loading volume: |
13.2 t to 13.5 t (depending on equipment) |
|
Maximum authorised speed: |
25, 40 or 60 km/h, incl. Dekra approval |
Standard equipment
-
Tyres: standard tyres 385/65 R 22.5 up to 80 km/h, other tyres at extra charge
-
Drawbar: (V-shaped), 1800 mm long or 1 x 1500 mm and 1 x 1800 mm when travelling in a train
-
Axles: Bergische axles (BPW), 120 x 10, axle load 9000 kg
-
Brake system: Two-wire pneumatic brake system with automatic load-dependent brake adjustment (ALB)
-
Suspension: Combination of 12 mm leaf springs and rubber suspension with very good suspension behaviour when unladen (the leaf springs are effective when unladen, the rubber springs are also effective when laden)
-
Chassis frame: robust, solid frame, welded construction made of box section 180 x 100 x 8 mm, ST 52
-
Tilt bearings: 4 reinforced tilt bearings
-
Tilt cylinders: 2 3-stage hydraulic cylinders, each with 11.7 tonnes load capacity in stage 1, type D-200-3x250
-
Slewing ring: HE 12 L with a very high axial load
-
Lighting: 12 V
-
Colour scheme: Light ivory primer, chassis 2-component paint red RAL 3002, body 2-component paint cono green
-
Combi body variant 4.1.2 with dropside height 140 cm, can be tilted left or right
-

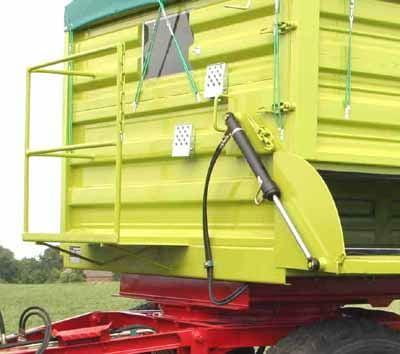

Hydraulic dropside opening of the lower side dropside
-
External tipper body dimensions L/W/H in mm: optionally 5200/2550/1400 for single operation or to comply with the 18 m when travelling in a train: 4850/2550/1400
-
Profiled, laser-welded drop sides, 2.5 mm thick, QSTE 380, front, rear and welded side are each continuous drop sides and firmly welded to the tipper body, the side to be opened is equipped with an upper swinging drop side and lower drop side with hydraulic drop side opening for opening and closing
-
Possible heights of the lower dropside: 400 or 500 mm, the hydraulic dropside opening consists of two hydraulic cylinders with weld-on bolts and 1 set of hydraulic hoses. The lower dropside is fitted with a lateral guide segment at both ends as a boundary to achieve forced guidance of the load when tipping to a receiving trough. This design is particularly suitable for tipping root crops and grain into receiving troughs.
-
Factory sealing in the area of the lower dropside to the tipper body, laterally by means of Tecoband
-
Colour: 2-component conov green paint
