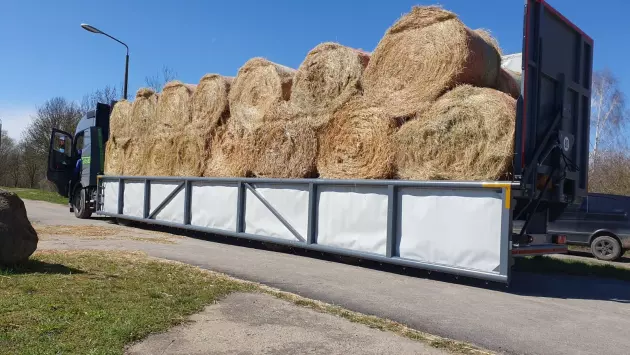

Conow bale transport wagon BTW 29 V9 – 29 t bale wagon with hydraulic locking mechanism
Description
Conow bale transport wagon BTW 29 V9 – 29 t bale wagon with hydraulic locking mechanism
Technical description - Conow BTW 29 V9 bale transport trolley
The Conow BTW 29 V9 bale transport trailer is a powerful semi-trailer for professional agricultural use. for professional agricultural use. With an impressive payload capacity payload capacity and modern safety technology, this trailer has been specially designed for high transport volumes, fast road journeys and maximum operational safety. maximum operational safety. The hydraulic locking system ensures that the load is held securely in place, even under demanding conditions.
Technical data
- Permissible total weight: 29,000 kg
- Speed: up to 80 km/h (with suitable tyres, incl. DEKRA approval)
- Drawbar load: 11 tonnes
- Total vehicle length: approx. 13,350 mm
- Number of axles: 2
- Suspension: Air suspension
- Track width: 2000 mm
- Drawbar eye / drawbar: Kingpin
- Brake system: 2-wire air brake system with EBS
- Electrical system: 24 V LED lighting
Tyres
- Standard tyres: 425/65 R 22.5 - road profile groove, rim 14.00x22.5
- Further tyre options available on request
Weights & dimensions
- Own weight: approx. 7,000 - 7,300 kg
- Robust large-profile welded construction for maximum service life
Colouring
- Standard: Semi-trailer panel in iron grey, body in RAL colour of your choice
- Further colour options optionally available
Special equipment features
- Hydraulic locking mechanism for secure bale hold
- Suitable for high travelling speeds of up to 80 km/h
- Air suspension for optimum ride comfort and stability
- Modern EBS braking system for maximum safety
- Optional mounting system available
The Conow BTW 29 V9 is the ideal solution for companies that want maximum efficiency, safety and transport capacity for long distances or intensive transport tasks. transport tasks.
Manufacturer
Conow Anhängerbau
Deutschlands größter Hersteller von HW 60 und HW 80 Anhängern und Aufbauten.
